Description
Technical Data
Casting Material : AISI304 - DIN 1.4301
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

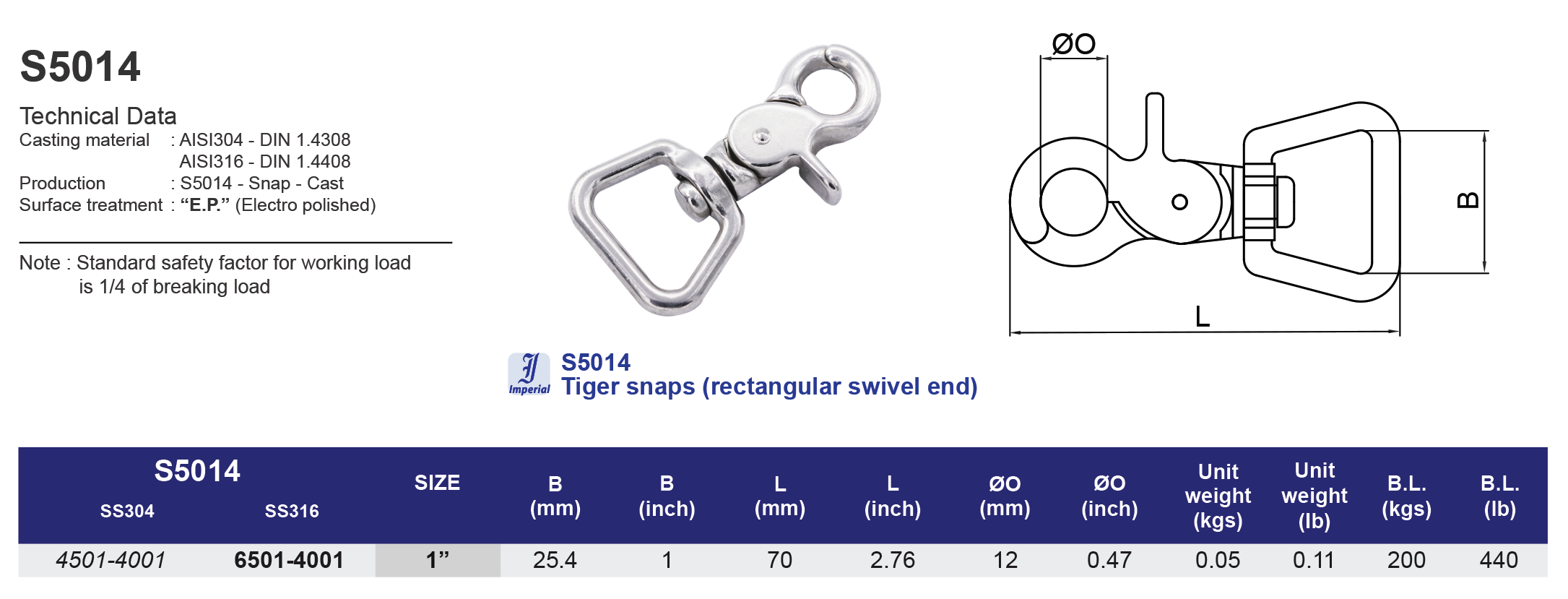

Model
S5014
Tiger snaps (rectangular swivel end)
304 ss
| SS304 | Size | B (mm) | L (mm) | ØO (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 4501-4001 | 1" | 25.4 | 70 | 12 | 0.05 | 200 |
| SS304 | Size | B (inch) | L (inch) | ØO (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 4501-4001 | 1" | 1.00 | 2.76 | 0.47 | 0.11 | 440 |
