Description
Technical Data
Casting Material : AISI304 - DIN 1.4308
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished) Note : Standard safety factor for working load is 1/4 of breaking load

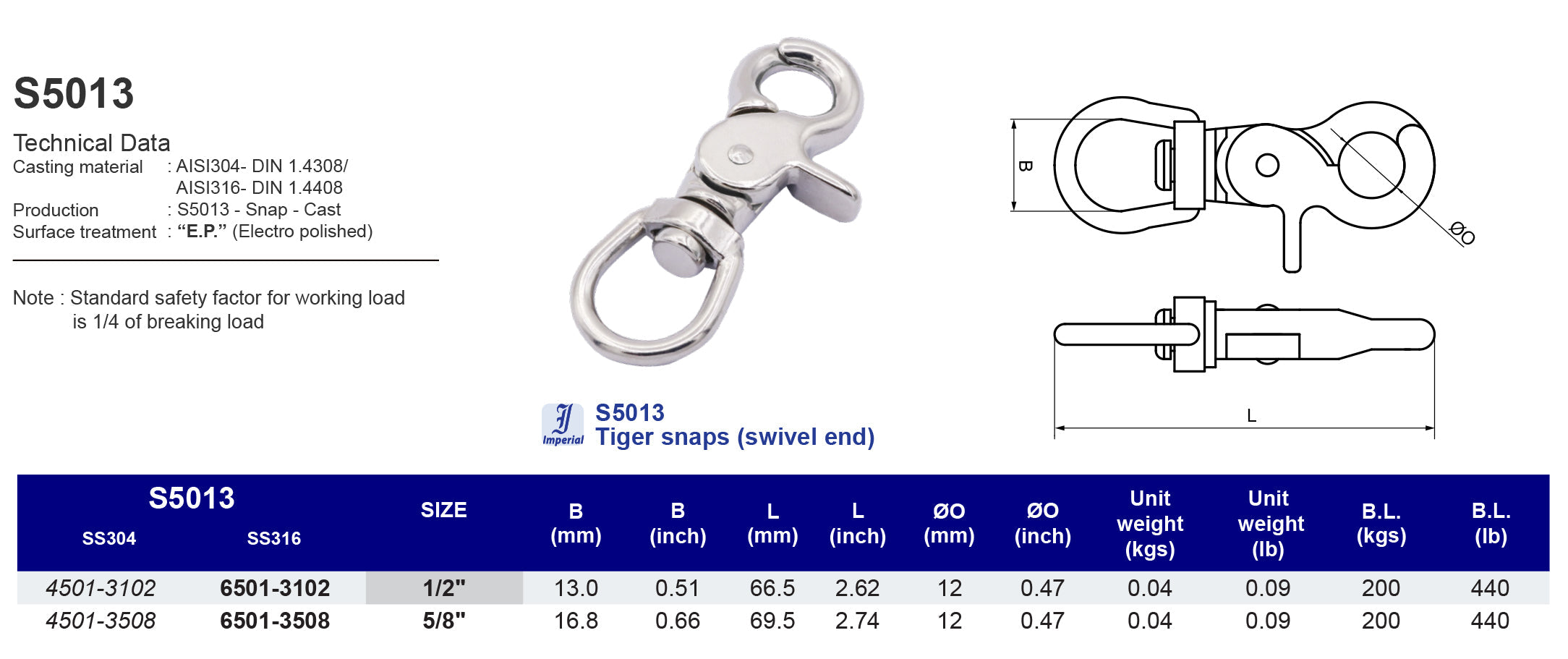

Model
S5013

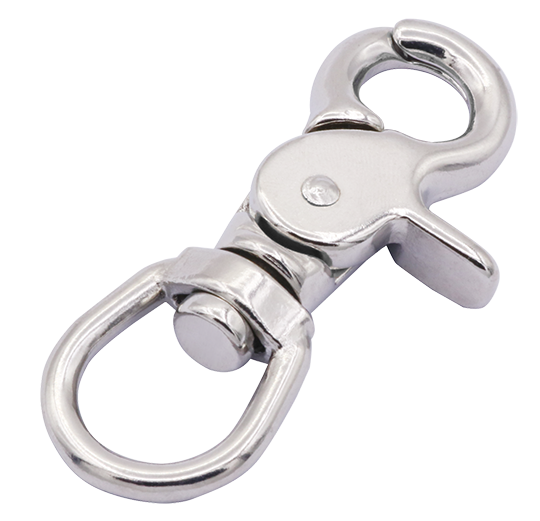

Tiger snaps (swivel end)
304 ss
| SS304 | Size | B (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 45013102 | 1/2" | 13.0 | 66.5 | 12 | 0.04 | 200 |
| 45013508 | 5/8" | 16.8 | 69.5 | 12 | 0.04 | 200 |
| SS304 | Size | B (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 45013102 | 1/2" | 0.51 | 2.62 | 0.47 | 0.09 | 440 |
| 45013508 | 5/8" | 0.66 | 2.74 | 0.47 | 0.09 | 440 |
