Description

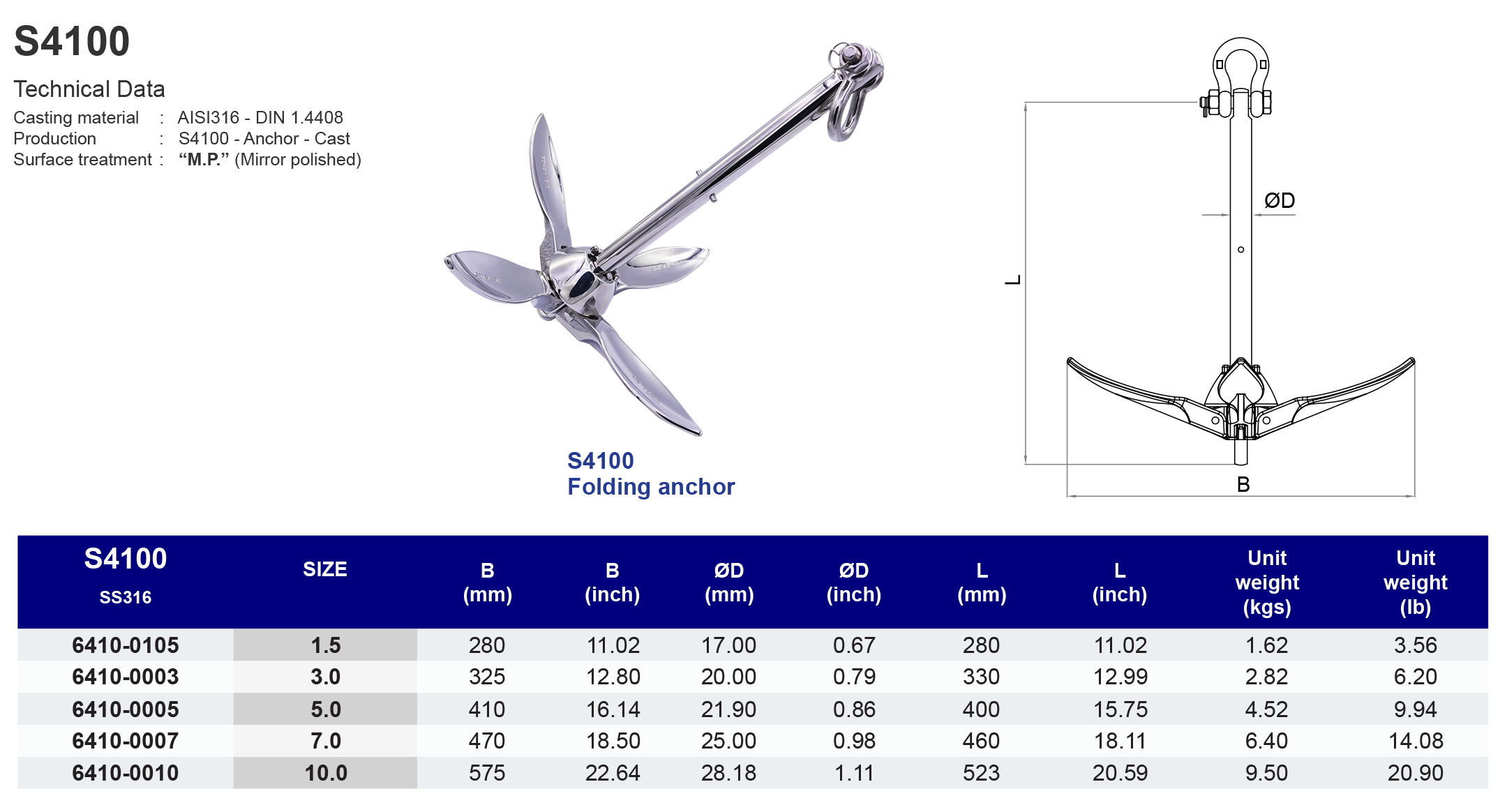

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S4100 - Anchor - Cast
Surface Treatment:“M.P.” (Mirror polished) DATA SHEET DOWNLOAD
Model
S4100

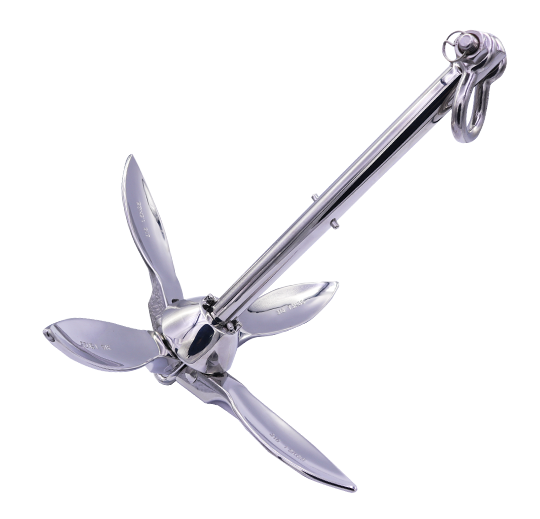

Folding anchor
316 ss
| SS316 | SIZE (kgs) | B (mm) | ØD (mm) | L (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 64100105 | 1.5 | 280 | 17 | 280 | 1.62 |
| 64100003 | 3 | 325 | 20 | 330 | 2.82 |
| 64100005 | 5 | 410 | 21.9 | 400 | 4.52 |
| 64100007 | 7 | 470 | 25 | 460 | 6.40 |
| 64100010 | 10 | 575 | 28.18 | 523 | 9.50 |
| SS316 | SIZE (lb) | B (inch) | ØD (inch) | L (inch) | Unit weight (lb) |
|---|---|---|---|---|---|
| 64100105 | 3.3 | 11.02 | 0.67 | 11.02 | 3.56 |
| 64100003 | 6.6 | 12.80 | 0.79 | 12.99 | 6.2 |
| 64100005 | 11 | 16.14 | 0.86 | 15.75 | 9.94 |
| 64100007 | 15.4 | 18.50 | 0.98 | 18.11 | 14.08 |
| 64100010 | 22 | 22.64 | 1.11 | 20.59 | 20.9 |
