Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S4015 - Cleat - Cast
Surface Treatment: “E.P.” (Electro polished) DATA SHEET DOWNLOAD
Model
S4015

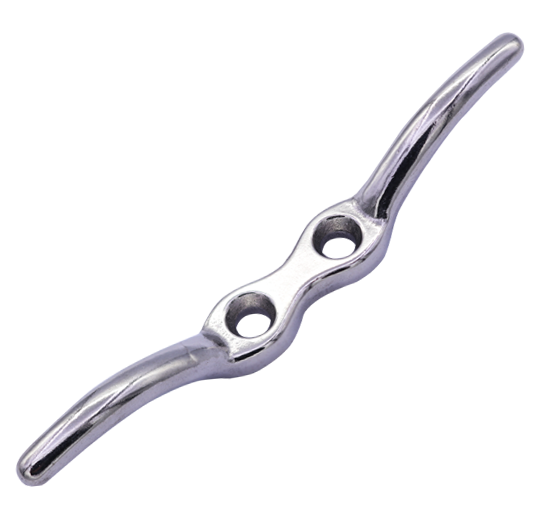

Rope cleat
316 ss
| SS316 | SIZE | L (mm) | ØS (mm) | Unit weight (kgs) |
|---|---|---|---|---|
| 64015212 | 2.1/2" | 68 | 4.5 | 0.01 |
| 64015412 | 4.1/2" | 114 | 5.8 | 0.04 |
| 64015006 | 6" | 150 | 6.7 | 0.08 |
| SS316 | SIZE | L (inch) | ØS (inch) | Unit weight (lb) |
|---|---|---|---|---|
| 64015212 | 2.1/2" | 2.68 | 0.18 | 0.02 |
| 64015412 | 4.1/2" | 4.49 | 0.23 | 0.09 |
| 64015006 | 6" | 5.91 | 0.26 | 0.18 |
