Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S392 - Cap - Cast
Surface Treatment: “M.P.” (Mirror polished)
Model
S392

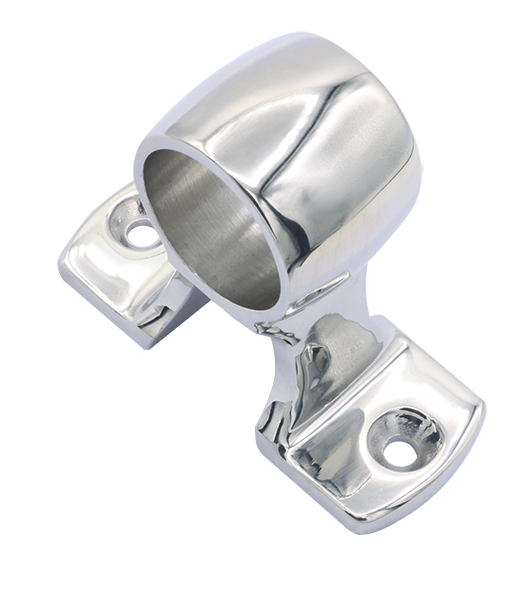

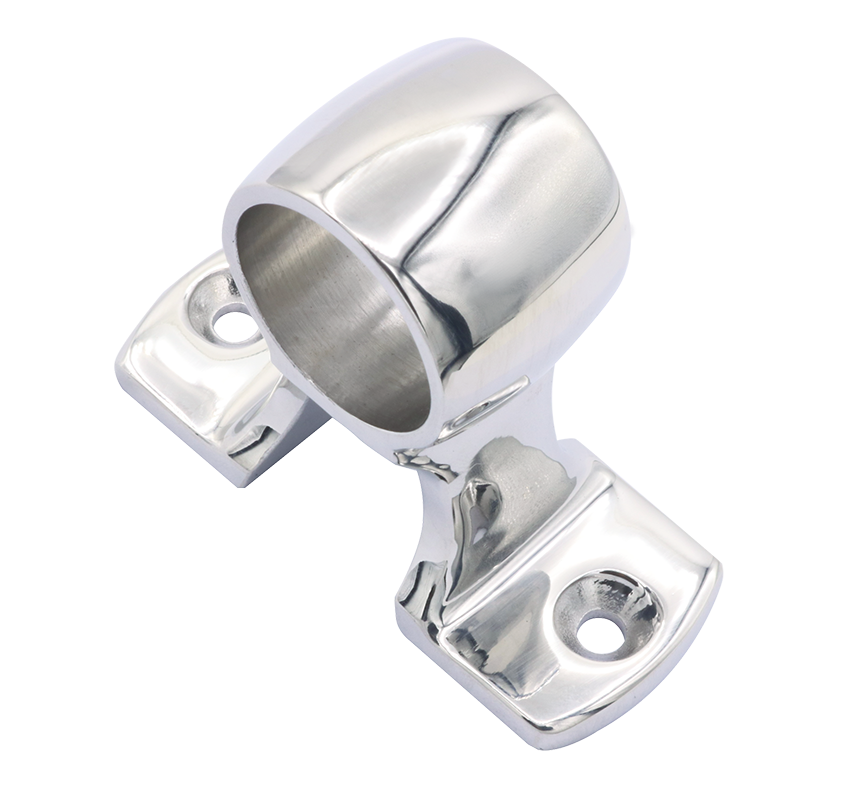

Rail fitting (central cap)
316 ss
![Kinzi 316 Kinzi 316](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/316-ss.png)
![S392 drawing S392 drawing](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S392_DiagramV1.png)
![S392 image S392 image](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S392_ImageV1.png)

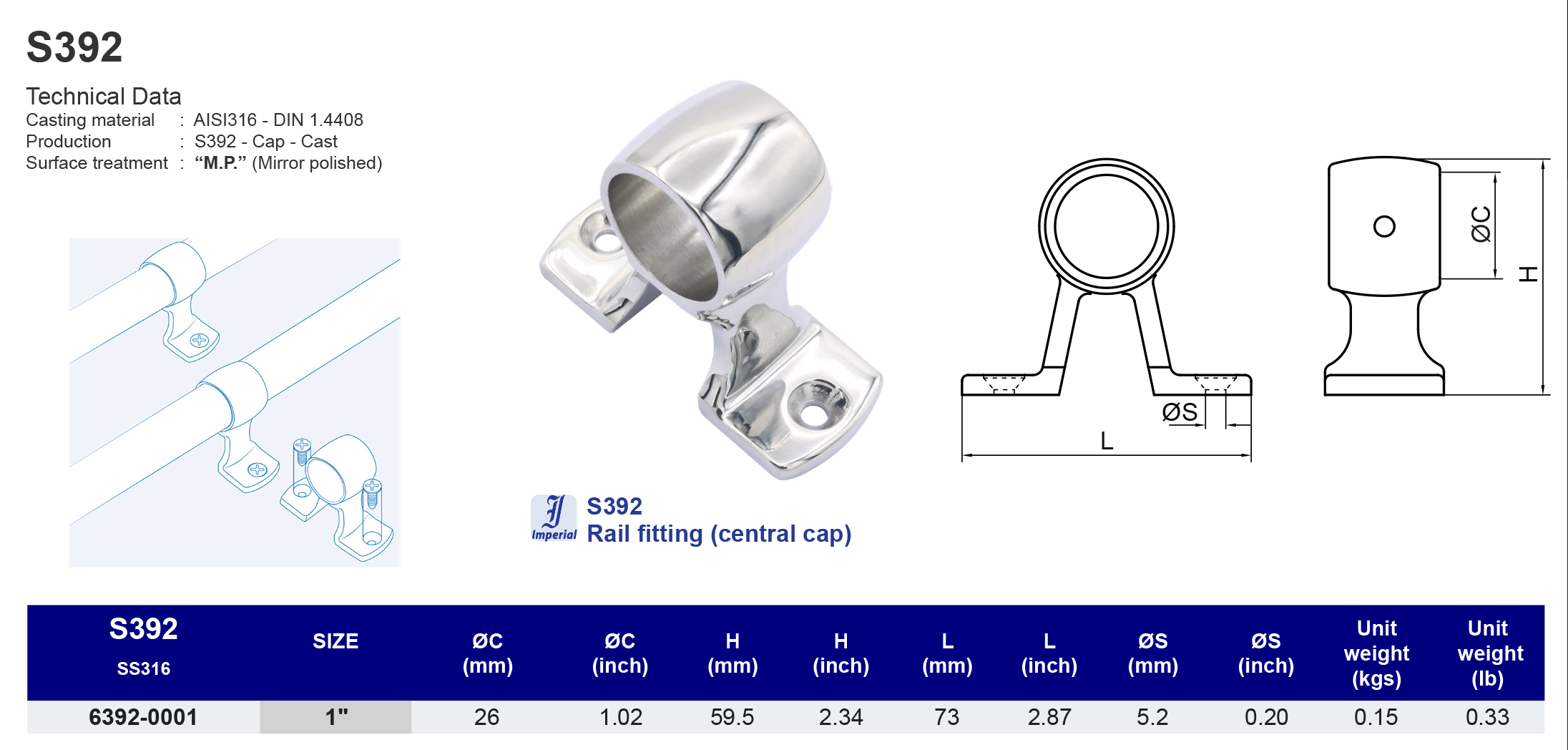

SS316 | SIZE | ØC (mm) | H (mm) | L (mm) | ØS (mm) | Unit weight (kgs) |
---|---|---|---|---|---|---|
63920001 | 1" | 26 | 59.5 | 73 | 5.2 | 0.15 |
SS316 | SIZE | ØC (inch) | H (inch) | L (inch) | ØS (inch) | Unit weight (lb) |
---|---|---|---|---|---|---|
63920001 | 1" | 1.02 | 2.34 | 2.87 | 0.20 | 0.33 |
