Technical Data
Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Production : Shackle - Cast , Pin - Forged
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

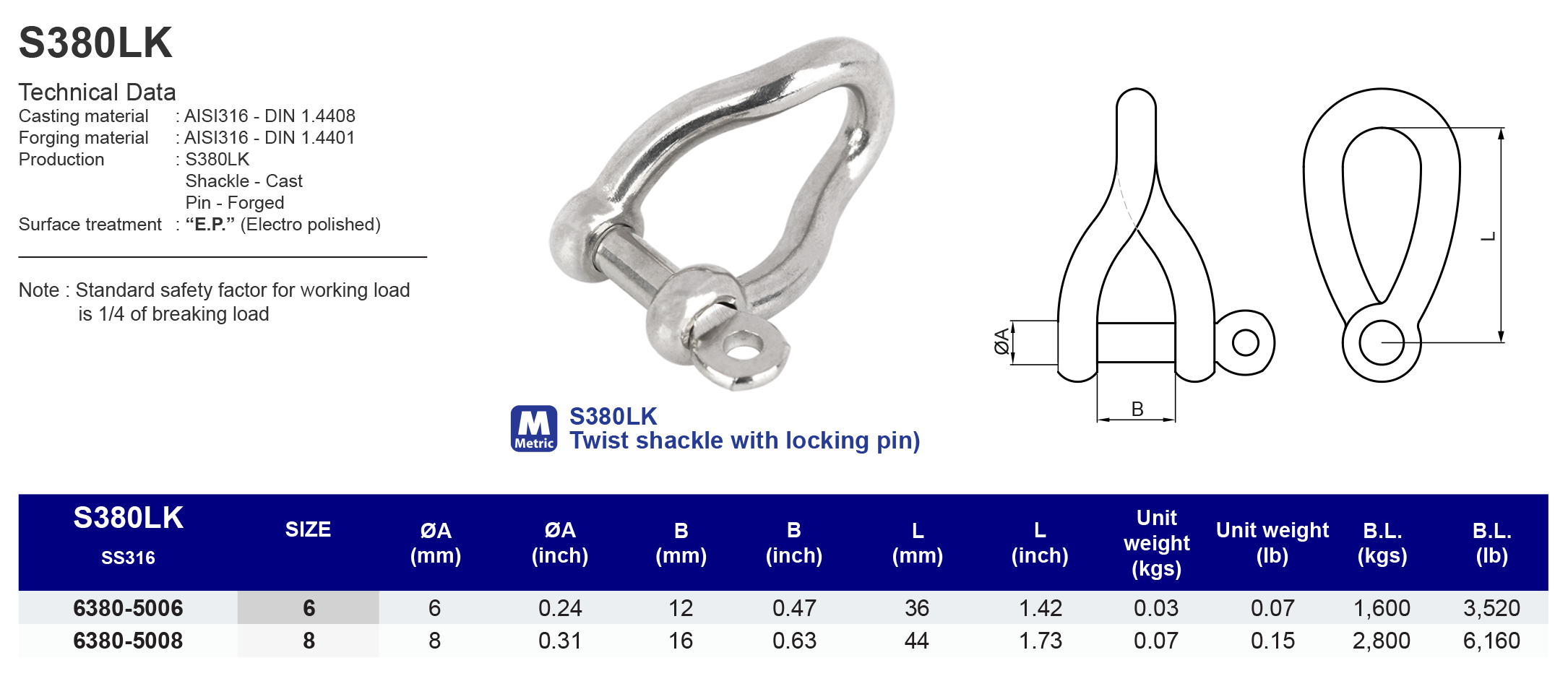

Model
S380LK

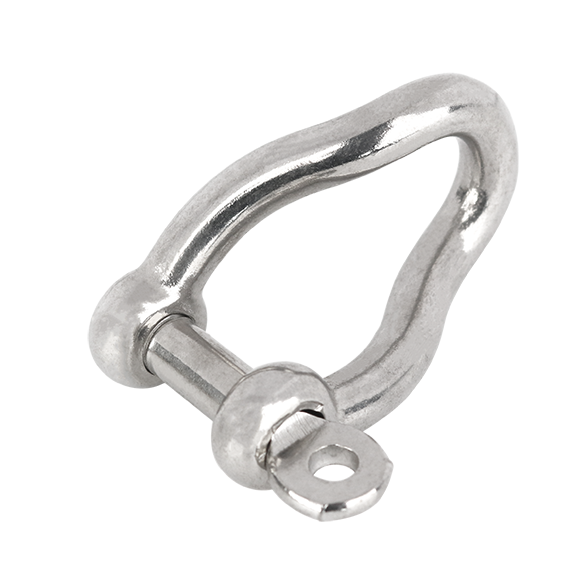

Twist shackle with locking pin
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63805006 | 6 | 6 | 12 | 36 | 0.03 | 1,600 |
| 63805008 | 8 | 8 | 16 | 44 | 0.07 | 2,800 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63805006 | 1/4" | 0.24 | 0.47 | 1.42 | 0.07 | 3,520 |
| 63805008 | 5/16" | 0.31 | 0.63 | 1.73 | 0.15 | 6,160 |
