Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S371LK - Shackle - Cast
Pin - Forged
Surface Treatment:“E.P.” (Electro polished) DATA SHEET DOWNLOAD

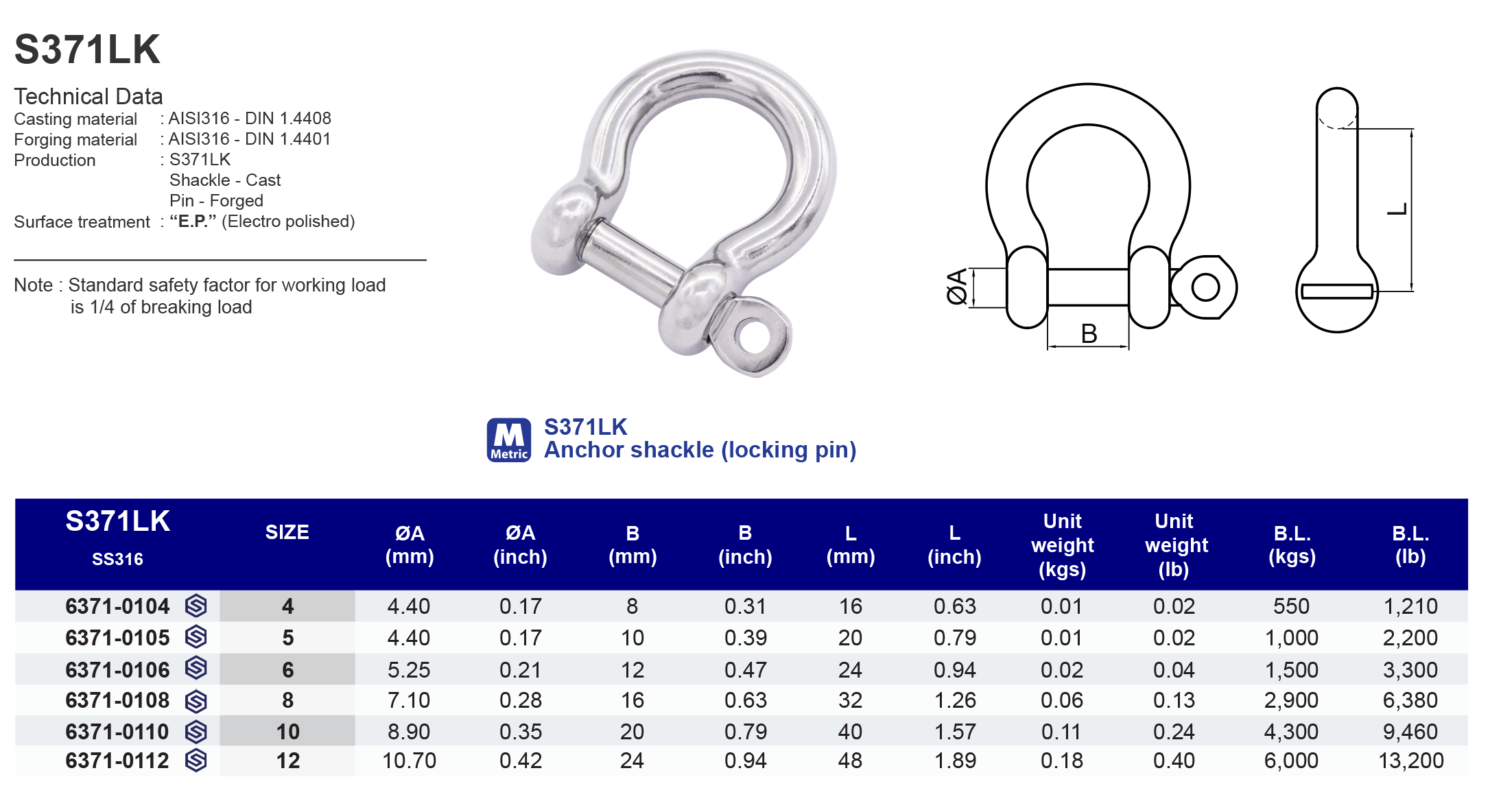

Model
S371LK

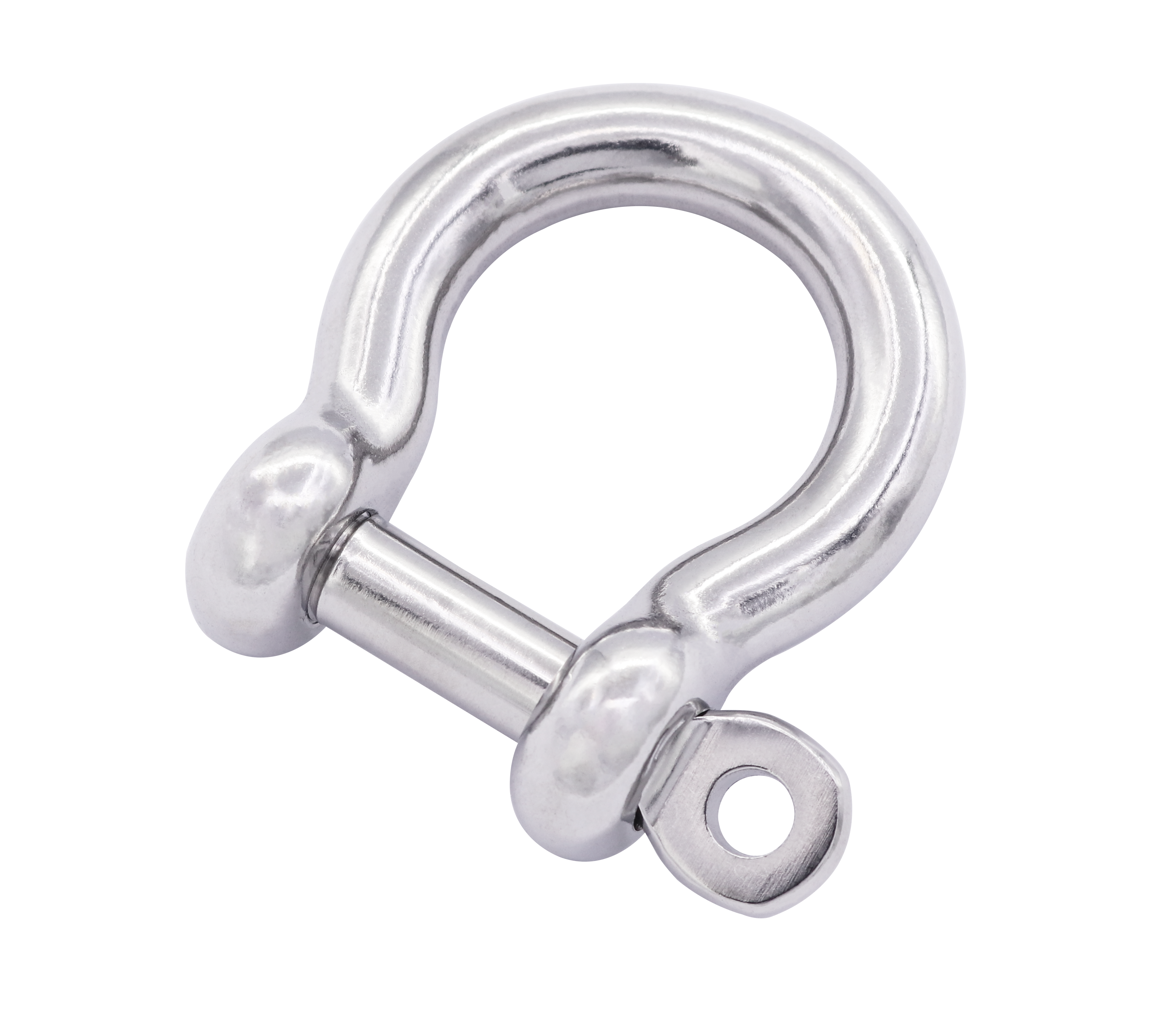

Anchor shackle (locking pin)
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63710104 | 4 | 4.40 | 8 | 18 | 0.01 | 550 |
| 63710105 | 5 | 4.40 | 10 | 20 | 0.01 | 1,000 |
| 63710106 | 6 | 5.26 | 12 | 24 | 0.02 | 1,500 |
| 63710108 | 8 | 7.12 | 16 | 32 | 0.06 | 2,900 |
| 63710110 | 10 | 8.93 | 20 | 40 | 0.11 | 4,300 |
| 63710112 | 12 | 10.75 | 24 | 48 | 0.18 | 6,000 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63710104 | 5/32" | 0.17 | 0.31 | 0.71 | 0.02 | 1,210 |
| 63710105 | 3/16" | 0.17 | 0.39 | 0.79 | 0.02 | 2,200 |
| 63710106 | 1/4" | 0.21 | 0.47 | 0.94 | 0.04 | 3,300 |
| 63710108 | 5/16" | 0.28 | 0.63 | 1.26 | 0.13 | 6,380 |
| 63710110 | 3/8" | 0.35 | 0.79 | 1.57 | 0.24 | 9,460 |
| 63710112 | 1/2" | 0.42 | 0.94 | 1.89 | 0.40 | 13,200 |
