Description

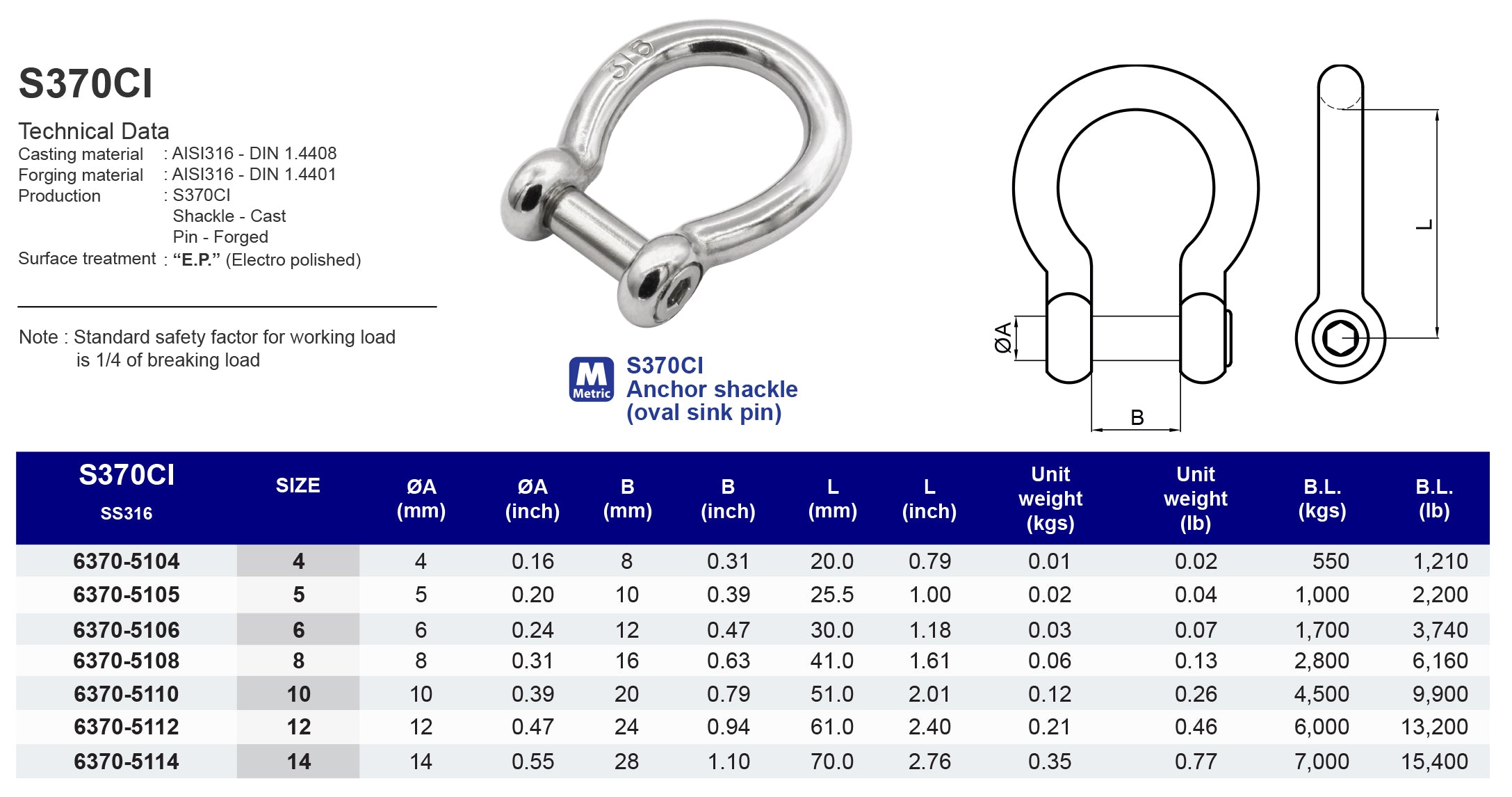

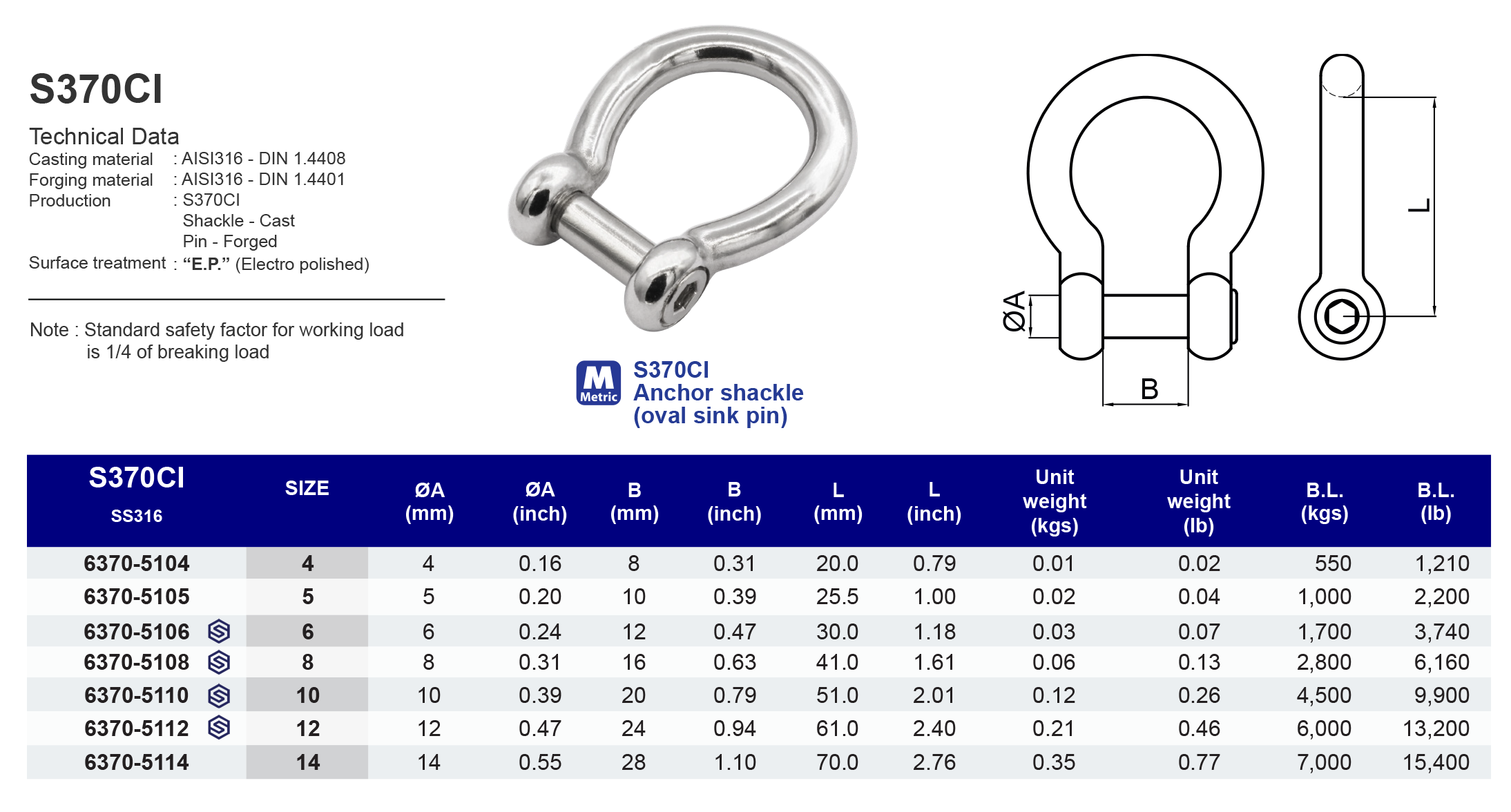

Technical Data
Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Production : Shackle - Cast , Pin - Forged
Surface Treatment : “E.P.” (Electro polished)
Model
S370CI

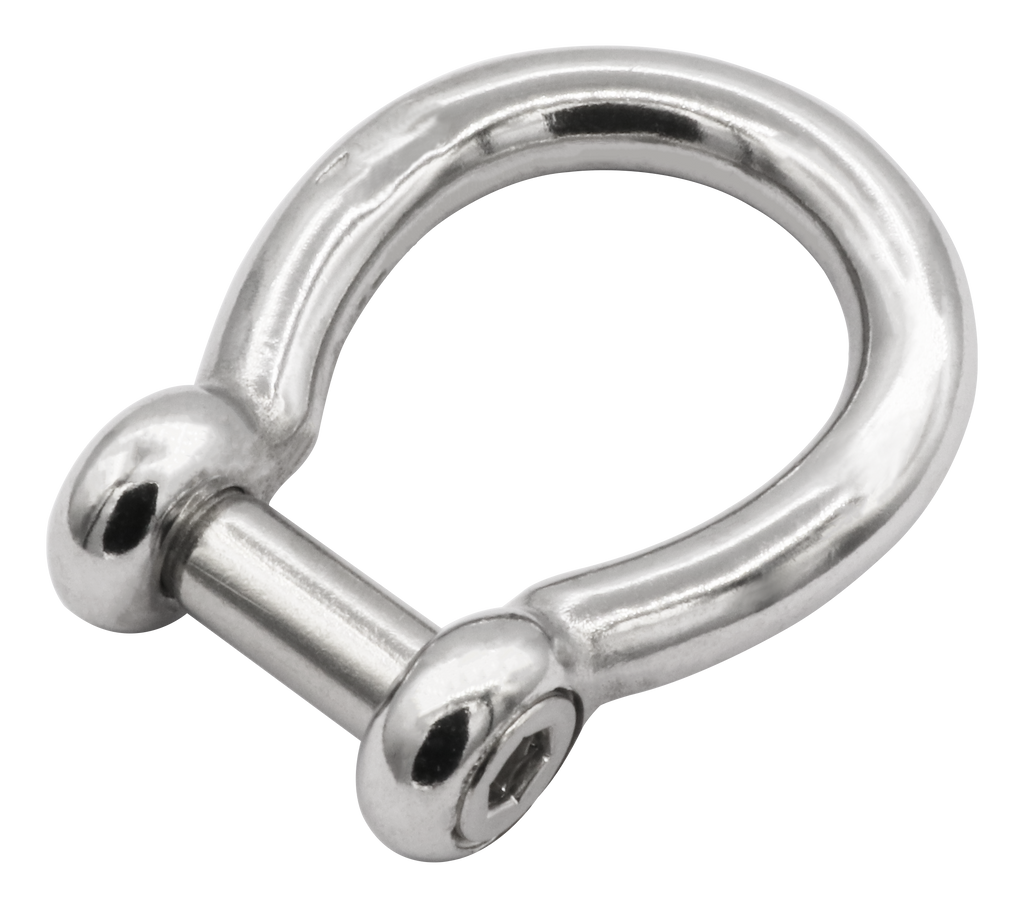

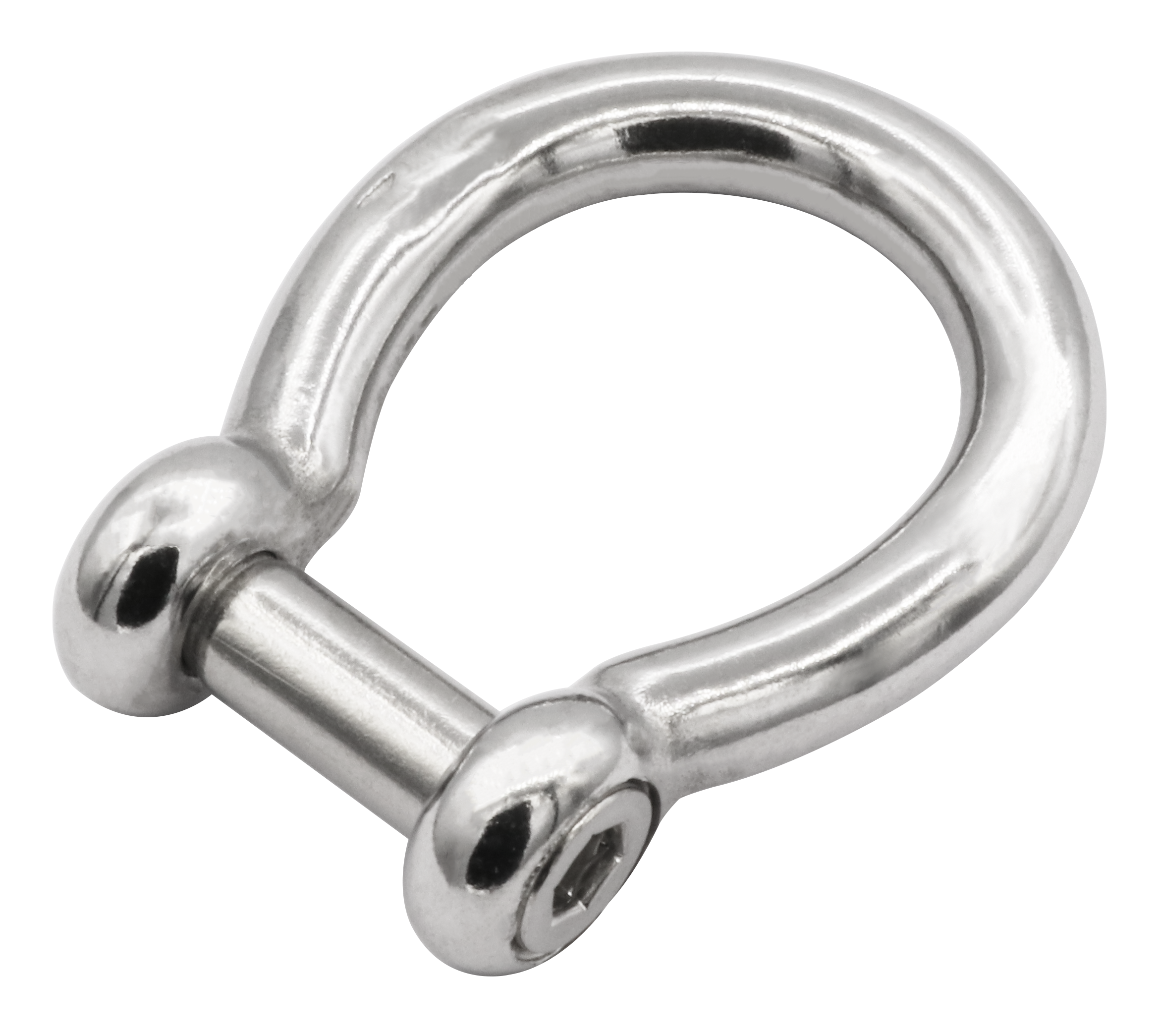

Anchor shackle (oval sink pin)
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63705104 | 4 | 4 | 8 | 20 | 0.01 | 550 |
| 63705105 | 5 | 5 | 10 | 25.5 | 0.02 | 1,000 |
| 63705106 | 6 | 6 | 12 | 30 | 0.03 | 1,700 |
| 63705108 | 8 | 8 | 16 | 41 | 0.06 | 2,800 |
| 63705110 | 10 | 10 | 20 | 51 | 0.12 | 4,500 |
| 63705112 | 12 | 12 | 24 | 61 | 0.21 | 6,000 |
| 63705114 | 14 | 14 | 28 | 70 | 0.35 | 7,000 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63705104 | 5/32" | 0.16 | 0.31 | 0.79 | 0.02 | 1,210 |
| 63705105 | 3/16" | 0.20 | 0.39 | 1.00 | 0.04 | 2,200 |
| 63705106 | 1/4" | 0.24 | 0.47 | 1.18 | 0.07 | 3,740 |
| 63705108 | 5/16" | 0.31 | 0.63 | 1.61 | 0.13 | 6,160 |
| 63705110 | 3/8" | 0.39 | 0.79 | 2.01 | 0.26 | 9,900 |
| 63705112 | 1/2" | 0.47 | 0.94 | 2.40 | 0.46 | 13,200 |
| 63705114 | 9/16" | 0.55 | 1.10 | 2.76 | 0.77 | 15,400 |
