Description

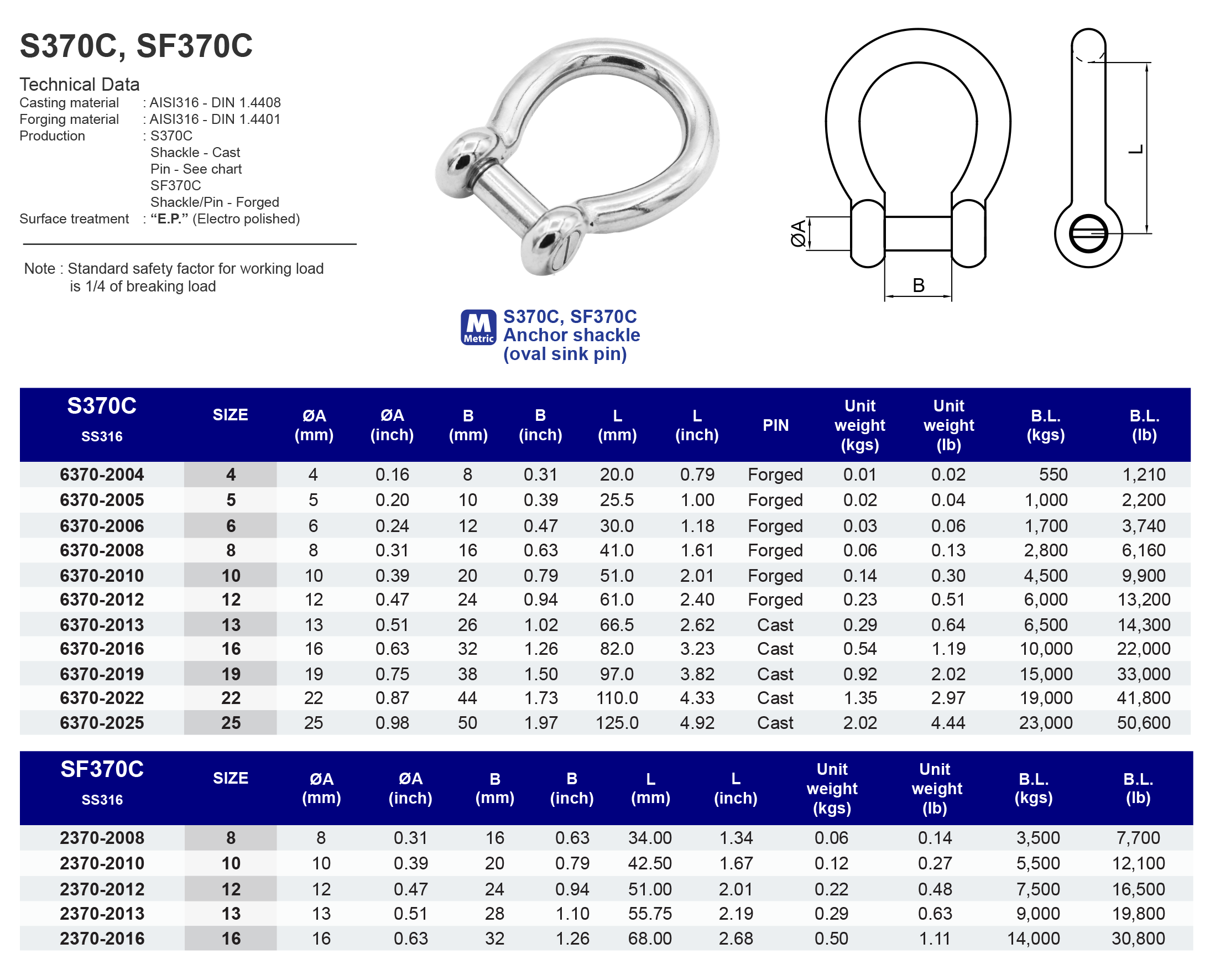

Technical Data:
Casting Material:
AISI316 - DIN 1.4408
Forging Material:
AISI316 - DIN 1.4401
Production:
S370C - Shackle - Cast
Pin - See chart
Surface Treatment:
Electro polished / Passivated
Model
S370C, SF370C
Anchor Shackle (oval sink pin)
316 ss
SS316 | Size | ØA(mm) | B(mm) | L(mm) | Shackle | Pin | Unit Weight (kgs) | B.L. (kgs) |
---|---|---|---|---|---|---|---|---|
63702004 | 4 | 4 | 8 | 20 | Cast | Forged | 0.01 | 550 |
63702005 | 5 | 5 | 10 | 25.5 | Cast | Forged | 0.02 | 1,000 |
63702006 | 6 | 6 | 12 | 30 | Cast | Forged | 0.03 | 1,700 |
63702008 | 8 | 8 | 16 | 41 | Cast | Forged | 0.06 | 2,800 |
63702010 | 10 | 10 | 20 | 51 | Cast | Forged | 0.14 | 4,500 |
63702012 | 12 | 12 | 24 | 61 | Cast | Forged | 0.23 | 6,000 |
63702013 | 13 | 13 | 26 | 66.5 | Cast | Cast | 0.29 | 6,500 |
63702016 | 16 | 16 | 32 | 82 | Cast | Cast | 0.54 | 10,000 |
63702019 | 19 | 19 | 38 | 97 | Cast | Cast | 0.92 | 15,000 |
63702022 | 22 | 22 | 44 | 110 | Cast | Cast | 1.35 | 19,000 |
63702025 | 25 | 25 | 50 | 125 | Cast | Cast | 2.02 | 23,000 |
23702008 | 8 (Forged) | 8 | 16 | 34.0 | Forged | Forged | 0.06 | 3,500 |
23702010 | 10 (Forged) | 10 | 20 | 42.5 | Forged | Forged | 0.14 | 5,500 |
23702012 | 12 (Forged) | 12 | 24 | 51.0 | Forged | Forged | 0.23 | 7,500 |
23702013 | 13 (Forged) | 13 | 28 | 55.75 | Forged | Forged | 0.29 | 9,000 |
23702016 | 16 (Forged) | 16 | 32 | 68.0 | Forged | Forged | 0.54 | 14,000 |
SS316 | Size | ØA(inch) | B(inch) | L(inch) | Shackle | Pin | Unit Weight (Ib) | B.L. (lb) |
---|---|---|---|---|---|---|---|---|
63702004 | 4 | 0.16 | 0.31 | 0.79 | Cast | Forged | 0.02 | 275 |
63702005 | 5 | 0.20 | 0.39 | 1.00 | Cast | Forged | 0.04 | 550 |
63702006 | 6 | 0.24 | 0.47 | 1.18 | Cast | Forged | 0.06 | 935 |
63702008 | 8 | 0.31 | 0.63 | 1.61 | Cast | Forged | 0.13 | 1,540 |
63702010 | 10 | 0.39 | 0.79 | 2.01 | Cast | Forged | 0.30 | 2,475 |
63702012 | 12 | 0.47 | 0.94 | 2.40 | Cast | Forged | 0.51 | 3,300 |
63702013 | 13 | 0.51 | 1.02 | 2.62 | Cast | Cast | 0.64 | 3,575 |
63702016 | 16 | 0.63 | 1.26 | 3.23 | Cast | Cast | 1.19 | 5,500 |
63702019 | 19 | 0.75 | 1.50 | 3.82 | Cast | Cast | 2.02 | 8,250 |
63702022 | 22 | 0.87 | 1.73 | 4.33 | Cast | Cast | 2.97 | 10,450 |
63702025 | 25 | 0.98 | 1.97 | 4.92 | Cast | Cast | 4.44 | 12,650 |
23702008 | 8 (Forged) | 0.31 | 0.63 | 1.34 | Forged | Forged | 0.13 | 1,925 |
23702010 | 10 (Forged) | 0.39 | 0.79 | 1.67 | Forged | Forged | 0.30 | 3,025 |
23702012 | 12 (Forged) | 0.47 | 0.94 | 2.01 | Forged | Forged | 0.51 | 4,125 |
23702013 | 13 (Forged) | 0.51 | 1.10 | 2.19 | Forged | Forged | 0.64 | 4,950 |
23702016 | 16 (Forged) | 0.63 | 1.26 | 2.68 | Forged | Forged | 1.19 | 7,700 |
