Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S370B - Shackle - Cast
Pin - See chart
SF370B Shackle - Forged
Pin - Forged
Surface Treatment: “E.P.” (Electro polished)
Model
S370B

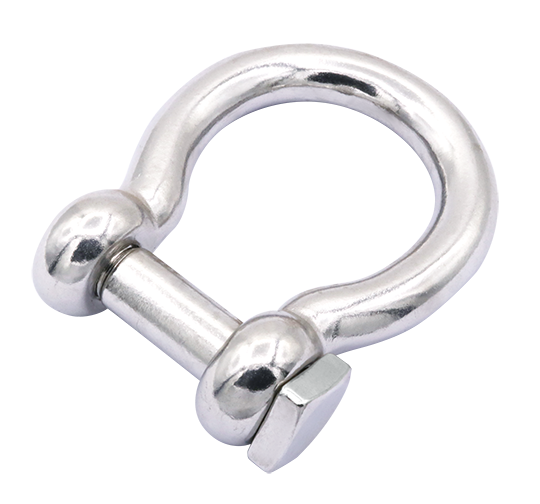

Anchor shackle (square head pin)
316 ss

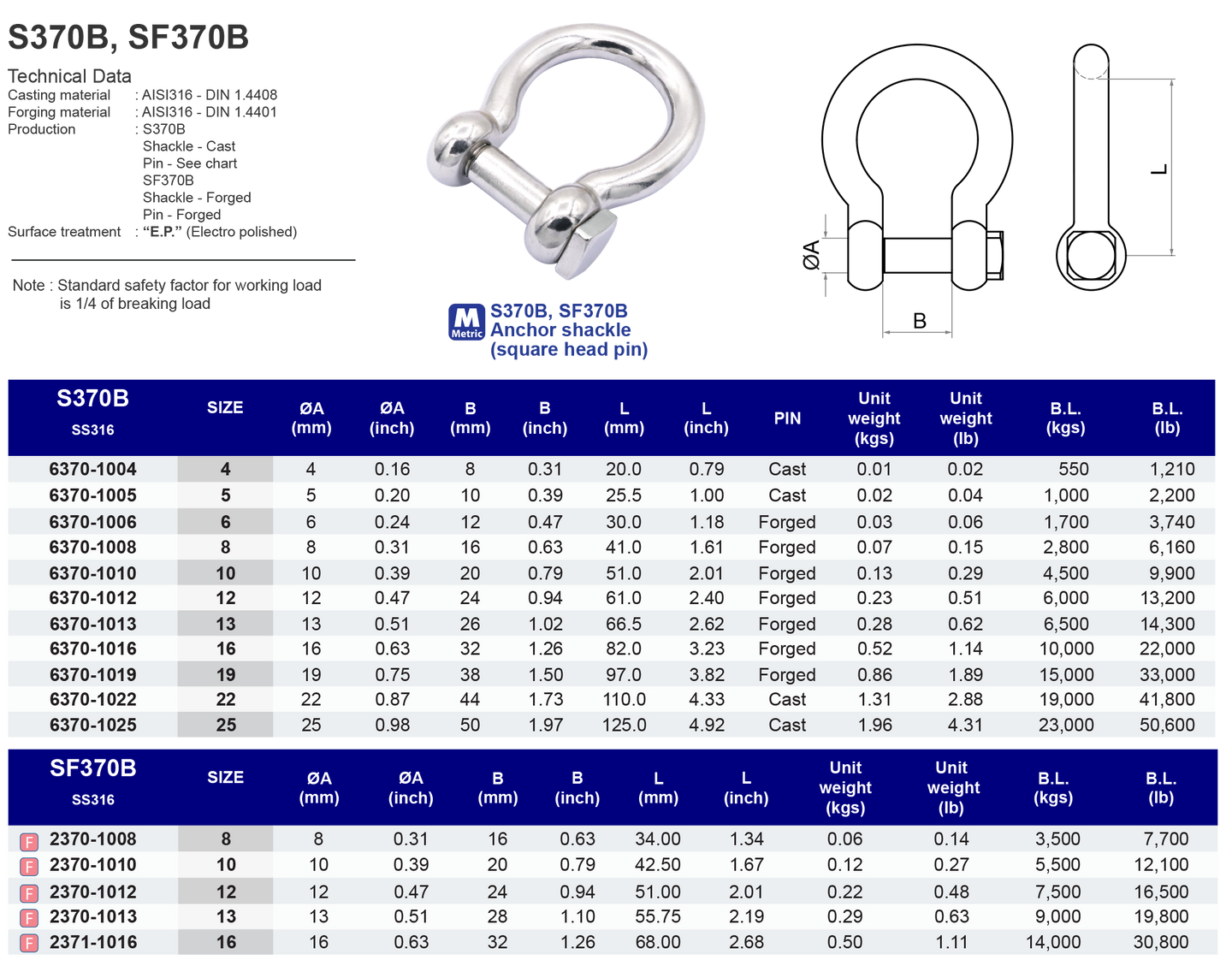

| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | PIN | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63701004 | 4 | 4 | 8 | 20 | Cast | 0.01 | 550 |
| 63701005 | 5 | 5 | 10 | 25.5 | Cast | 0.02 | 1,000 |
| 63701006 | 6 | 6 | 12 | 30 | Forged | 0.03 | 1,700 |
| 63701008 | 8 | 8 | 16 | 41 | Forged | 0.07 | 2,800 |
| 63701010 | 10 | 10 | 20 | 51 | Forged | 0.13 | 4,500 |
| 63701012 | 12 | 12 | 24 | 61 | Forged | 0.23 | 6,000 |
| 63701013 | 13 | 13 | 26 | 66.5 | Forged | 0.28 | 6,500 |
| 63701016 | 16 | 16 | 32 | 82 | Forged | 0.52 | 10,000 |
| 63701019 | 19 | 19 | 38 | 97 | Forged | 0.86 | 15,000 |
| 63701022 | 22 | 22 | 44 | 110 | Cast | 1.31 | 19,000 |
| 63701025 | 25 | 25 | 50 | 125 | Cast | 1.96 | 23,000 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | PIN | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63701004 | 5/32" | 0.16 | 0.31 | 0.79 | Cast | 0.02 | 1,210 |
| 63701005 | 3/16" | 0.20 | 0.39 | 1.00 | Cast | 0.04 | 2,200 |
| 63701006 | 1/4" | 0.24 | 0.47 | 1.18 | Forged | 0.06 | 3,740 |
| 63701008 | 5/16" | 0.31 | 0.63 | 1.61 | Forged | 0.15 | 6,160 |
| 63701010 | 3/8" | 0.39 | 0.79 | 2.01 | Forged | 0.29 | 9,900 |
| 63701012 | 15/32" | 0.47 | 0.94 | 2.40 | Forged | 0.51 | 13,200 |
| 63701013 | 1/2" | 0.51 | 1.02 | 2.62 | Forged | 0.62 | 14,300 |
| 63701016 | 5/8" | 0.63 | 1.26 | 3.23 | Forged | 1.14 | 22,000 |
| 63701019 | 3/4" | 0.75 | 1.50 | 3.82 | Forged | 1.89 | 33,000 |
| 63701022 | 7/8" | 0.87 | 1.73 | 4.33 | Cast | 2.88 | 41,800 |
| 63701025 | 1" | 0.98 | 1.97 | 4.92 | Cast | 4.31 | 50,600 |
