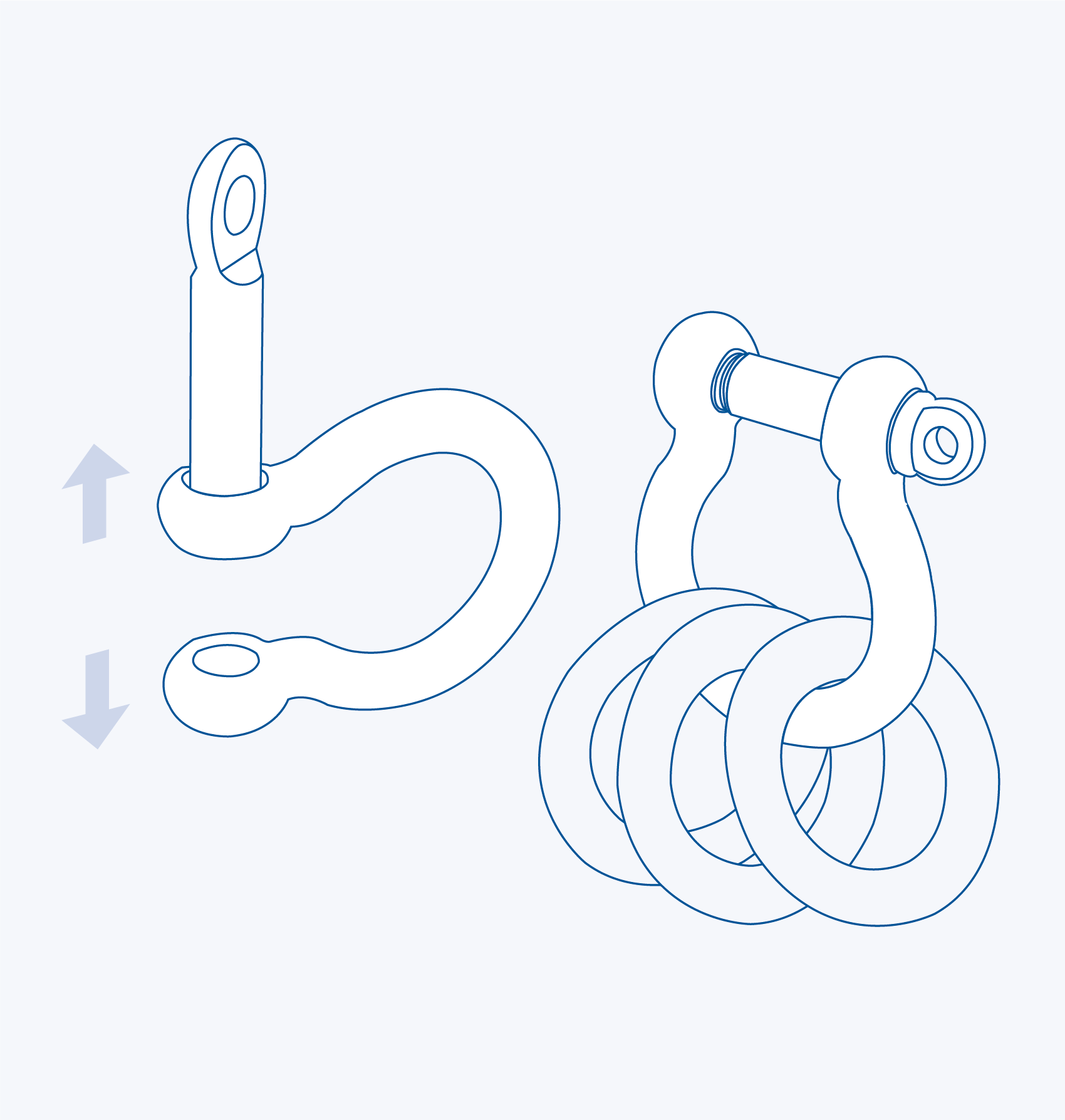

Description

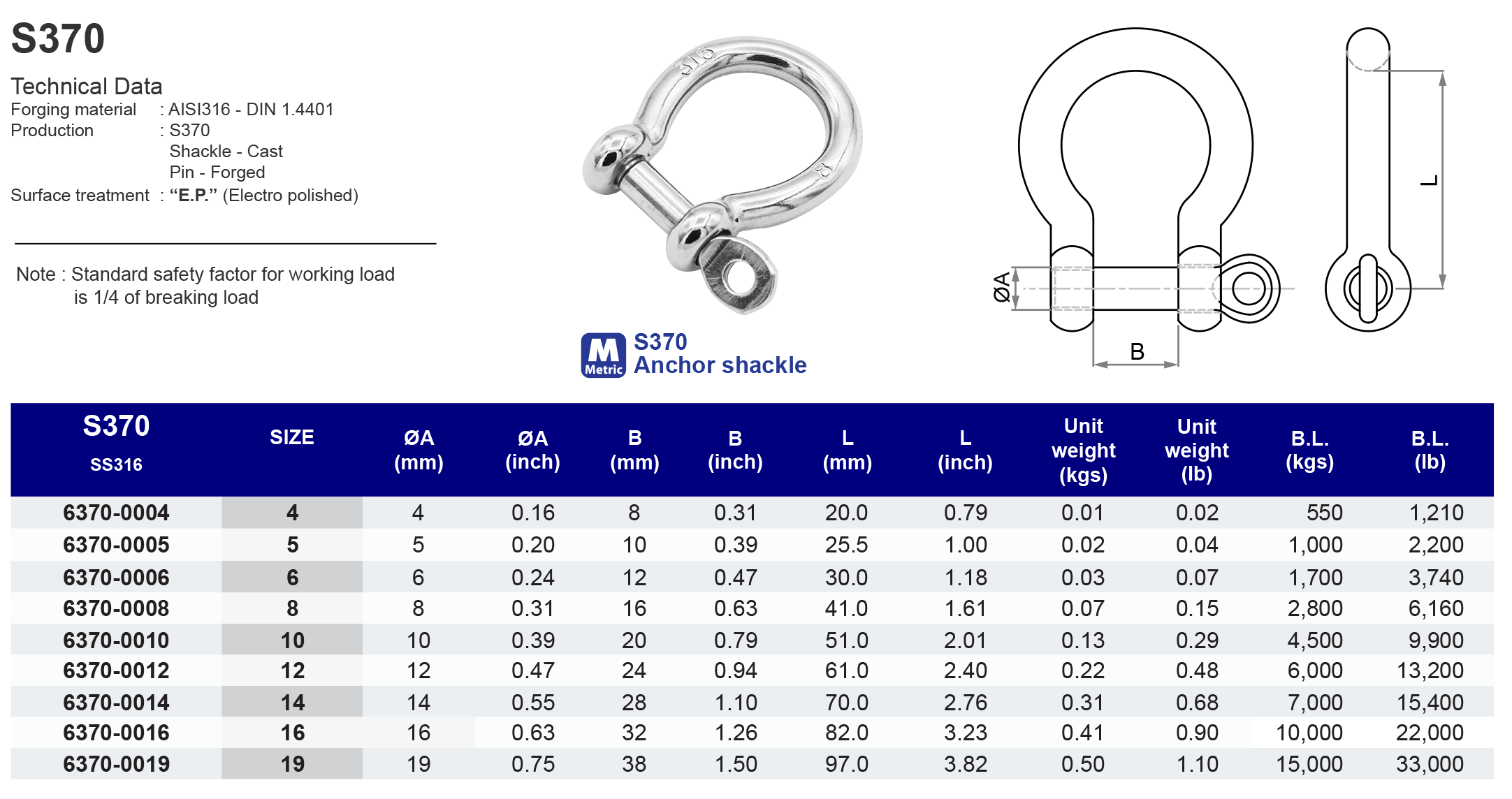

Technical Data
Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Production : Shackle - Cast , Pin - Forged
Surface Treatment : “E.P.” (Electro polished)
DATA SHEET DOWNLOAD
Model
S370

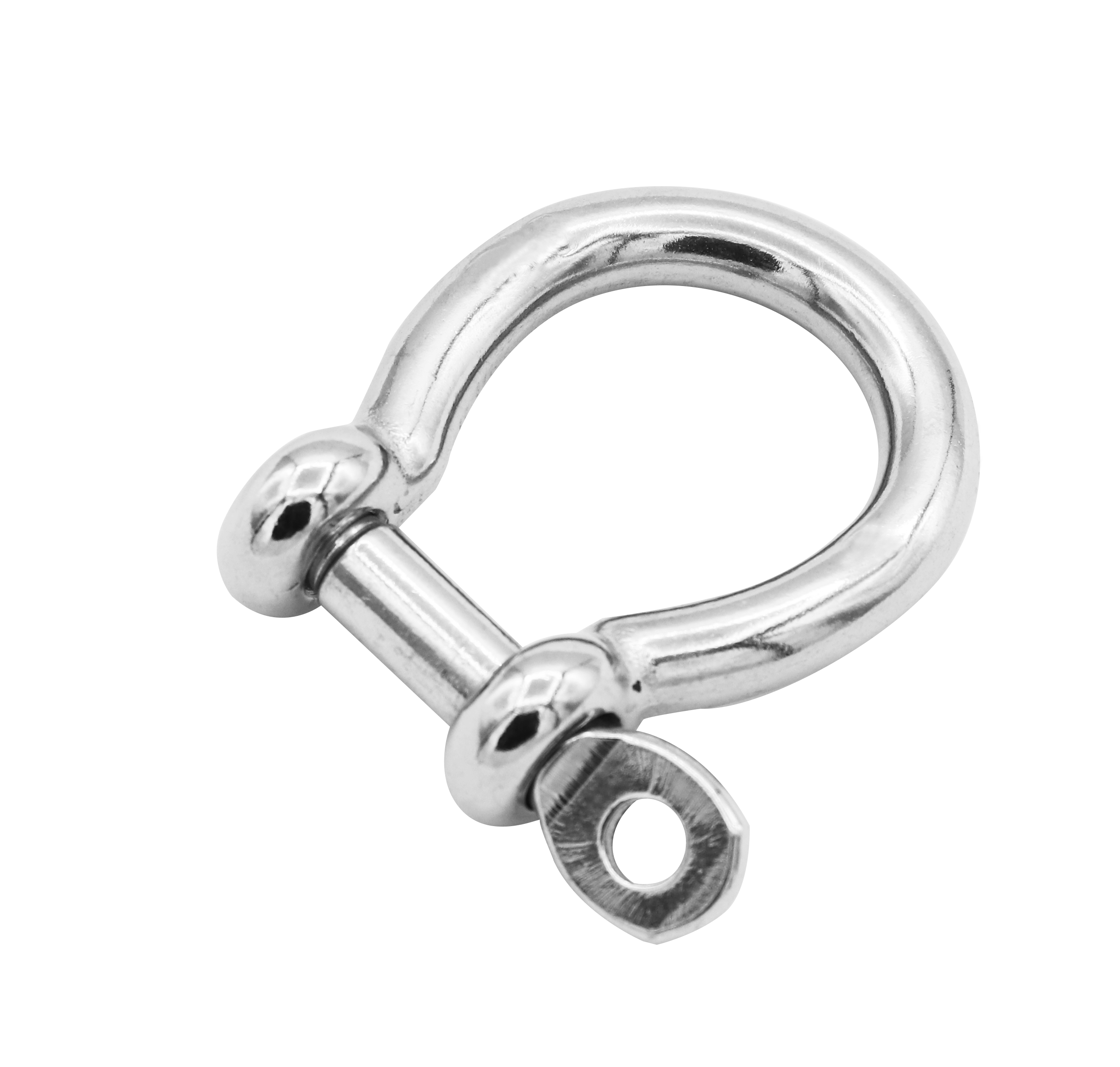

Anchor shackle
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63700004 | 4 | 4 | 8 | 20 | 0.01 | 550 |
| 63700005 | 5 | 5 | 10 | 25.5 | 0.02 | 1,000 |
| 63700006 | 6 | 6 | 12 | 30 | 0.03 | 1,700 |
| 63700008 | 8 | 8 | 16 | 41 | 0.07 | 2,800 |
| 63700010 | 10 | 10 | 20 | 51 | 0.13 | 4,500 |
| 63700012 | 12 | 12 | 24 | 61 | 0.22 | 6,000 |
| 63700014 | 14 | 14 | 28 | 70 | 0.31 | 7,000 |
| 63700016 | 16 | 16 | 32 | 82 | 0.41 | 10,000 |
| 63700019 | 19 | 19 | 38 | 97 | 0.50 | 15,000 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63700004 | 5/32" | 0.16 | 0.31 | 0.79 | 0.02 | 1,210 |
| 63700005 | 3/16" | 0.20 | 0.39 | 1.00 | 0.04 | 2,200 |
| 63700006 | 1/4" | 0.24 | 0.47 | 1.18 | 0.07 | 3,740 |
| 63700008 | 5/16" | 0.31 | 0.63 | 1.61 | 0.15 | 6,160 |
| 63700010 | 3/8" | 0.39 | 0.79 | 2.01 | 0.29 | 9,900 |
| 63700012 | 1/2" | 0.47 | 0.94 | 2.40 | 0.48 | 13,200 |
| 63700014 | 9/16" | 0.55 | 1.10 | 2.76 | 0.68 | 15,400 |
| 63700016 | 5/8" | 0.63 | 1.26 | 3.23 | 0.90 | 22,000 |
| 63700019 | 3/4" | 0.75 | 1.50 | 3.82 | 1.10 | 33,000 |
