Description

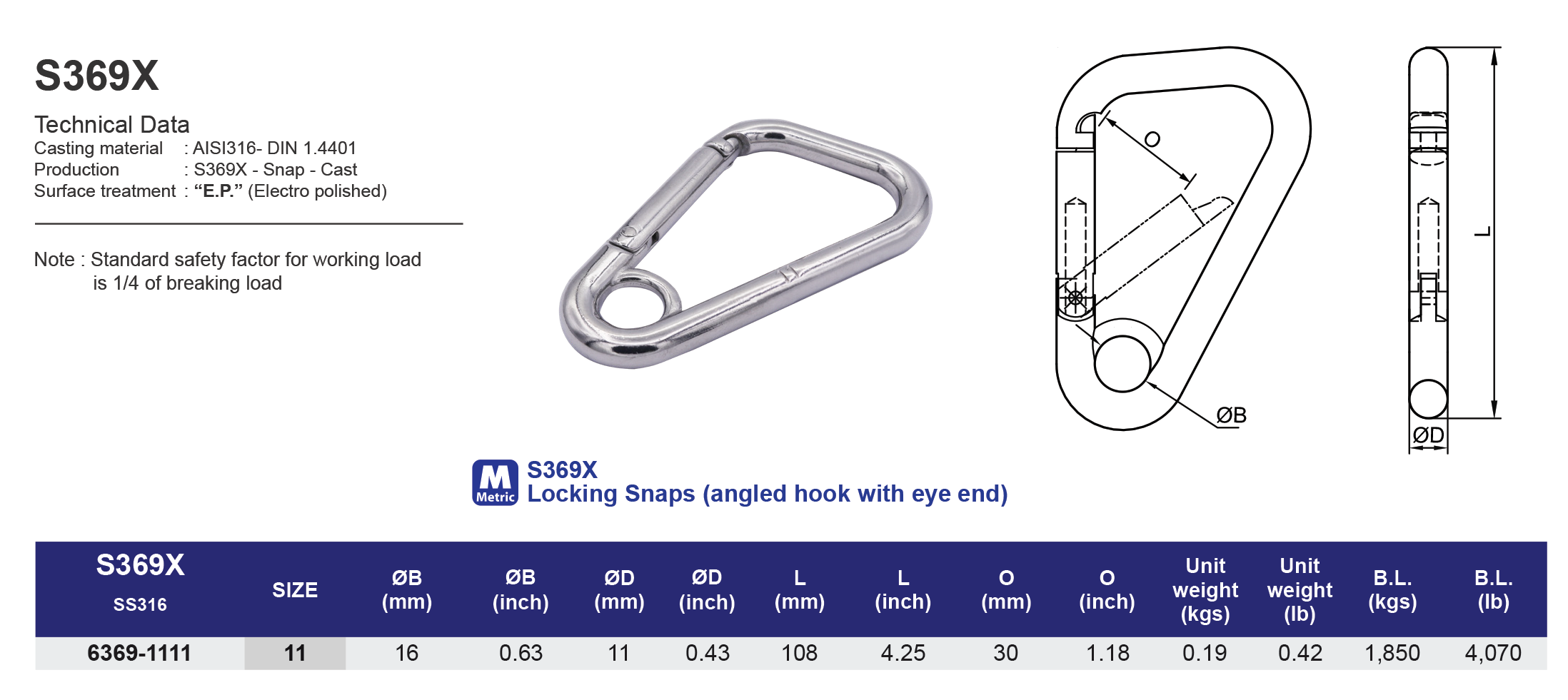

Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD
Model
S369X

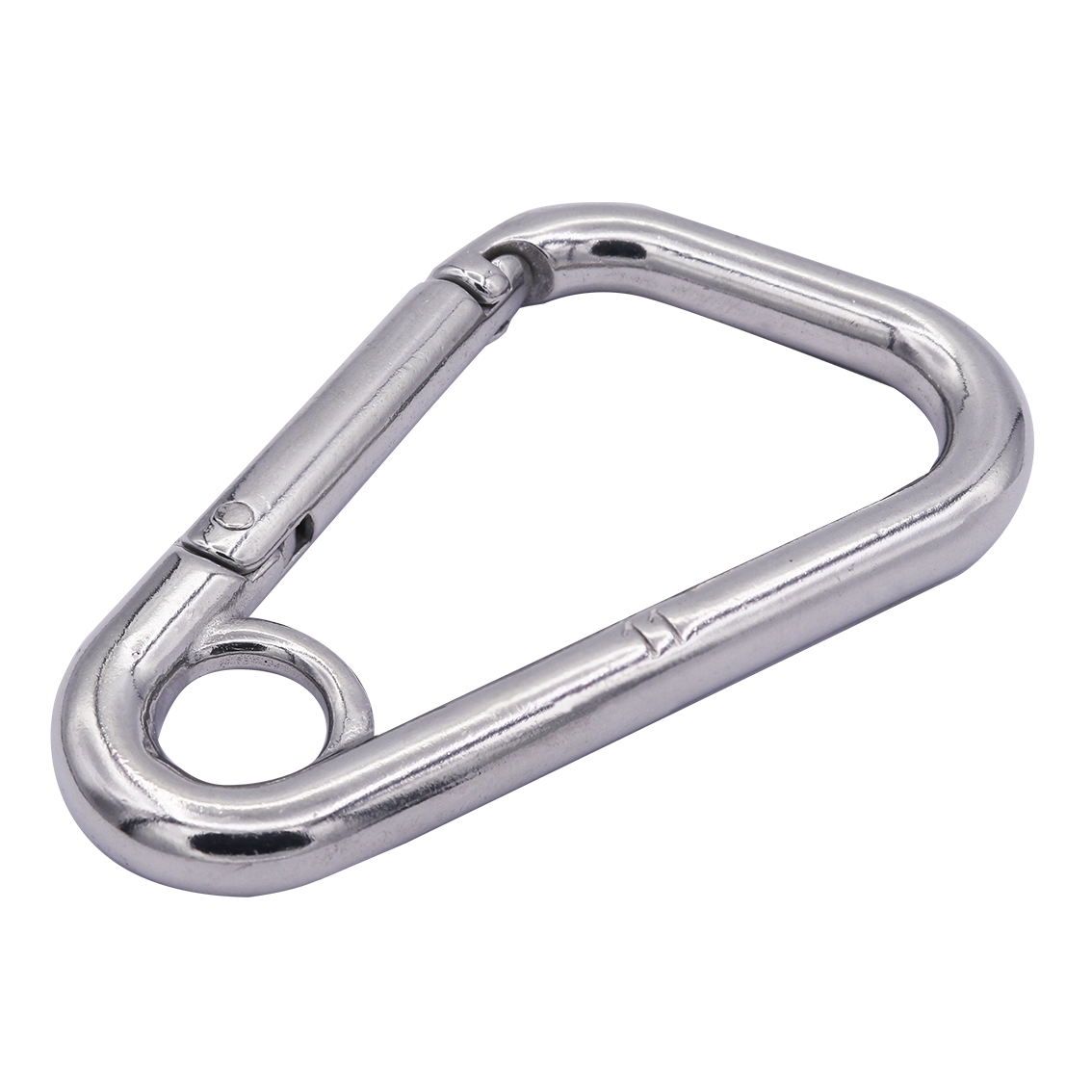

Locking Snaps (angled hook with eye end)
316 ss
| SS316 | Size | ØB (mm) | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 6369-1111 | 11 | 16 | 11 | 108 | 30 | 0.19 | 1,850 |
| SS316 | Size | ØB (inch) | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 6369-1111 | 11 | 0.63 | 0.43 | 4.25 | 1.18 | 0.42 | 4,070 |
