Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD
Model
S369

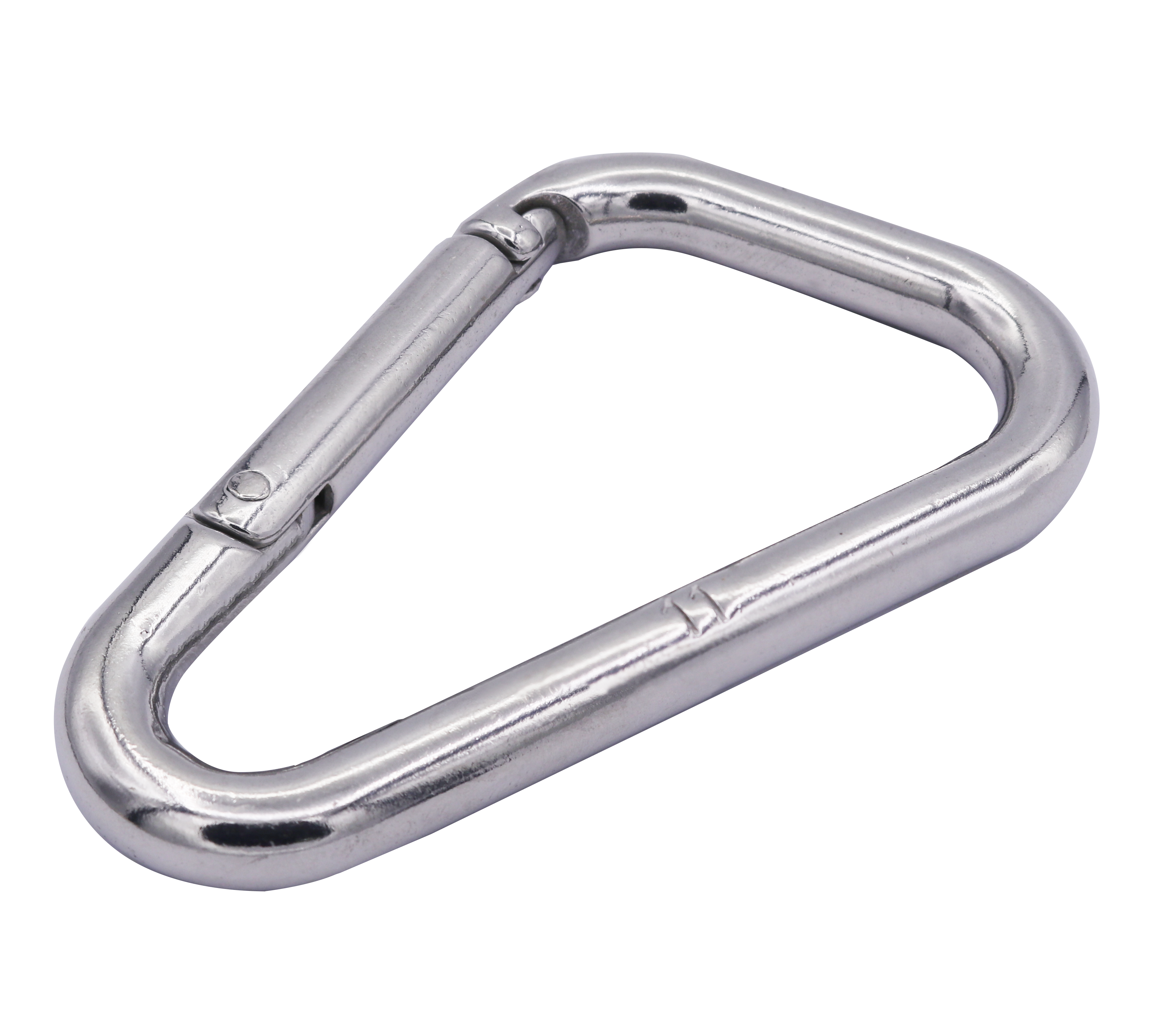

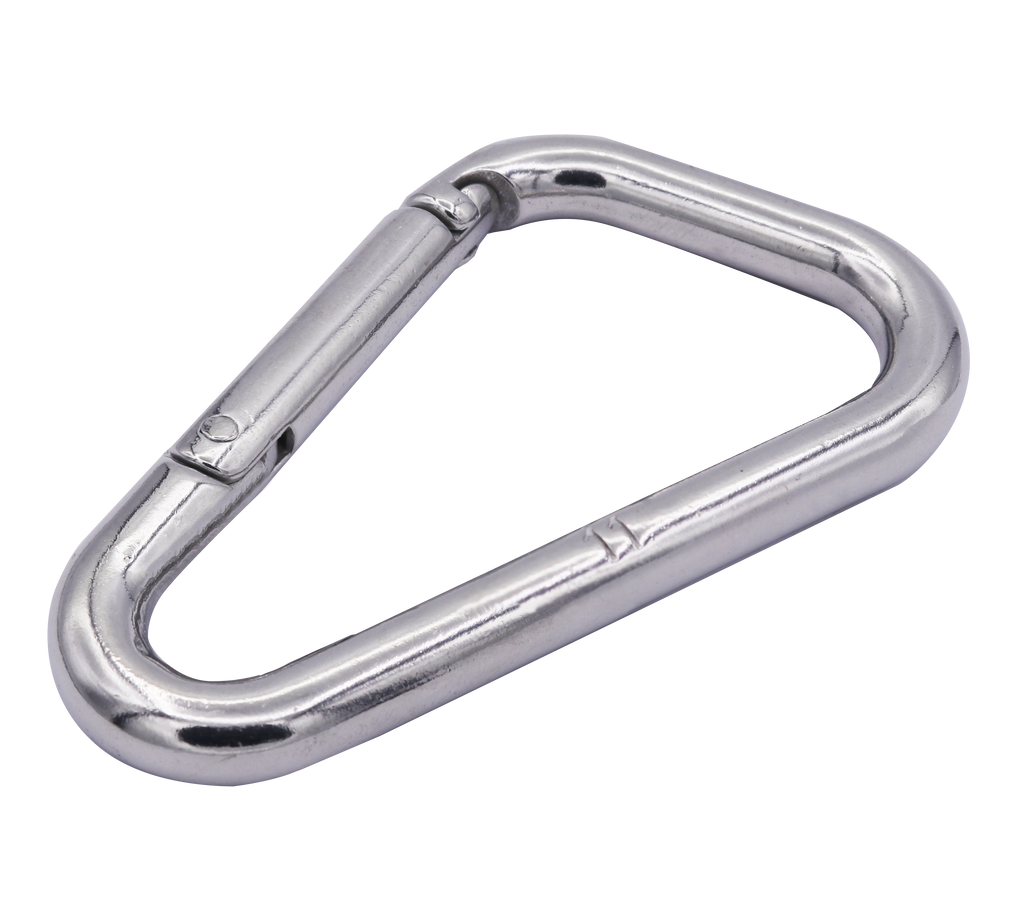

Locking Snaps (angled hook)
316 ss
| SS316 | Size | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 6249-0009 | 9 | 9 | 90 | 18 | 0.13 | 1,000 |
| SS316 | Size | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 6249-0009 | 9 | 0.35 | 3.54 | 0.71 | 0.28 | 2,200 |
