Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Shackle - Cast , Pin - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

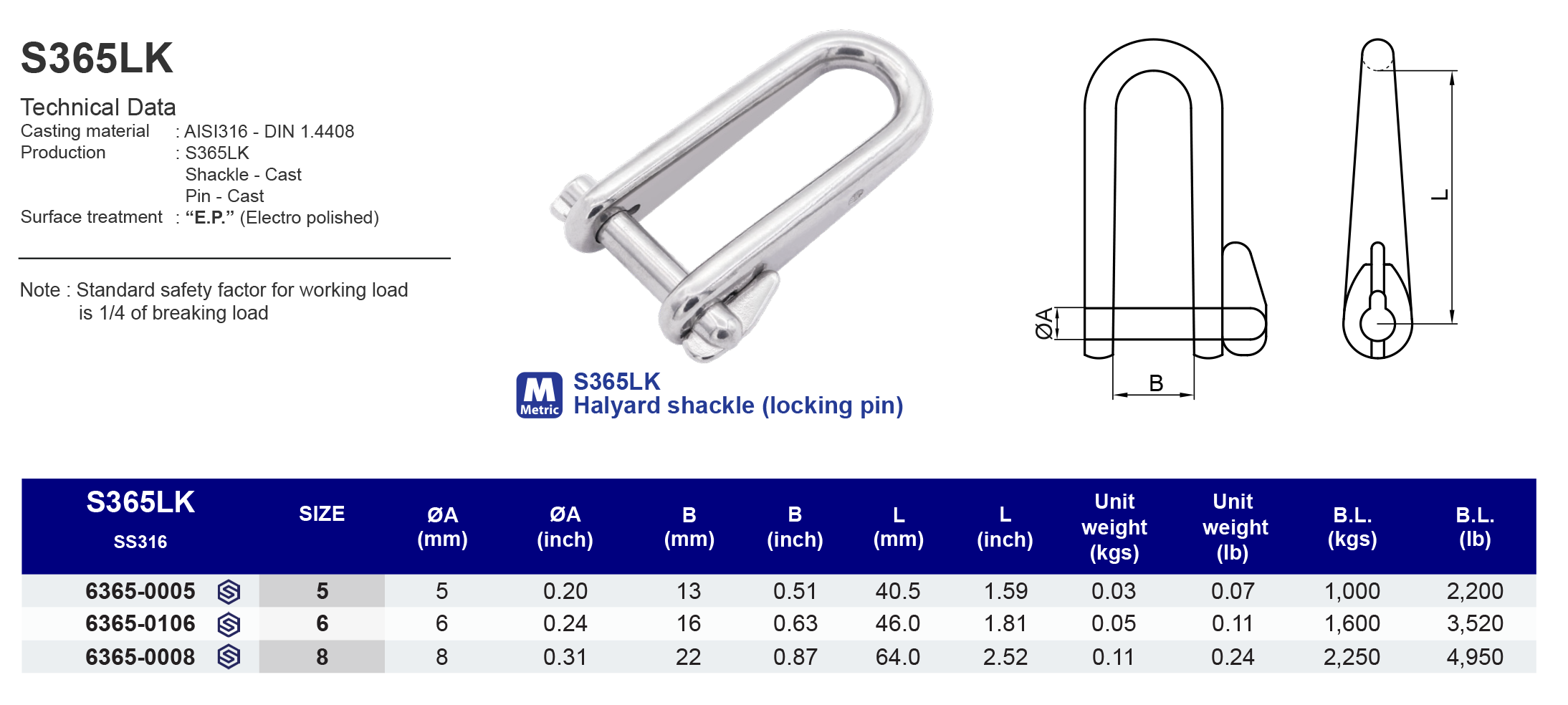

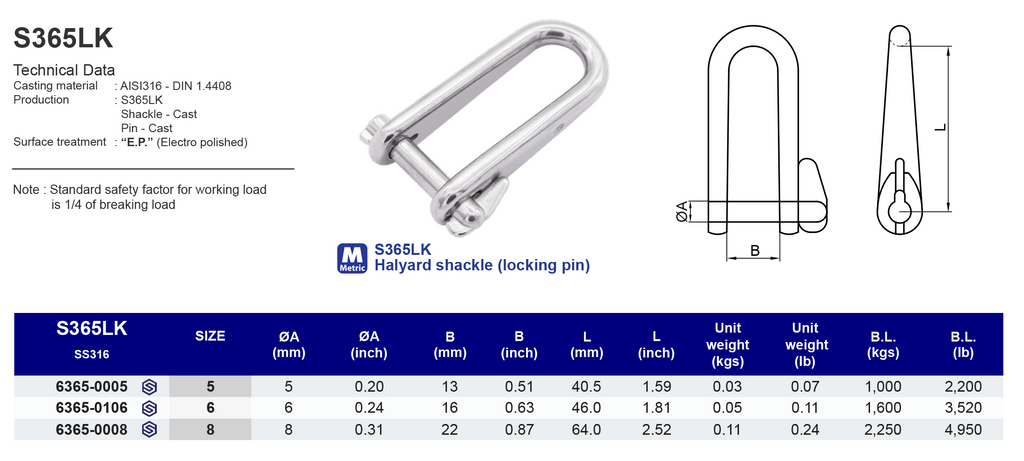

Model
S365LK

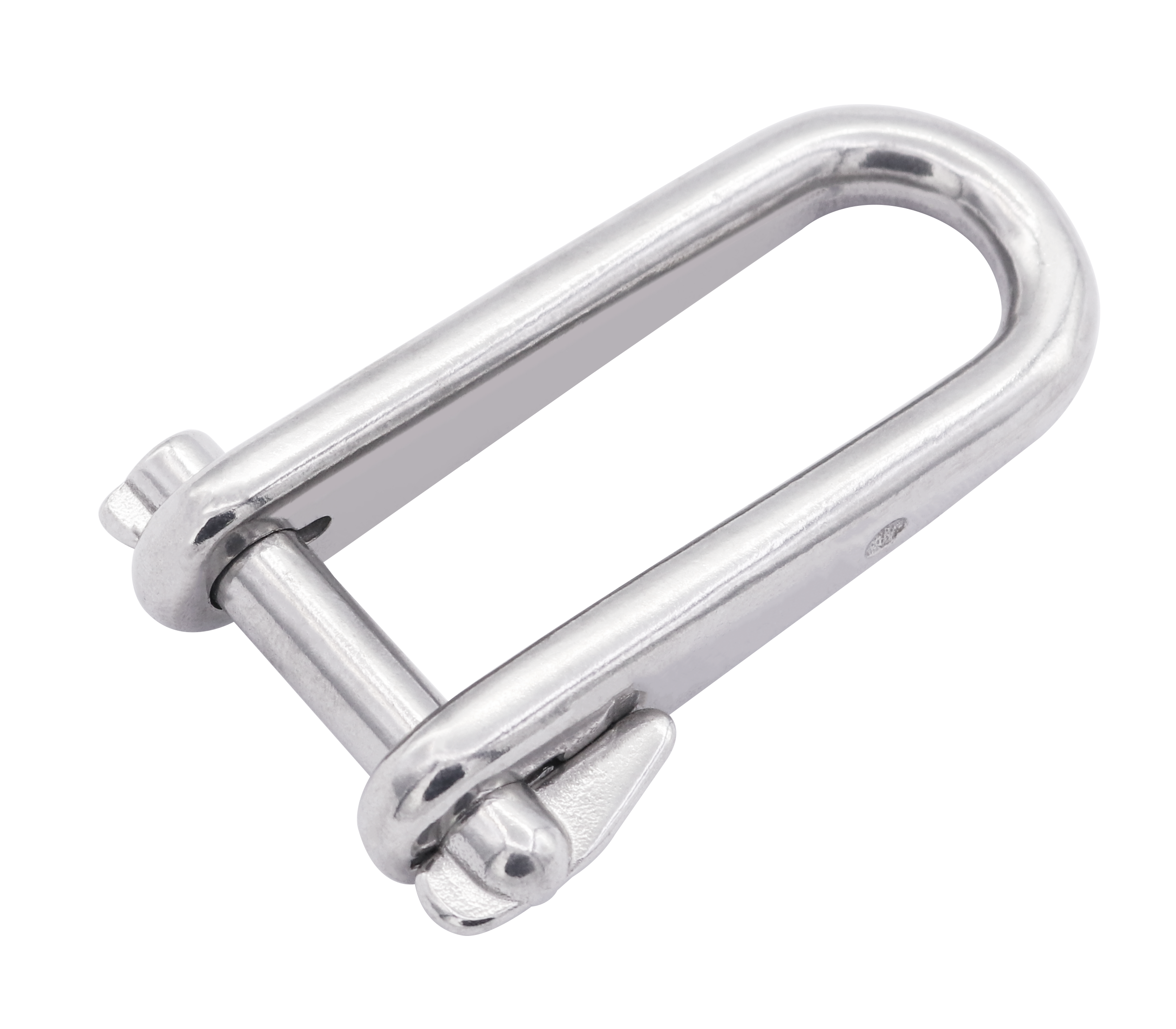

Halyard shackle (locking pin)
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63650005 | 5 | 5 | 13 | 40.5 | 0.03 | 1,000 |
| 63650106 | 6 | 6 | 16 | 46.0 | 0.05 | 1,600 |
| 63650008 | 8 | 8 | 22 | 64.0 | 0.11 | 2,250 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63650005 | 3/16" | 0.20 | 0.51 | 1.59 | 0.07 | 2,200 |
| 63650106 | 1/4" | 0.24 | 0.63 | 1.81 | 0.11 | 3,520 |
| 63650008 | 5/16" | 0.31 | 0.87 | 2.52 | 0.24 | 4,950 |
