Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S365DLK - Shackle - Cast
Pin - Cast
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Casting Material: AISI316 - DIN 1.4408
Production: S365DLK - Shackle - Cast
Pin - Cast
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load

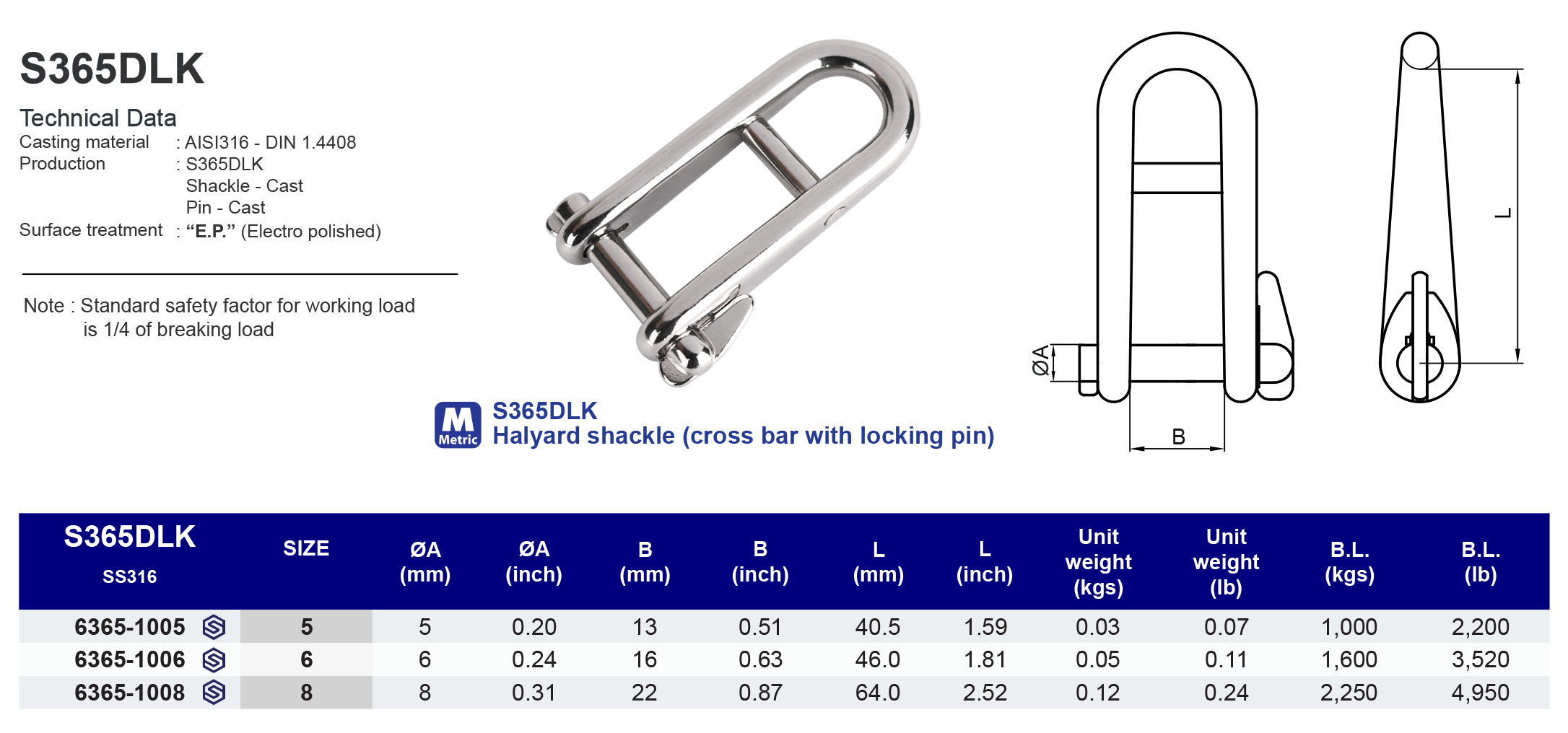

Model
S365DLK

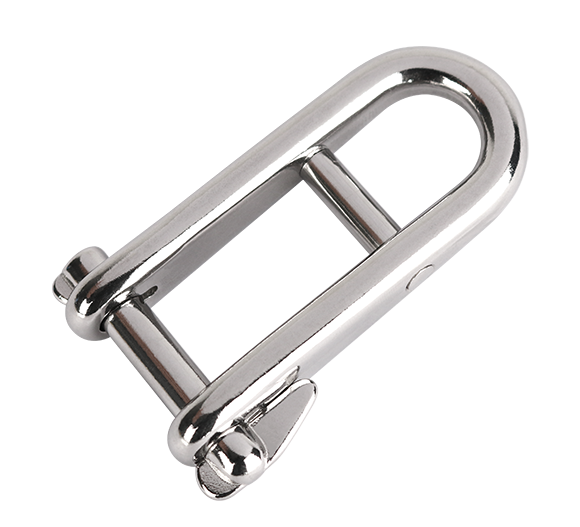

Halyard shackle (cross bar with locking pin)
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63651005 | 5 | 5 | 13 | 40.5 | 0.03 | 1,000 |
| 63651006 | 6 | 6 | 16 | 46.0 | 0.05 | 1,600 |
| 63651008 | 8 | 8 | 22 | 64.0 | 0.12 | 2,250 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63651005 | 3/16" | 0.20 | 0.51 | 1.59 | 0.07 | 2,200 |
| 63651006 | 1/4" | 0.24 | 0.63 | 1.81 | 0.11 | 3,520 |
| 63651008 | 5/16" | 0.31 | 0.87 | 2.52 | 0.24 | 4,950 |
