Description
Technical Data:
Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Production : Shackle - Cast , Pin - Forged
Surface Treatment : “E.P.” (Electro polished)
DATA SHEET DOWNLOAD

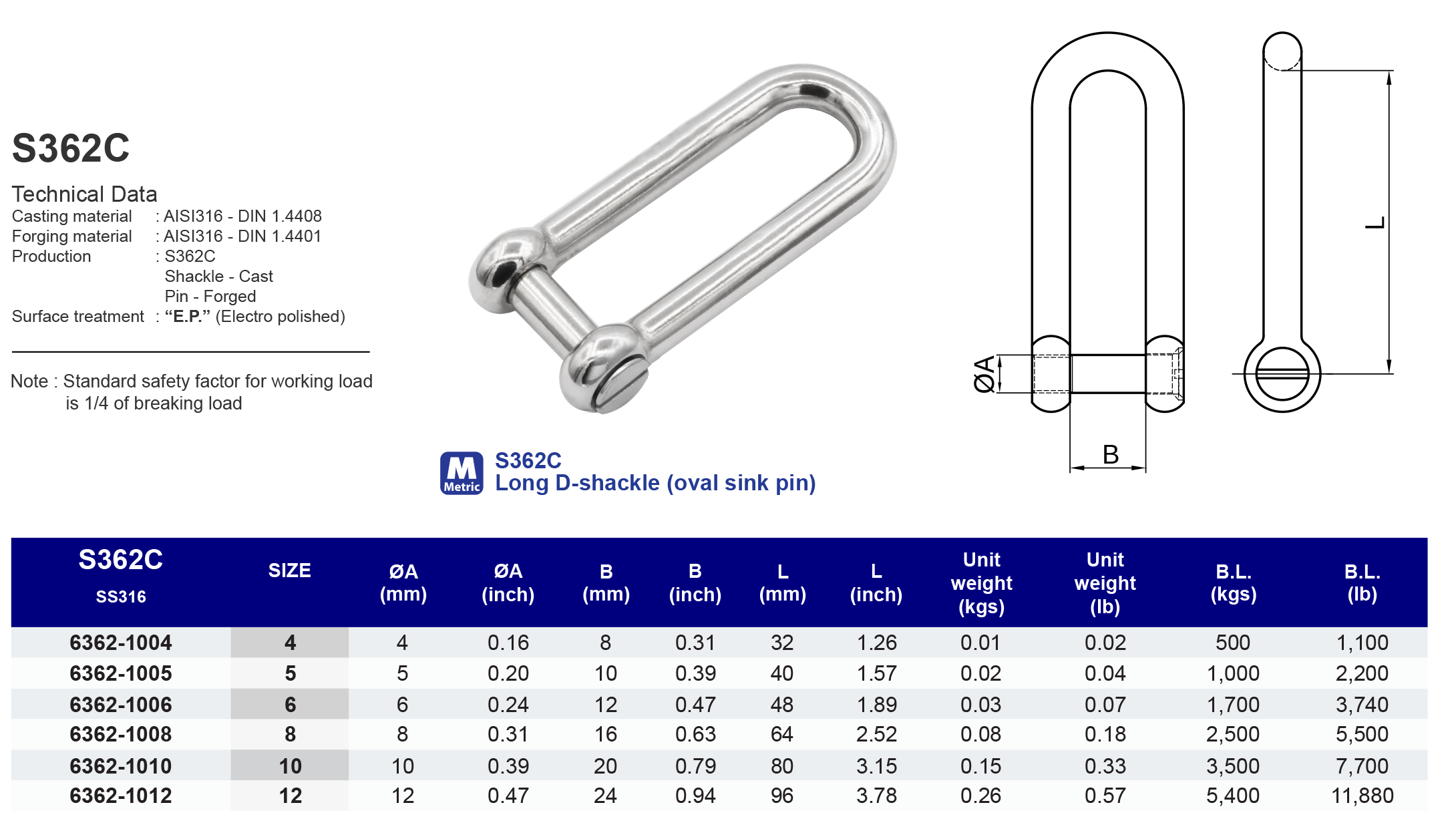

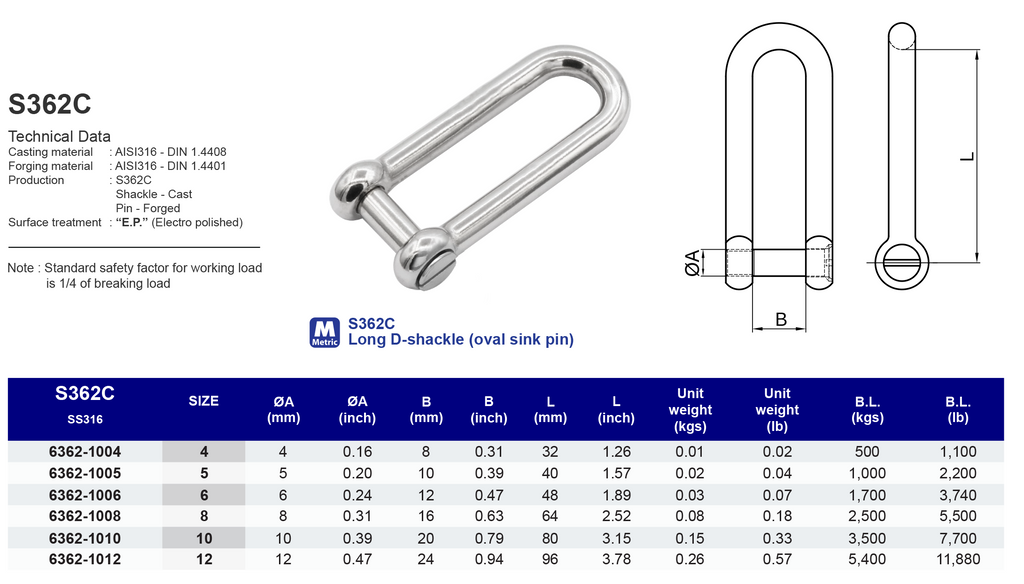

Model
S362C

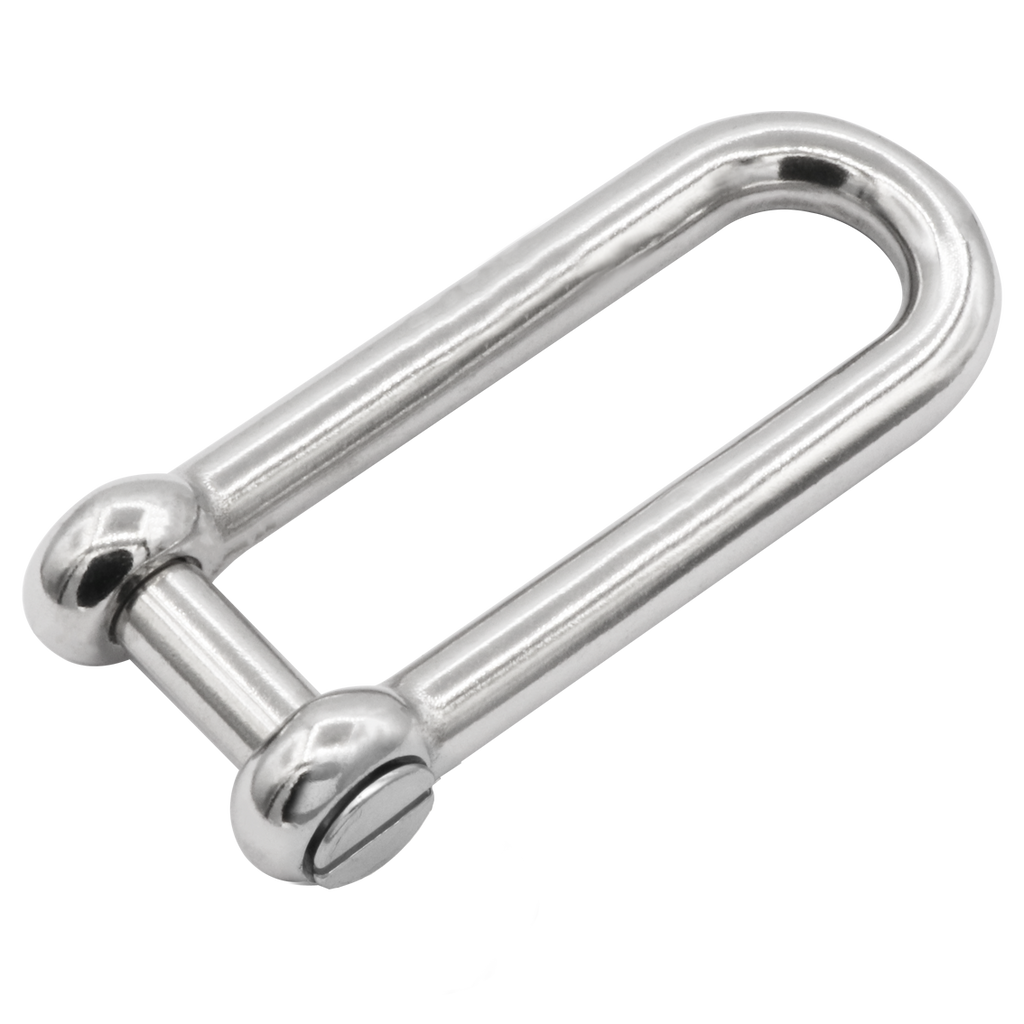

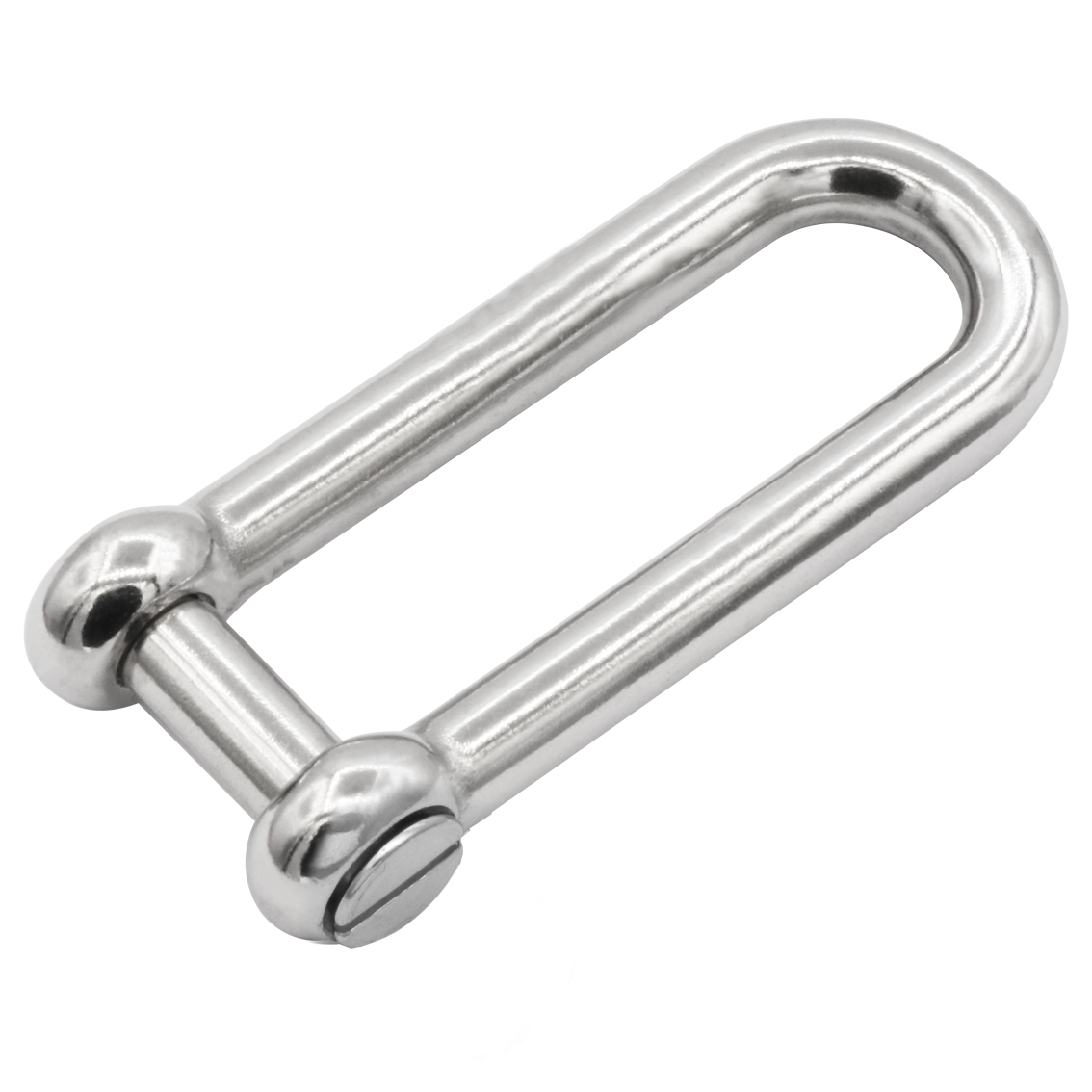

Long D-shackle (oval sink pin)
316 ss
| SS316 | Size | ØA (mm) | B (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 6362-1004 | 4 | 4 | 8 | 32 | 0.01 | 500 |
| 6362-1005 | 5 | 5 | 10 | 40 | 0.02 | 1,000 |
| 6362-1006 | 6 | 6 | 12 | 48 | 0.03 | 1,700 |
| 6362-1008 | 8 | 8 | 16 | 64 | 0.08 | 2,500 |
| 6362-1010 | 10 | 10 | 20 | 80 | 0.15 | 3,500 |
| 6362-1012 | 12 | 12 | 24 | 96 | 0.26 | 5,400 |
| SS316 | Size | ØA (inch) | B (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 6362-1004 | 5/32 | 0.16 | 0.31 | 1.26 | 0.02 | 1,100 |
| 6362-1005 | 3/16" | 0.20 | 0.39 | 1.57 | 0.04 | 2,200 |
| 6362-1006 | 1/4" | 0.24 | 0.47 | 1.89 | 0.07 | 3,740 |
| 6362-1008 | 5/16" | 0.31 | 0.63 | 2.52 | 0.18 | 5,500 |
| 6362-1010 | 3/8" | 0.39 | 0.79 | 3.15 | 0.33 | 7,700 |
| 6362-1012 | 15/32" | 0.47 | 0.94 | 3.78 | 0.57 | 11,880 |
