Description

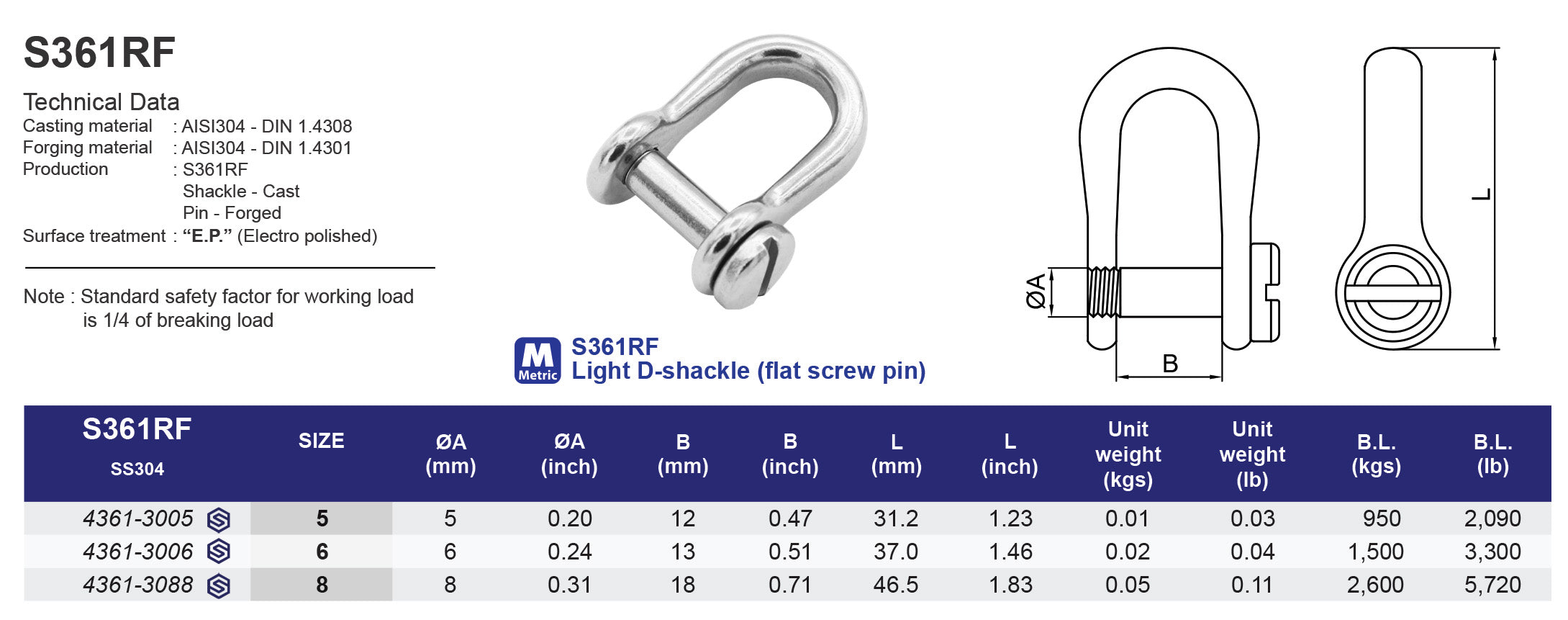

Technical Data:
Casting Material: AISI304 - DIN 1.4301
Forging Material: AISI304 - DIN 1.4301
Production: S361RF - Shackle - Cast
Pin - Forged
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load

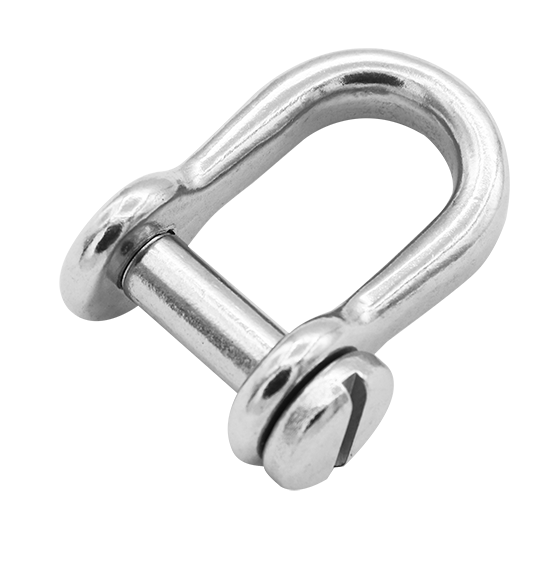

Model
SF361R
Sheet shackle
304 ss
| SS304 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 13610004 | 4 | 4 | 10 | 24.5 | 0.01 | 600 |
| 13610005 | 5 | 5 | 11 | 30.7 | 0.01 | 1,000 |
| 13610006 | 6 | 6 | 14 | 37.0 | 0.02 | 1,600 |
| 13610008 | 8 | 8 | 18 | 49.0 | 0.05 | 2,800 |
| SS304 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 13610004 | 5/32" | 0.16 | 0.39 | 0.96 | 0.02 | 1,320 |
| 13610005 | 3/16" | 0.20 | 0.43 | 1.21 | 0.02 | 2,200 |
| 13610006 | 1/4" | 0.24 | 0.55 | 1.46 | 0.04 | 3,520 |
| 13610008 | 5/16" | 0.31 | 0.71 | 1.93 | 0.11 | 6,160 |
