Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308/
AISI316 - DIN 1.4408
Forging Material: AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production: S360CP - Shackle - Cast
Pin - See chart
SF360CP - Shackle - Forged
Pin - Forged
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working
load is 1/4 of breaking load
Model
S360CP

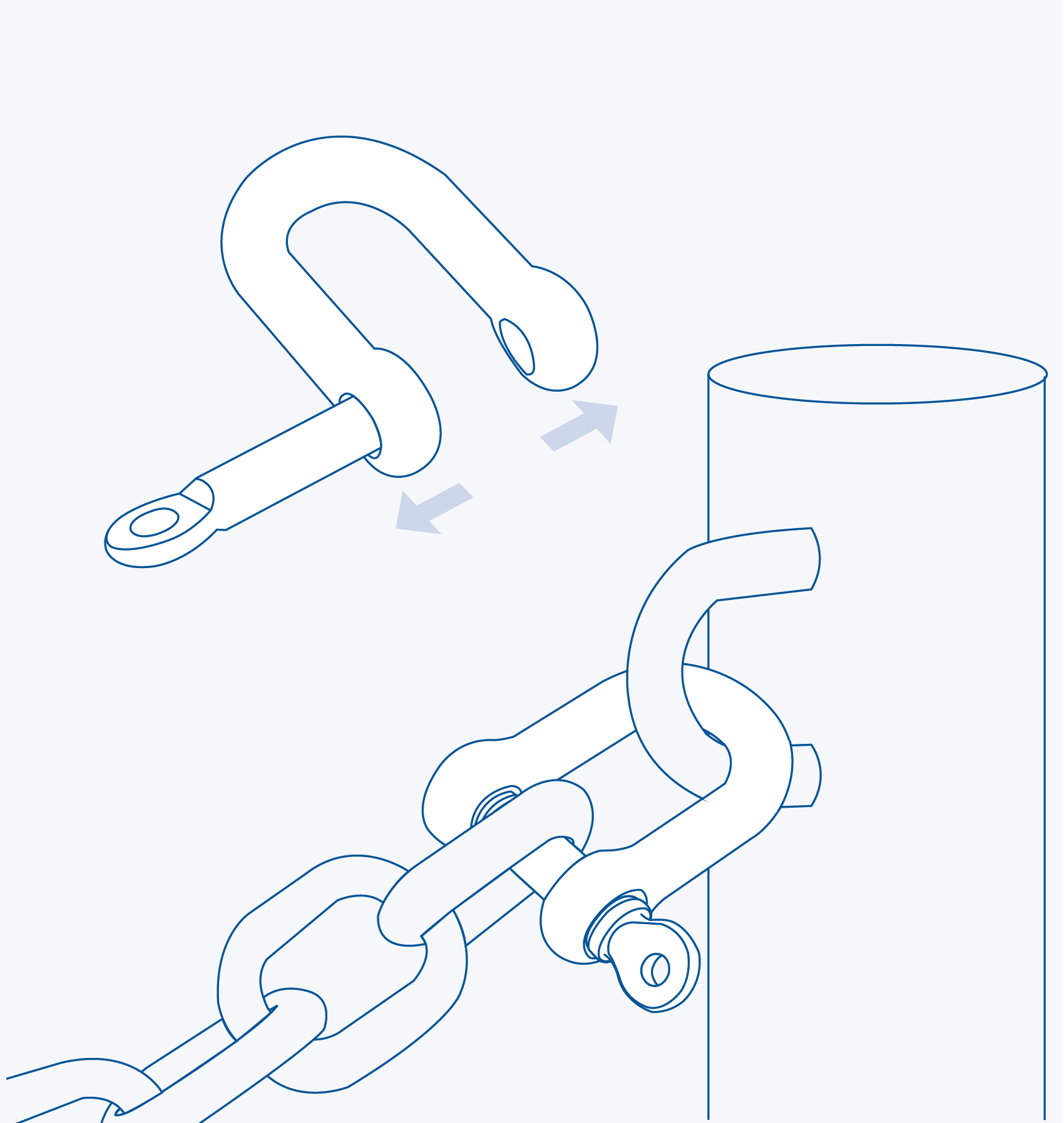

D-Shackle Collared Pin
316 ss
| SS316 | Size | ØA (mm) | ØB(mm) | L(mm) | Pin | Unit weight(kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|---|
| 63600423 | 3 | 3 | 8 | 12 | Forged | 0.01 | 400 |
| 63600424 | 4 | 4 | 8 | 16 | Forged | 0.01 | 550 |
| 63604405 | 5 | 5 | 10 | 20 | Forged | 0.01 | 1,000 |
| 63602006 | 6 | 6 | 12 | 24 | Forged | 0.02 | 1,700 |
| 63602007 | 7 | 7 | 14 | 28 | Forged | 0.04 | 2,000 |
| 63605208 | 8 | 8 | 16 | 32 | Forged | 0.06 | 2,800 |
| 63605209 | 9 | 9 | 18 | 36 | Forged | 0.08 | 3,500 |
| 63600410 | 10 | 10 | 20 | 40 | Forged | 0.11 | 4,500 |
| 63600412 | 12 | 12 | 24 | 48 | Forged | 0.20 | 6,000 |
| 63600413 | 13 | 13 | 26 | 52 | Forged | 0.25 | 6,500 |
| 63600414 | 14 | 14 | 28 | 56 | Cast | 0.30 | 7,000 |
| 63600416 | 16 | 16 | 32 | 64 | Forged | 0.47 | 10,000 |
| 63600419 | 19 | 19 | 38 | 76 | Forged | 0.76 | 15,000 |
| 63600422 | 22 | 22 | 44 | 88 | Cast | 1.13 | 19,000 |
| 63600425 | 25 | 25 | 50 | 100 | Forged | 1.71 | 23,000 |
| 63600428 | 28 | 28 | 56 | 112 | Cast | 2.27 | 26,000 |
| 6360-0432 | 32 | 32 | 64 | 128 | Cast | 3.50 | 38,000 |
| SS316 | Size | ØA (inch) | ØB(inch) | L(inch) | Pin | Unit weight(lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63600423 | 3 | 0.12 | 0.31 | 0.47 | Forged | 0.02 | 880 |
| 63600424 | 4 | 0.16 | 0.31 | 0.63 | Forged | 0.02 | 1,210 |
| 63604405 | 5 | 0.20 | 0.39 | 0.79 | Forged | 0.02 | 2,200 |
| 63602006 | 6 | 0.24 | 0.47 | 0.94 | Forged | 0.04 | 3,740 |
| 63602007 | 7 | 0.28 | 0.55 | 1.10 | Forged | 0.09 | 4,400 |
| 63605208 | 8 | 0.31 | 0.63 | 1.26 | Forged | 0.13 | 6,160 |
| 63605209 | 9 | 0.35 | 0.71 | 1.42 | Forged | 0.18 | 7,700 |
| 63600410 | 10 | 0.39 | 0.79 | 1.57 | Forged | 0.24 | 9,900 |
| 63600412 | 12 | 0.47 | 0.94 | 1.89 | Forged | 0.44 | 13,200 |
| 63600413 | 13 | 0.51 | 1.02 | 2.05 | Forged | 0.55 | 14,300 |
| 63600414 | 14 | 0.55 | 1.10 | 2.20 | Cast | 0.66 | 15,400 |
| 63600416 | 16 | 0.63 | 1.26 | 2.52 | Forged | 1.03 | 22,000 |
| 63600419 | 19 | 0.75 | 1.50 | 2.99 | Forged | 1.67 | 33,000 |
| 63600422 | 22 | 0.87 | 1.73 | 3.46 | Cast | 2.49 | 41,800 |
| 636-0425 | 25 | 0.98 | 1.97 | 3.94 | Forged | 3.76 | 50,600 |
| 63600428 | 28 | 1.10 | 2.20 | 4.41 | Cast | 4.99 | 57,200 |
| 63600432 | 32 | 1.26 | 2.52 | 5.04 | Cast | 7.70 | 83,600 |
