S360CP D-Shackle (Collared Pin) - 304 (CLEARANCE SALE)

SKU: 43605209

Size (mm): 9mm (Min 300pcs)
Price:

Login to view the price.

Stock:
Login to view stock.

Description


Technical Data
Casting Material : AISI304 - DIN 1.4308
Forging Material : AISI304 - DIN 1.4301
Production: S360CP - Shackle - Cast Pin - See chart
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load

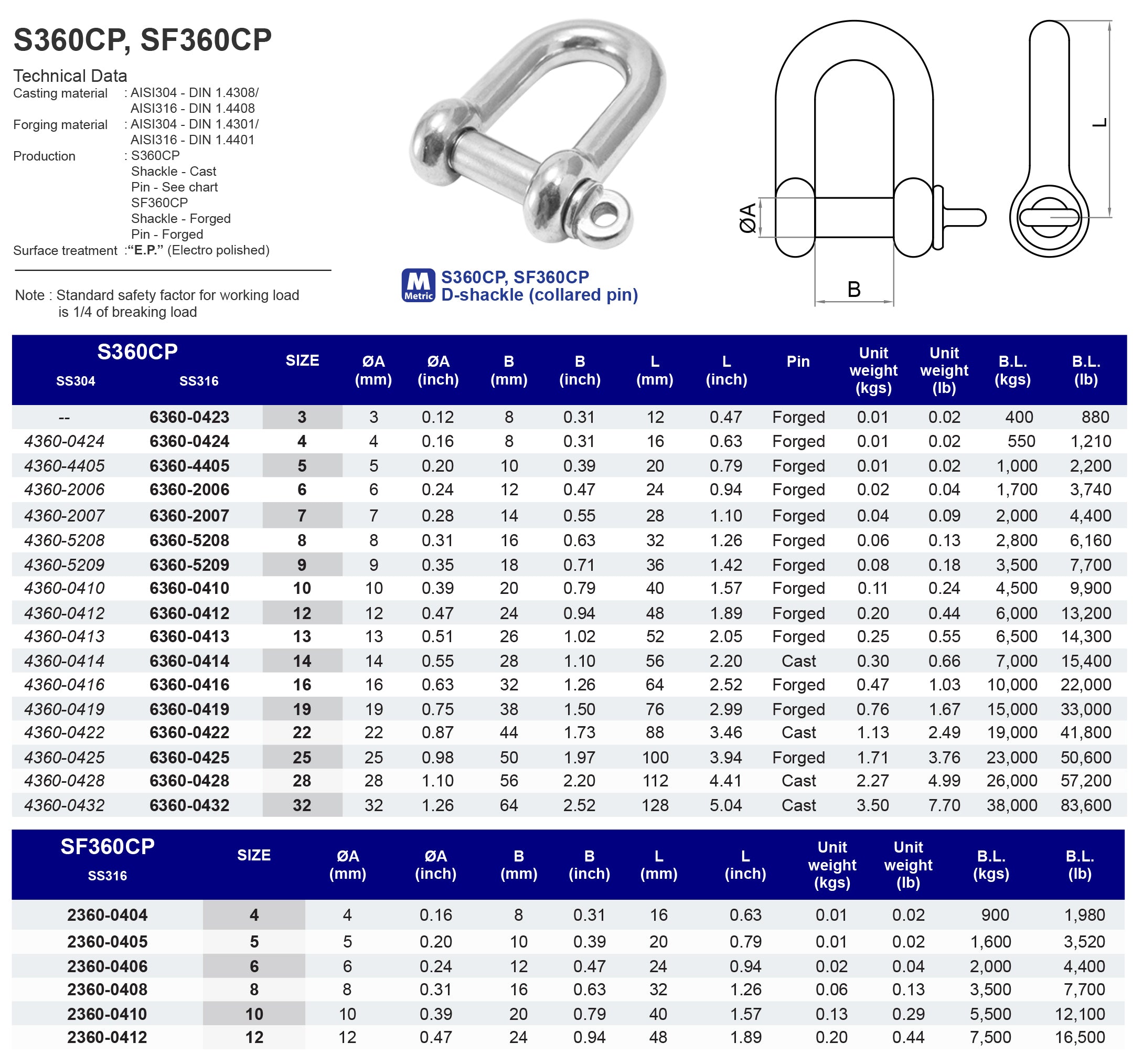

DATA SHEET DOWNLOAD

Model

S360CP

D-Shackle Collared Pin
316 ss

S360CP drawing

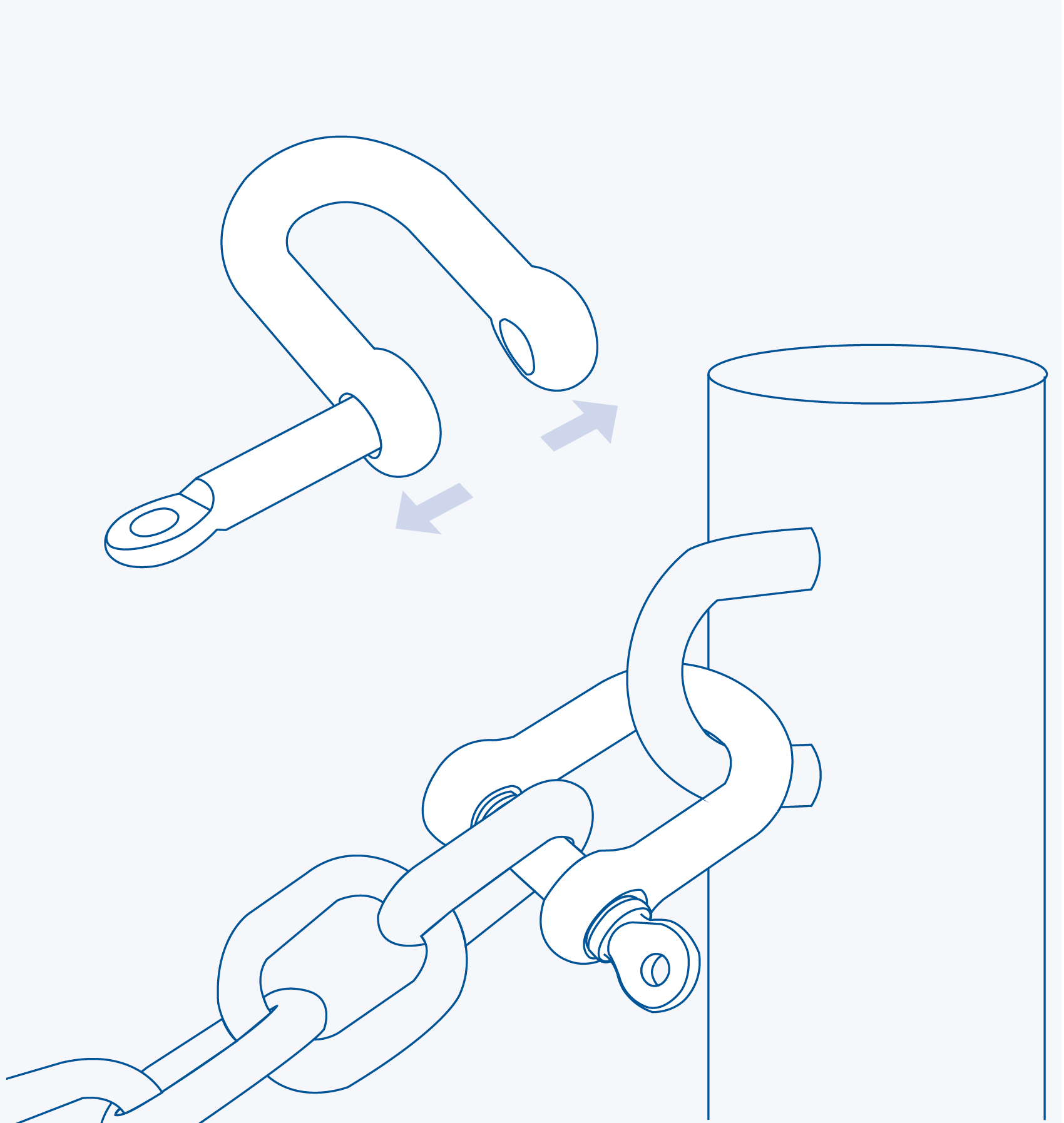

S360CP image
SS304Size"ØA (mm)""ØB(mm)""L(mm)"Pin"Unit weight(kgs)""B.L.(kgs)"
--33812Forged0.01400
4360042444816Forged0.01550
43604405551020Forged0.011,000
43602006661224Forged0.021,700
43602007771428Forged0.042,000
43605208881632Forged0.062,800
43605209991836Forged0.083,500
4360041010102040Forged0.114,500
4360041212122448Forged0.206,000
4360041313132652Forged0.256,500
4360041414142856Cast0.307,000
4360041616163264Forged0.4710,000
4360041919193876Forged0.7615,000
4360042222224488Cast1.1319,000
43600425252550100Forged1.7123,000
43600428282856112Cast2.2726,000
43600432323264128Cast3.5038,000
SS304Size"ØA(inch)""ØB(inch)""L(inch)"Pin"Unit weight(lb)""B.L.(lb)"
30.120.310.47Forged0.02880
4360042440.160.310.63Forged0.021,210
4360440550.200.390.79Forged0.022,200
4360200660.240.470.94Forged0.043,740
4360200770.280.551.10Forged0.094,400
4360520880.310.631.26Forged0.136,160
4360520990.350.711.42Forged0.187,700
43600410100.390.791.57Forged0.249,900
43600412120.470.941.89Forged0.4413,200
43600413130.511.022.05Forged0.5514,300
43600414140.551.102.20Cast0.6615,400
43600416160.631.262.52Forged1.0322,000
43600419190.751.502.99Forged1.6733,000
43600422220.871.733.46Cast2.4941,800
43600425250.981.973.94Forged3.7650,600
43600428281.102.204.41Cast4.9957,200
43600432321.262.525.04Cast7.7083,600
