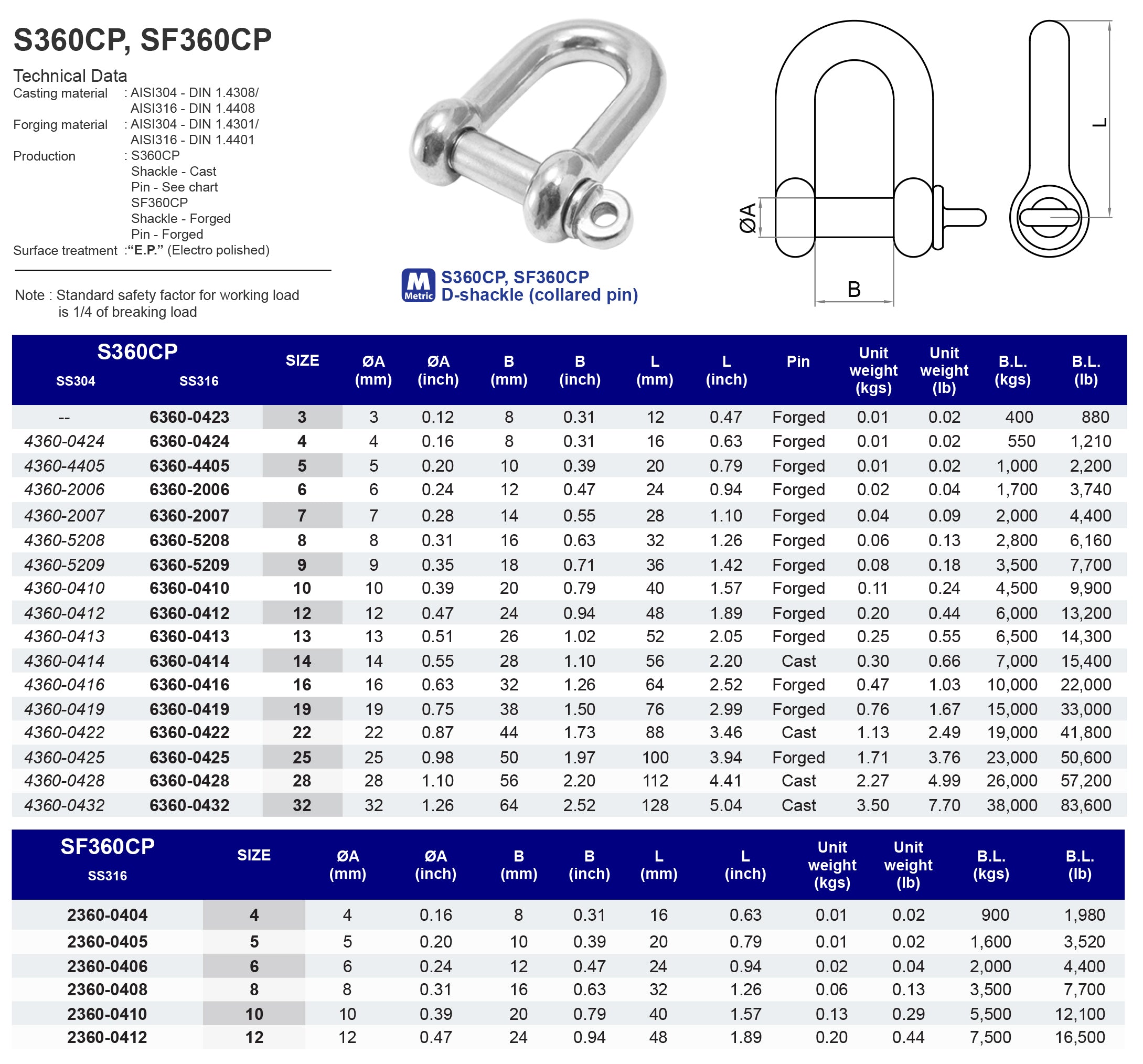

S360CP, SF360CP D-shackle (collared pin)

Technical Data:
Casting Material: AISI304 - DIN 1.4308/
                           AISI316 - DIN 1.4408
Forging Material: AISI304 - DIN 1.4301/
                           AISI316 - DIN 1.4401
Production: S360CP - Shackle - Cast
                                   Pin - See chart
SF360CP - Shackle - Forged
                                  Pin - Forged
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working
load is 1/4 of breaking load

DATA SHEET DOWNLOAD
