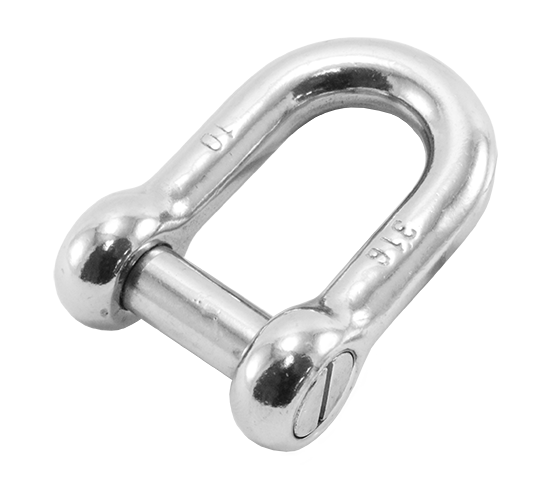

S360C D-shackle (oval sink pin) - 316

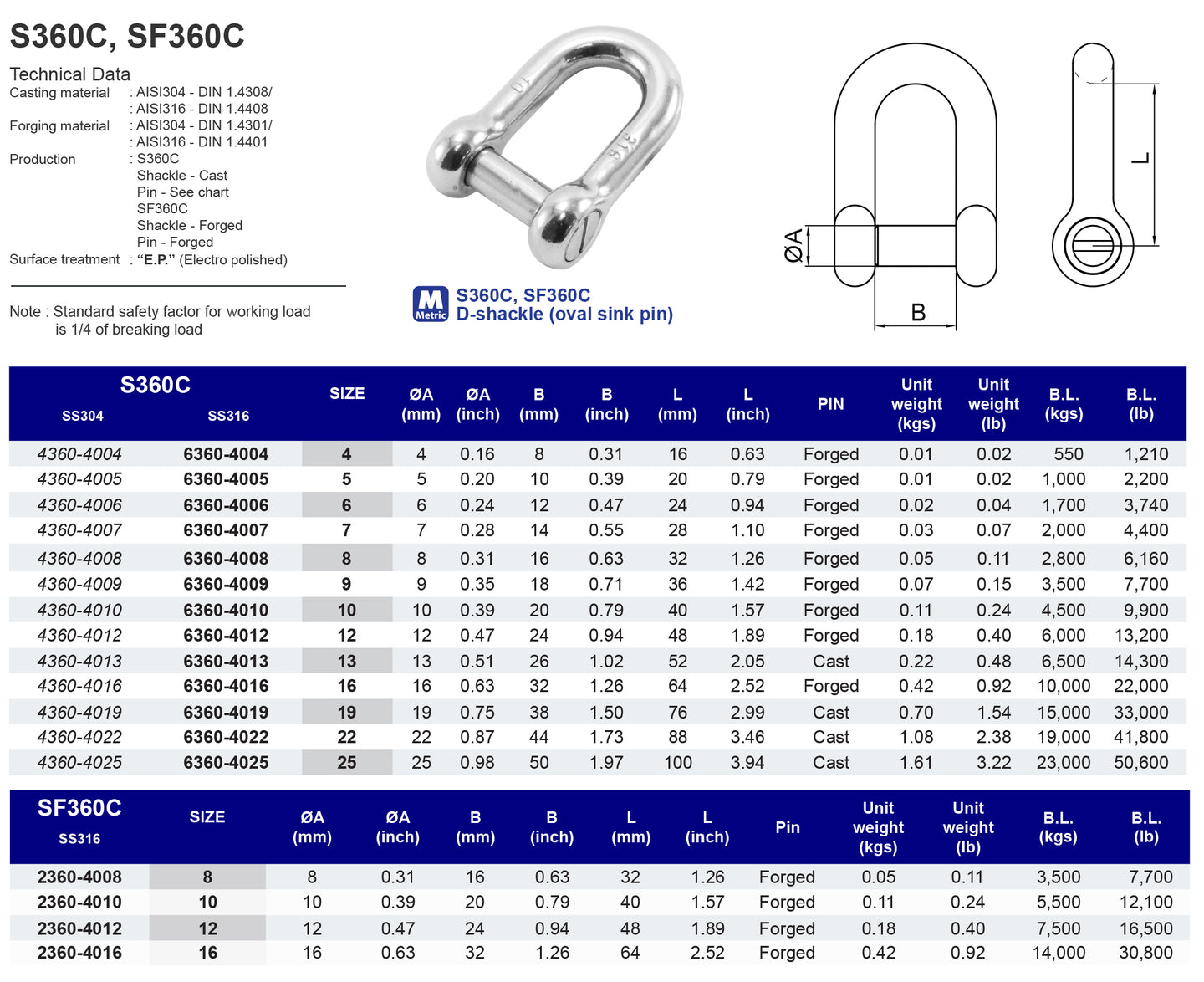

Technical Data:
Casting Material: AISI304 - DIN 1.4308/
AISI316 - DIN 1.4408
Forging Material: AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production: S360C - Shackle - Cast
Pin - See chart
SF360C - Shackle - Forged
Pin - Forged

Surface Treatment: “E.P.” (Electro polished)

DATA SHEET DOWNLOAD
