Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

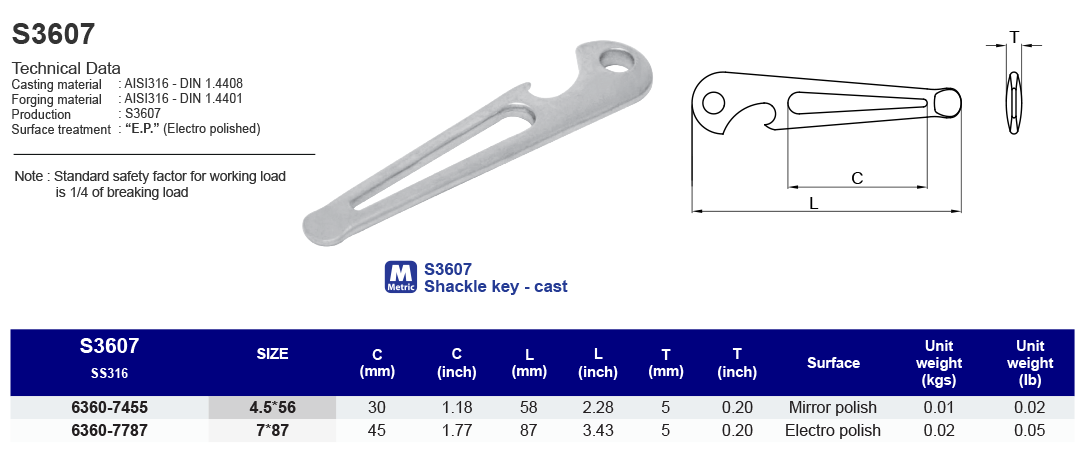

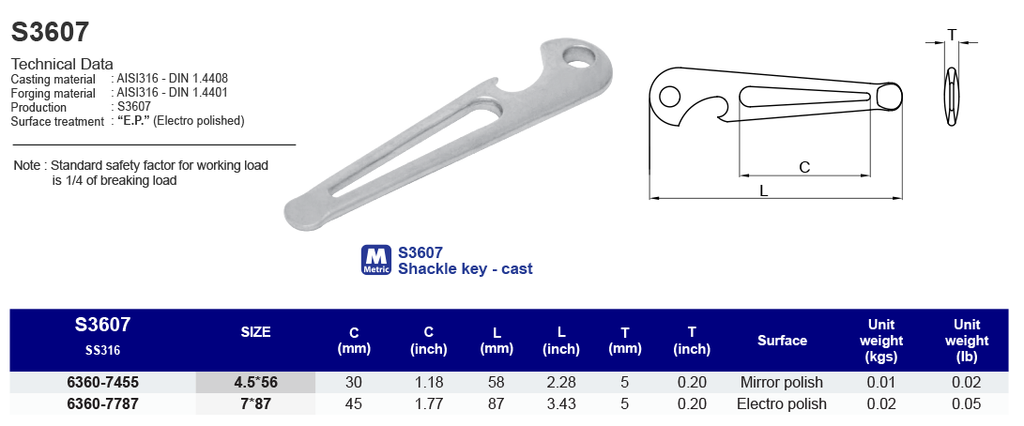

Model
S3607

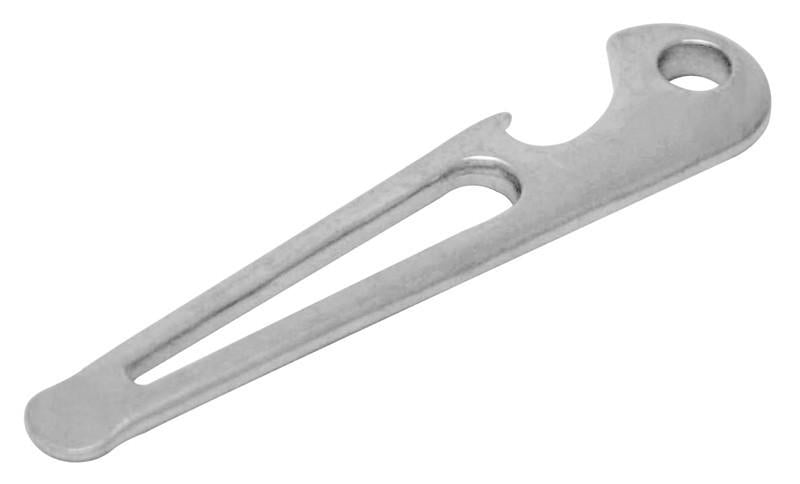

Shackle key - cast
316 ss
| SS316 | Size | C (mm) | L (mm) | T (mm) | Surface | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 6360-7455 | 4.5*56 | 30 | 58 | 5 | Mirror polish | 0.01 |
| 6360-7787 | 7*87 | 45 | 87 | 5 | Electro polish | 0.02 |
| SS316 | Size | C (inch) | L (inch) | T (inch) | Surface | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 6360-7455 | 4.5*56 | 1.18 | 2.28 | 0.20 | Mirror polish | 0.02 |
| 6360-7787 | 7*87 | 1.77 | 3.43 | 0.20 | Electro polish | 0.05 |
