Description

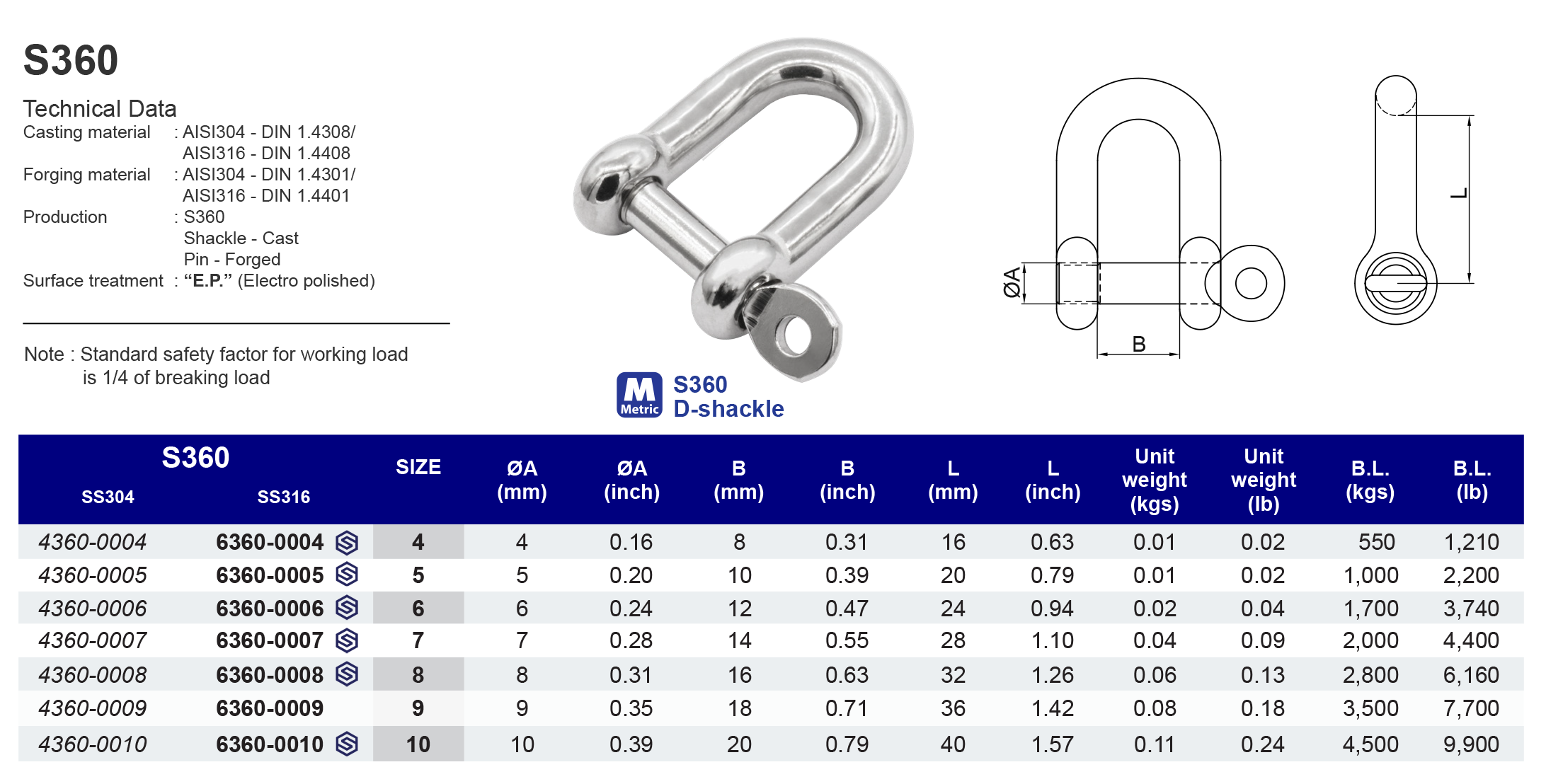

Technical Data:
Casting Material:
AISI316 - DIN 1.4408
Forging Material:
AISI316 - DIN 1.4401
Production:
S360 - Shackle - Cast Pin - Forged
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

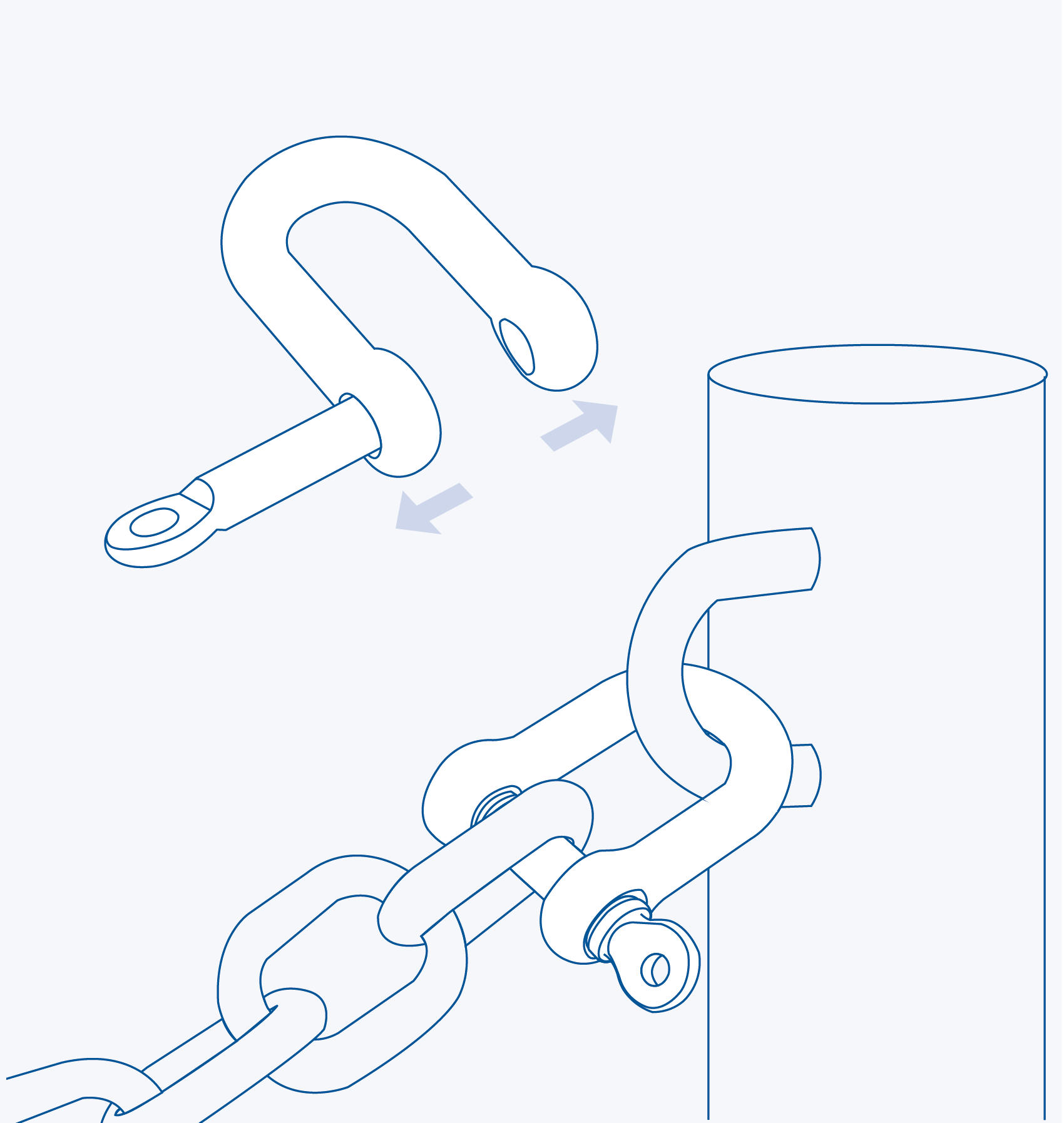

Model
S360

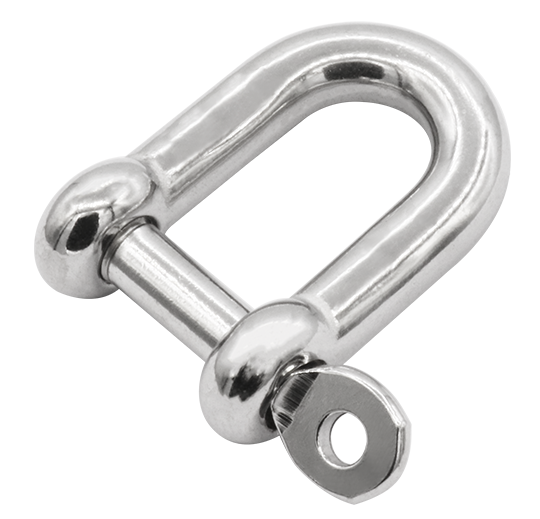

D- shackle
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63600004 | 4 | 4 | 8 | 16 | 0.01 | 550 |
| 63600005 | 5 | 5 | 10 | 20 | 0.01 | 1,000 |
| 63600006 | 6 | 6 | 12 | 24 | 0.02 | 1,700 |
| 63600007 | 7 | 7 | 14 | 28 | 0.04 | 2,000 |
| 63600008 | 8 | 8 | 16 | 32 | 0.06 | 2,800 |
| 63600009 | 9 | 9 | 18 | 36 | 0.08 | 3,500 |
| 63600010 | 10 | 10 | 20 | 40 | 0.11 | 4,500 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 23605005 | 3/16" | 0.21 | 0.39 | 0.79 | 0.04 | 3,300 |
| 23605006 | 1/4" | 0.25 | 0.47 | 0.94 | 0.07 | 4,840 |
| 23605008 | 5/16" | 0.31 | 0.63 | 1.26 | 0.13 | 8,360 |
| 23605010 | 3/8" | 0.39 | 0.79 | 1.57 | 0.26 | 10,560 |
| 23605012 | 15/32" | 0.49 | 0.94 | 1.89 | 0.46 | 17,600 |
