Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S330 - Hook - Cast
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load is 1/4 of breaking load DATA SHEET DOWNLOAD
Model
S330

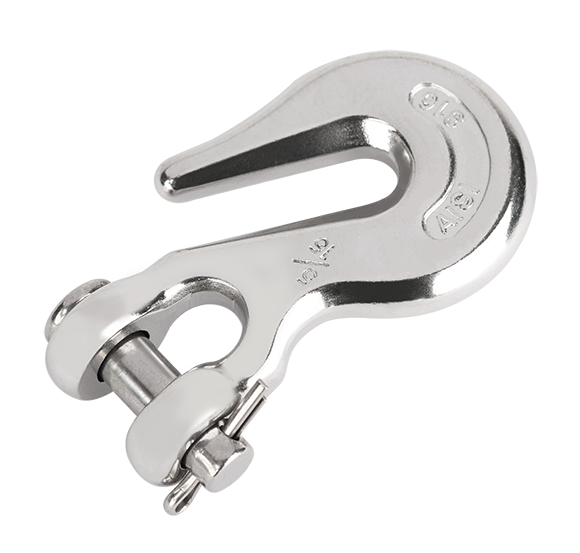

Grab hook (clevis end)
316 ss
| SS316 | Size | ØA (mm) | B (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63300104 | 1/4" | 9.5 | 11.1 | 79.6 | 8.7 | 0.16 | 2,250 |
| 63300516 | 5/16" | 11.5 | 12.7 | 96.0 | 11.1 | 0.29 | 3,500 |
| 63300308 | 3/8" | 12.7 | 15.0 | 108.6 | 12.7 | 0.41 | 5,000 |
| 63300102 | 1/2" | 17.0 | 19.0 | 143.7 | 16.6 | 0.89 | 8,500 |
| SS316 | Size | ØA (inch) | B (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L.(lb) |
|---|---|---|---|---|---|---|---|
| 63300104 | 1/4" | 0.37 | 0.44 | 3.13 | 0.34 | 0.35 | 4,620 |
| 63300516 | 5/16" | 0.45 | 0.50 | 3.78 | 0.44 | 0.64 | 6,820 |
| 63300308 | 3/8" | 0.50 | 0.59 | 4.28 | 0.50 | 0.90 | 8,800 |
| 63300102 | 1/2" | 0.67 | 0.75 | 5.66 | 0.65 | 1.96 | 16,170 |
