Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S3291 - Screw - Cast
Surface Treatment: “E.P.” (Electro polished)

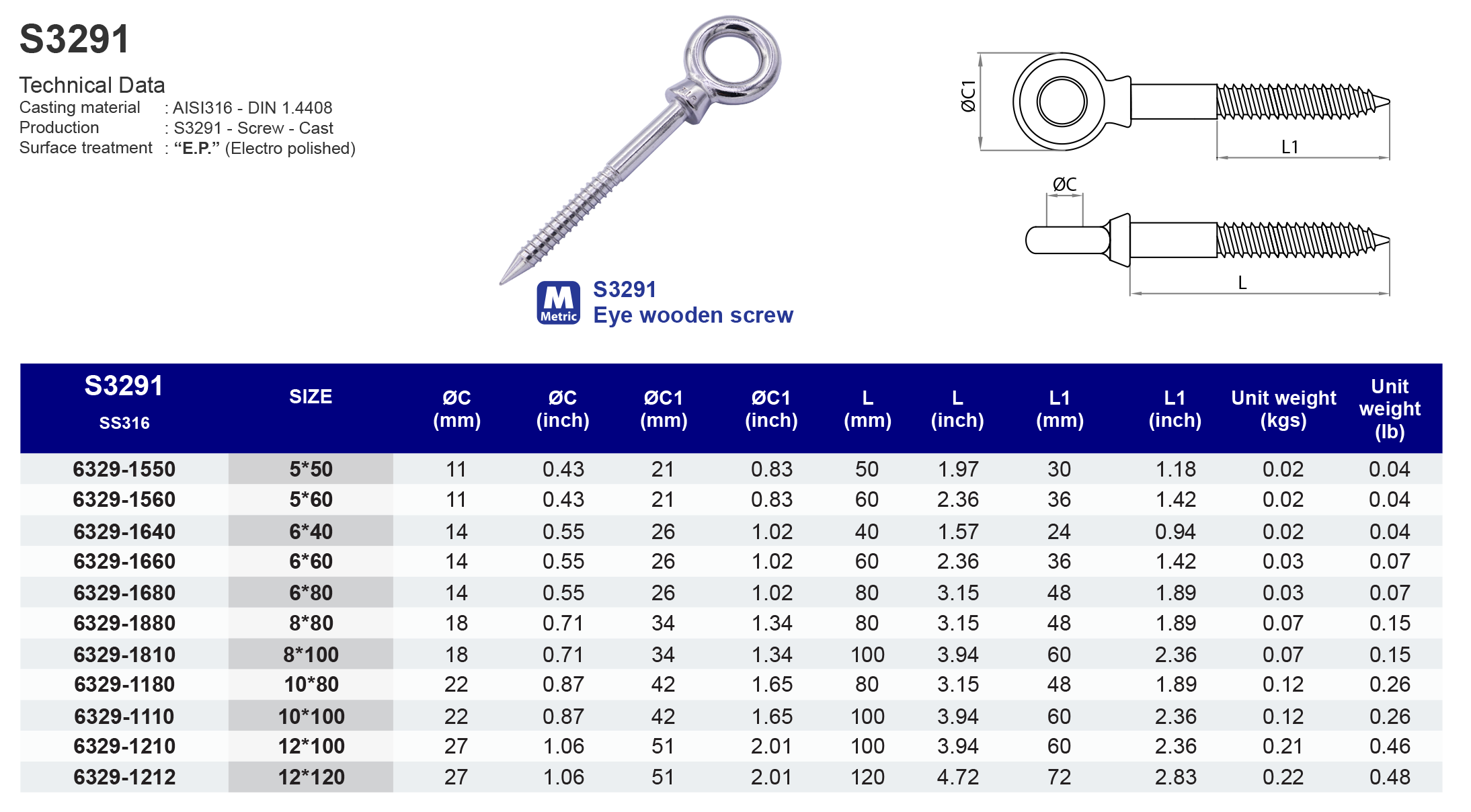

Model
S3291

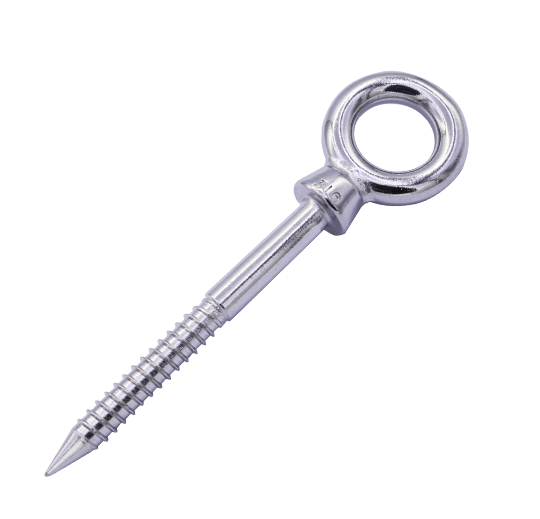

Eye wooden screw
316 ss
| SS316 | Size | ØC (mm) | ØC1 (mm) | L (mm) | L1 (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 63291550 | 5*50 | 11 | 21 | 50 | 30 | 0.02 |
| 63291560 | 5*60 | 11 | 21 | 60 | 36 | 0.02 |
| 63291640 | 6*40 | 14 | 26 | 40 | 24 | 0.02 |
| 63291660 | 6*60 | 14 | 26 | 60 | 36 | 0.03 |
| 63291680 | 6*80 | 14 | 26 | 80 | 48 | 0.03 |
| 63291880 | 8*80 | 18 | 34 | 80 | 48 | 0.07 |
| 63291810 | 8*100 | 18 | 34 | 100 | 60 | 0.07 |
| 63291180 | 10*80 | 22 | 42 | 80 | 48 | 0.12 |
| 63291110 | 10*100 | 22 | 42 | 100 | 60 | 0.12 |
| 63291210 | 12*100 | 27 | 51 | 100 | 60 | 0.21 |
| 63291212 | 12*120 | 27 | 51 | 120 | 72 | 0.22 |
| SS316 | Size | ØC (inch) | ØC1 (inch) | L (inch) | L1 (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 63291550 | 5*50 | 0.43 | 0.83 | 1.97 | 1.18 | 0.04 |
| 63291560 | 5*60 | 0.43 | 0.83 | 2.36 | 1.42 | 0.04 |
| 63291640 | 6*40 | 0.55 | 1.02 | 1.57 | 0.94 | 0.04 |
| 63291660 | 6*60 | 0.55 | 1.02 | 2.36 | 1.42 | 0.07 |
| 63291680 | 6*80 | 0.55 | 1.02 | 3.15 | 1.89 | 0.07 |
| 63291880 | 8*80 | 0.71 | 1.34 | 3.15 | 1.89 | 0.15 |
| 63291810 | 8*100 | 0.71 | 1.34 | 3.94 | 2.36 | 0.15 |
| 63291180 | 10*80 | 0.87 | 1.65 | 3.15 | 1.89 | 0.26 |
| 63291110 | 10*100 | 0.87 | 1.65 | 3.94 | 2.36 | 0.26 |
| 63291210 | 12*100 | 1.06 | 2.01 | 3.94 | 2.36 | 0.46 |
| 63291212 | 12*120 | 1.06 | 2.01 | 4.72 | 2.83 | 0.48 |
