Description

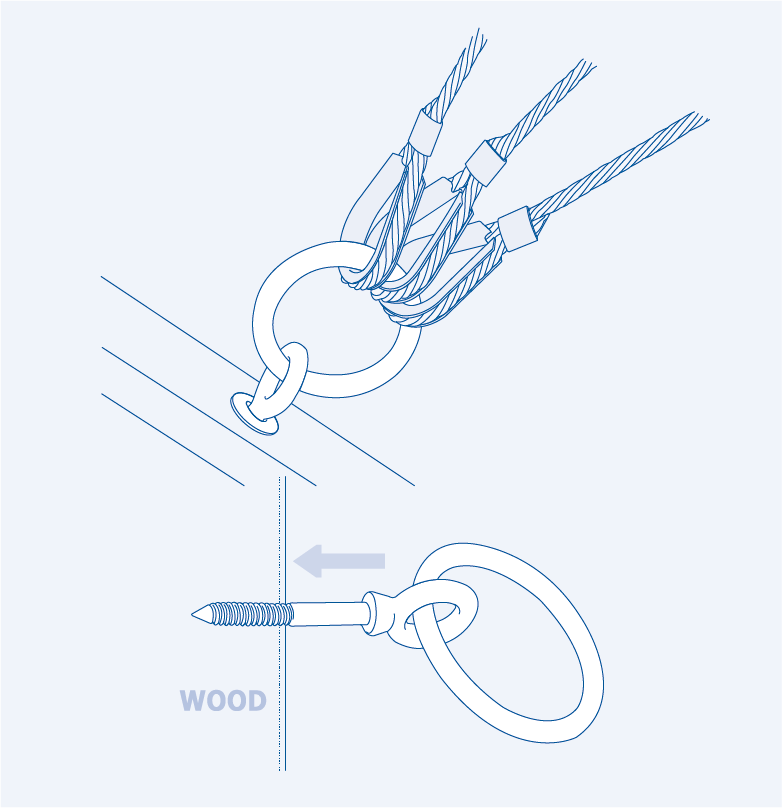

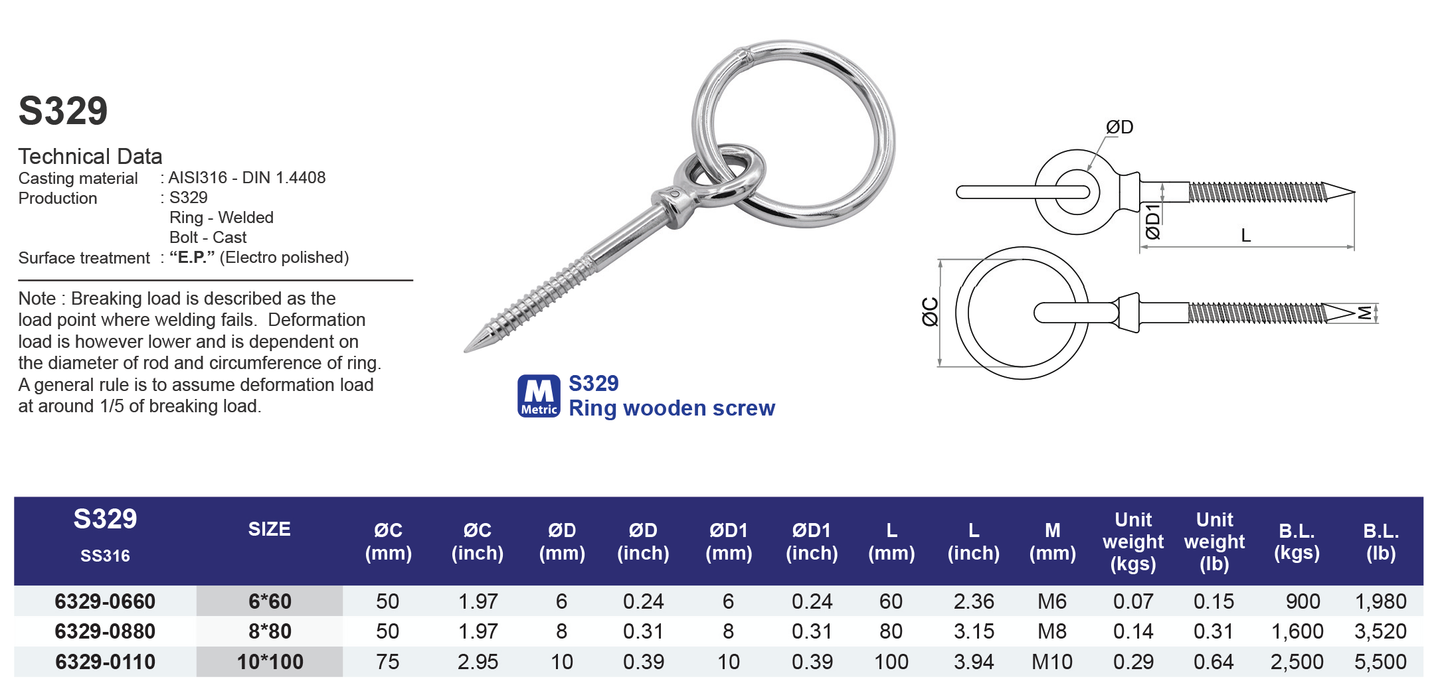

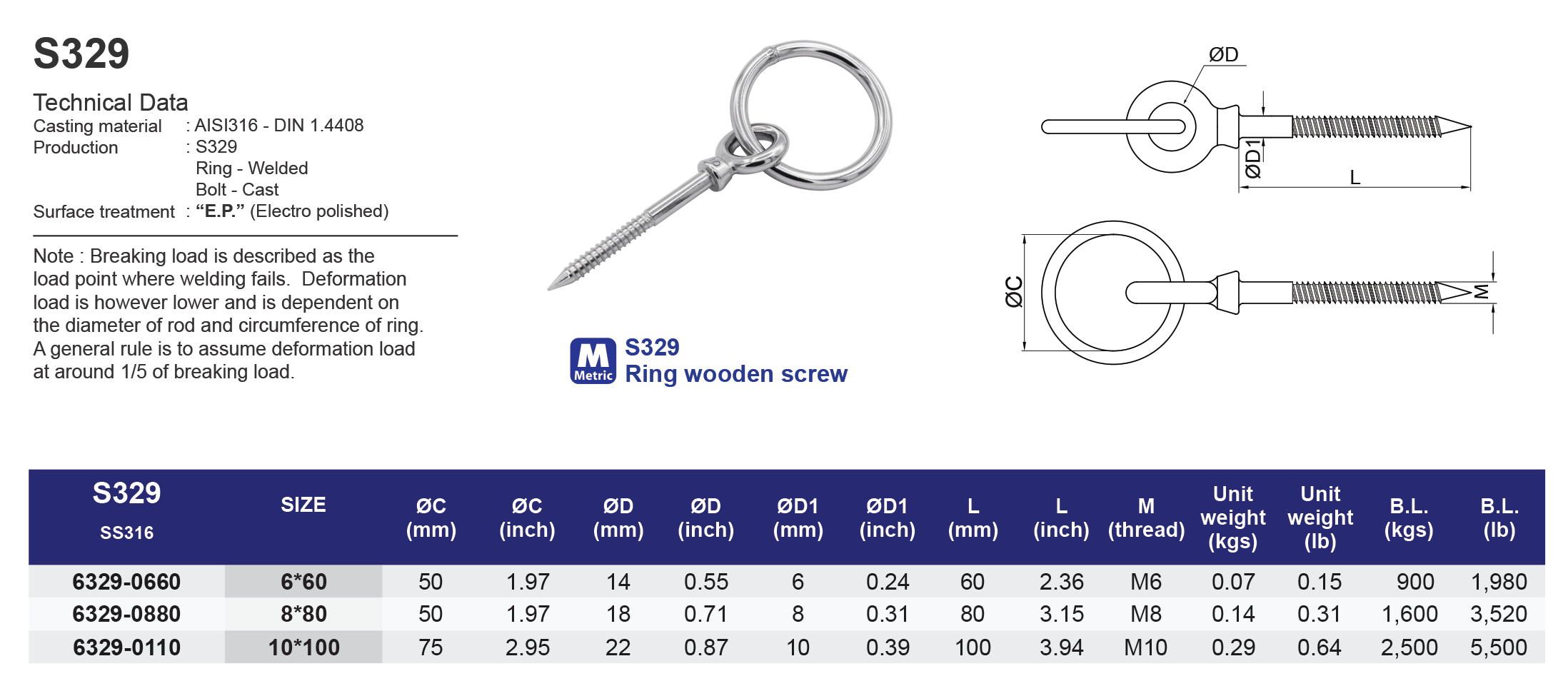

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S329 - Ring - Welded
Bolt - Cast
Surface Treatment: “E.P.” (Electro polished)
Note : Breaking load is described as the
load point where welding fails. Deformation
load is however lower and is dependent on
the diameter of rod and circumference of ring.
A general rule is to assume deformation load
at around 1/5 of breaking load.
Model
S329

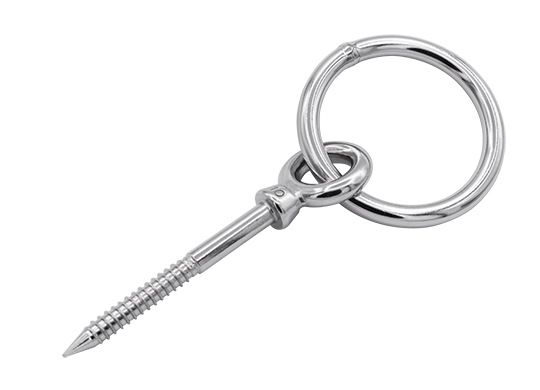

Ring wooden screw
316 ss
| SS316 | Size | ØC (mm) | ØD (mm) | ØD1 (mm) | L (mm) | M (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 63290660 | 6*60 | 50 | 6 | 6 | 60 | M6 | 0.07 | 900 |
| 63290880 | 8*80 | 50 | 8 | 8 | 80 | M8 | 0.14 | 1,600 |
| 63290110 | 10*100 | 75 | 10 | 10 | 100 | M10 | 0.29 | 2,500 |
| SS316 | Size | ØC (inch) | ØD (inch) | ØD1 (inch) | L (inch) | M (mm) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 63290660 | 1/4" x 2-3/8" | 1.97 | 0.24 | 0.24 | 2.36 | M6 | 0.15 | 1,980 |
| 63290880 | 5/16" x 3-1/4" | 1.97 | 0.31 | 0.31 | 3.15 | M8 | 0.31 | 3,520 |
| 63290110 | 3/8" x 4" | 2.95 | 0.39 | 0.39 | 3.94 | M10 | 0.64 | 5,500 |
