Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408 Forging material: AISI304 - DIN 1.4301
Production: S3230 - Anchor - Welded
Surface Treatment:“E.P.” (Mirror polished) DATA SHEET DOWNLOAD
Model
S3230

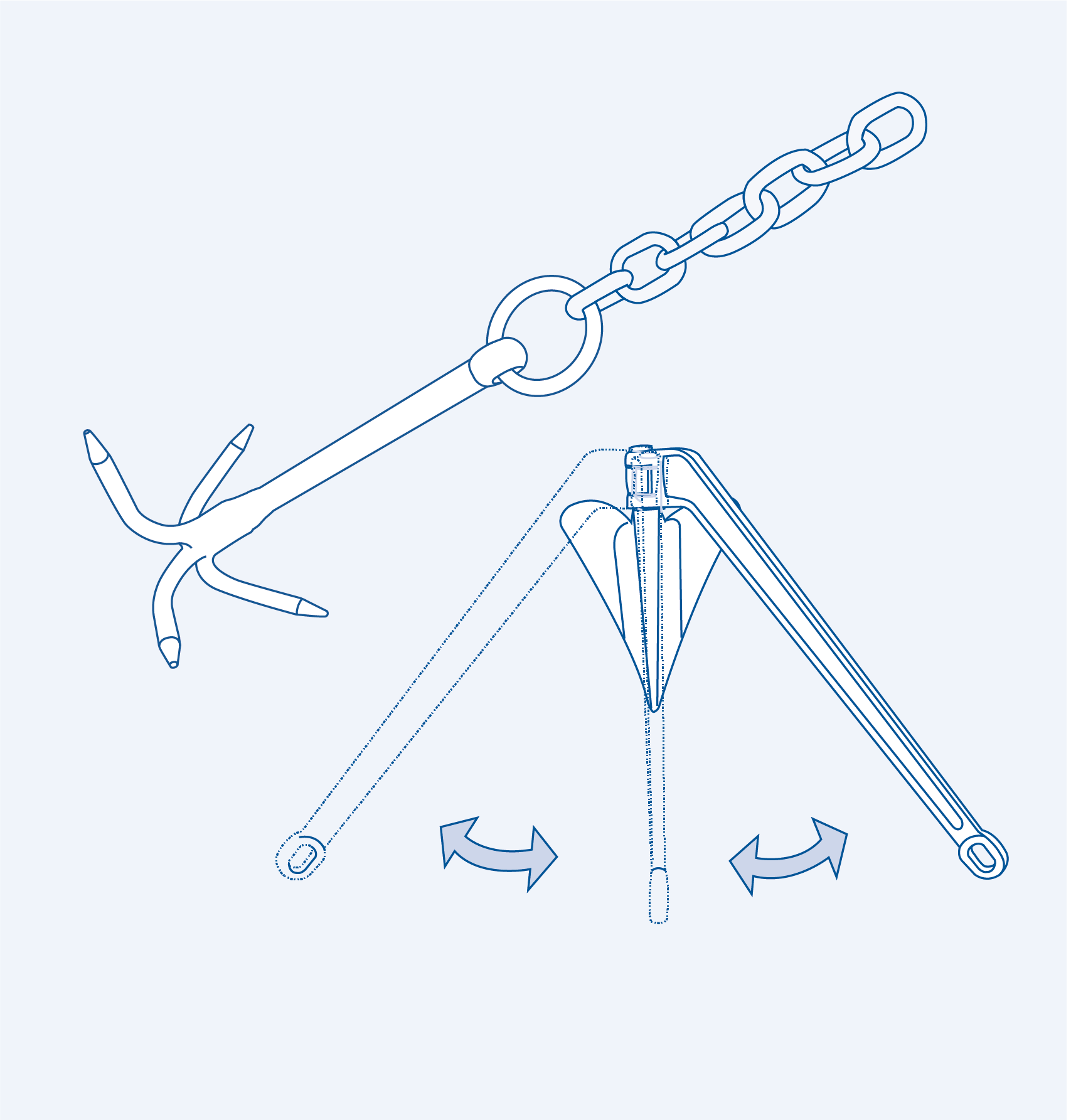

Hook anchor
316 ss
| SS316 | SIZE | B (mm) | L (mm) | M (inch) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 63010405 | 4.5" | 30.5 | 121.6 | 5/16"-18UNC | 0.43 |
| 63010600 | 6.0" | 38 | 160 | 3/8"-16UNC | 0.72 |
| 63010800 | 8.0" | 51 | 214.3 | 3/8"-16UNC | 1.33 |
| SS316 | SIZE | B (inch) | L (inch) | M (inch) | Unit weight (lb) |
|---|---|---|---|---|---|
| 63010405 | 4-1/2" | 1.2 | 4.79 | 5/16"-18UNC | 0.95 |
| 63010600 | 6.0" | 1.5 | 6.3 | 3/8"-16UNC | 1.58 |
| 63010800 | 8.0" | 2.01 | 8.44 | 3/8"-16UNC | 2.93 |
