Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S31614A - Hinge - Cast
Surface Treatment: “M.P.” (Mirror polished)
“E.P.” (Electro polished) DATA SHEET DOWNLOAD
Casting Material: AISI316 - DIN 1.4408
Production: S31614A - Hinge - Cast
Surface Treatment: “M.P.” (Mirror polished)
“E.P.” (Electro polished) DATA SHEET DOWNLOAD

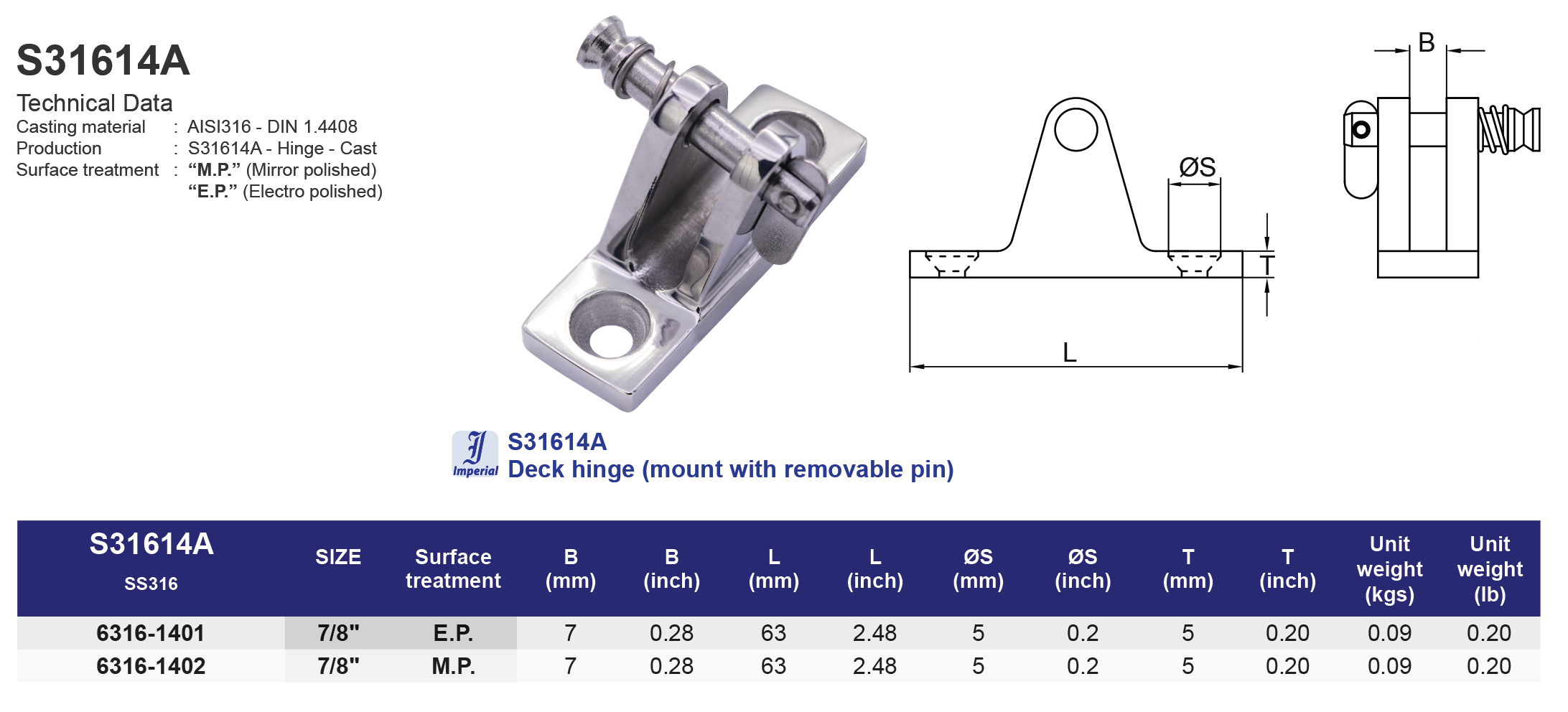

Model
S31614A

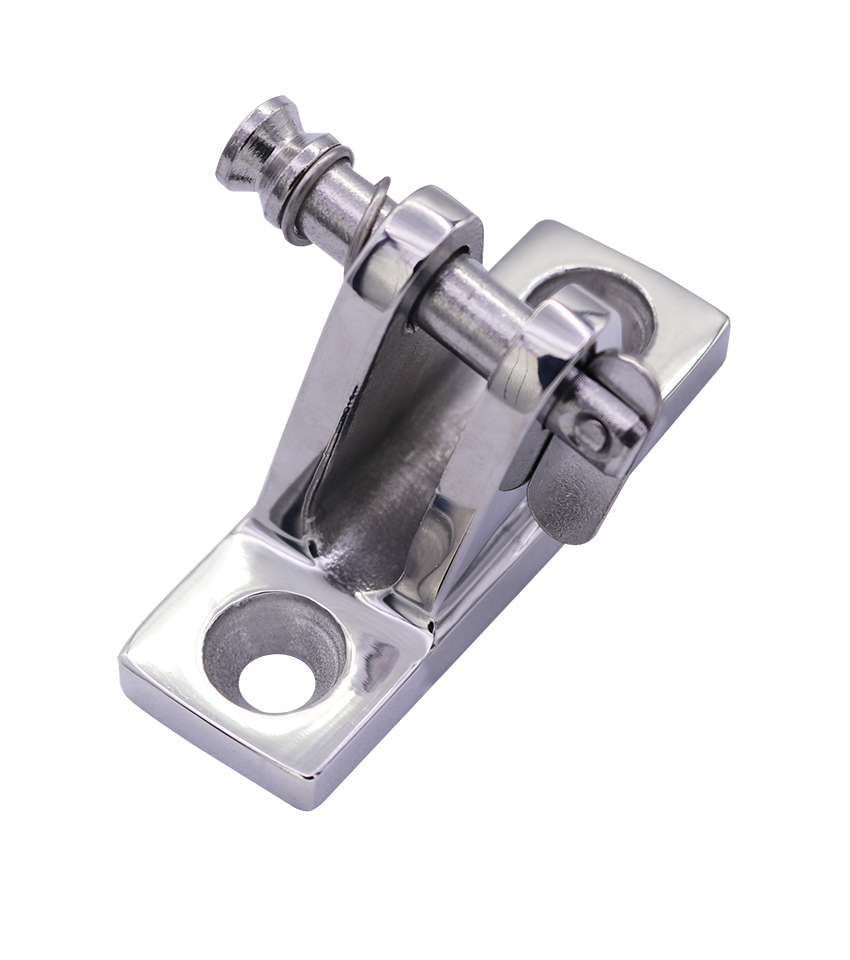

Deck hinge (mount with removable pin)
316 ss
| SS316 | SIZE | Surface treatment | B (mm) | L (mm) | ØS (mm) | T (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|
| 63161401 | 7/8" | E.P. | 7 | 63 | 5 | 6 | 0.09 |
| 63161402 | 7/8" | M.P. | 7 | 63 | 5 | 6 | 0.09 |
| SS316 | SIZE | Surface treatment | B (inch) | L (inch) | ØS (inch) | T (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|---|
| 63161401 | 7/8" | E.P. | 0.28 | 2.48 | 0.2 | 0.24 | 0.20 |
| 63161402 | 7/8" | M.P. | 0.28 | 2.48 | 0.2 | 0.24 | 0.20 |
