Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S31614 - Hinge - Cast
Surface Treatment:“M.P.” (Mirror polished)
“E.P.” (Electro polished) DATA SHEET DOWNLOAD

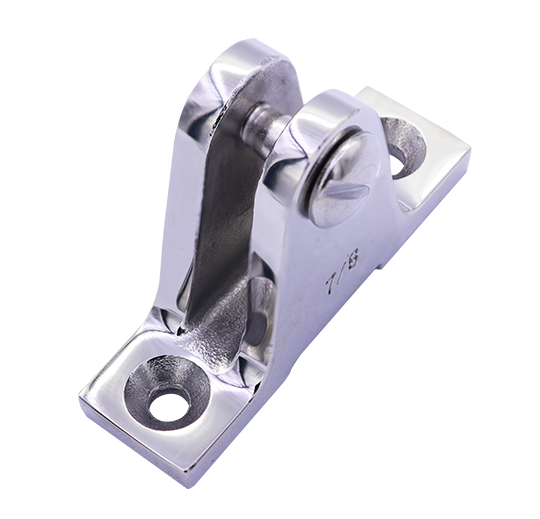

Model
S31614
Deck hinge
316 ss

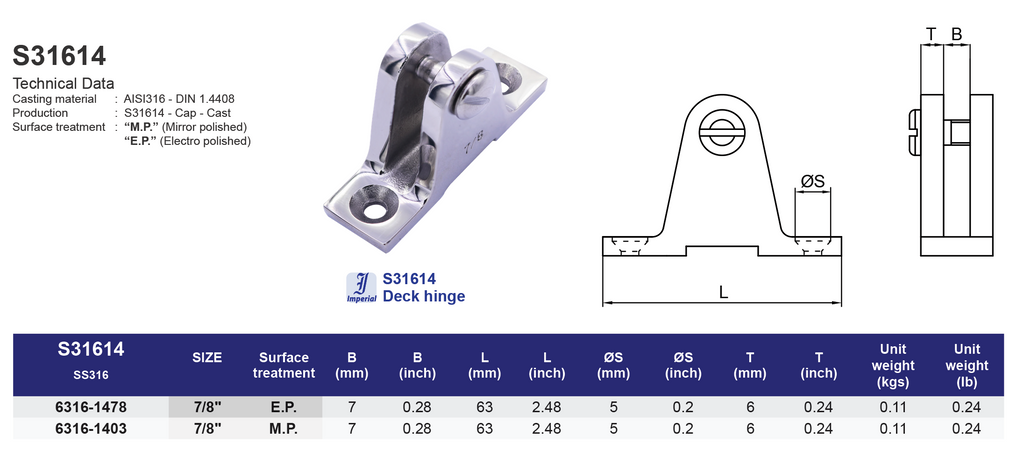

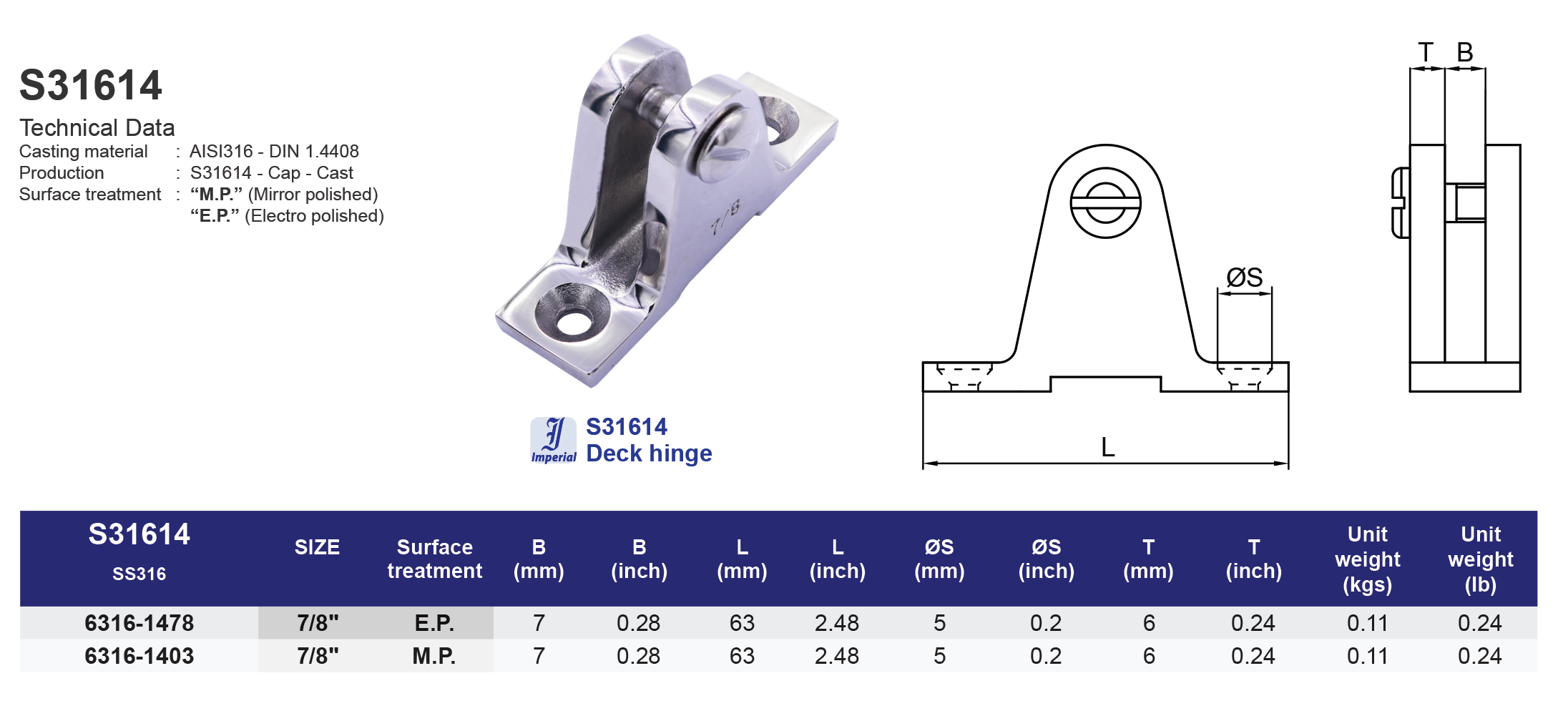

| SS316 | SIZE | Surface treatment | B (mm) | L (mm) | ØS (mm) | T (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|
| 63161478 | 7/8" | E.P. | 7 | 63 | 5 | 6 | 0.11 |
| 63161403 | 7/8" | M.P. | 7 | 63 | 5 | 6 | 0.11 |
| SS316 | SIZE | Surface treatment | B (inch) | L (inch) | ØS (inch) | T (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|---|
| 63161478 | 7/8" | E.P. | 0.28 | 2.48 | 0.2 | 0.24 | 0.24 |
| 63161403 | 7/8" | M.P. | 0.28 | 2.48 | 0.2 | 0.24 | 0.24 |
