Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S31612A - Hinge - Cast
Surface Treatment:
“M.P.” (Mirror polished)/
“E.P.” (Electro polished)

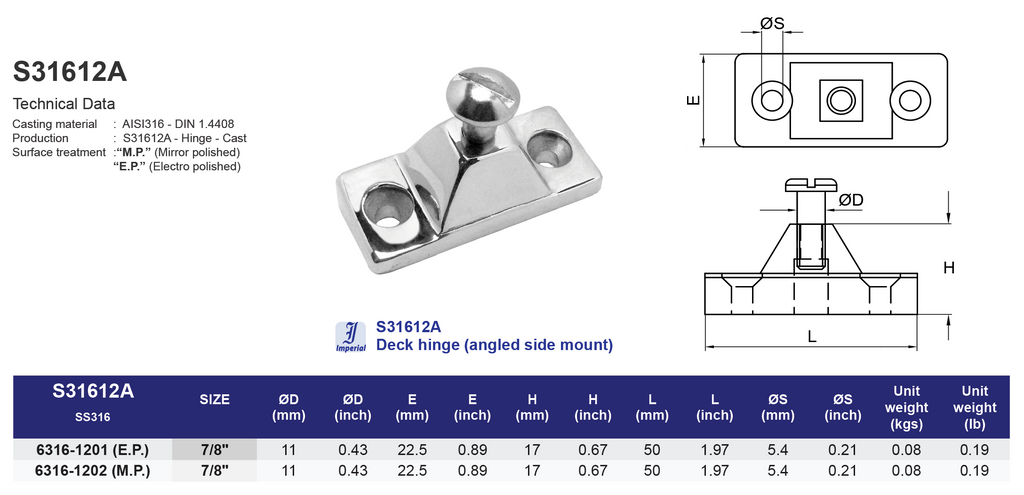

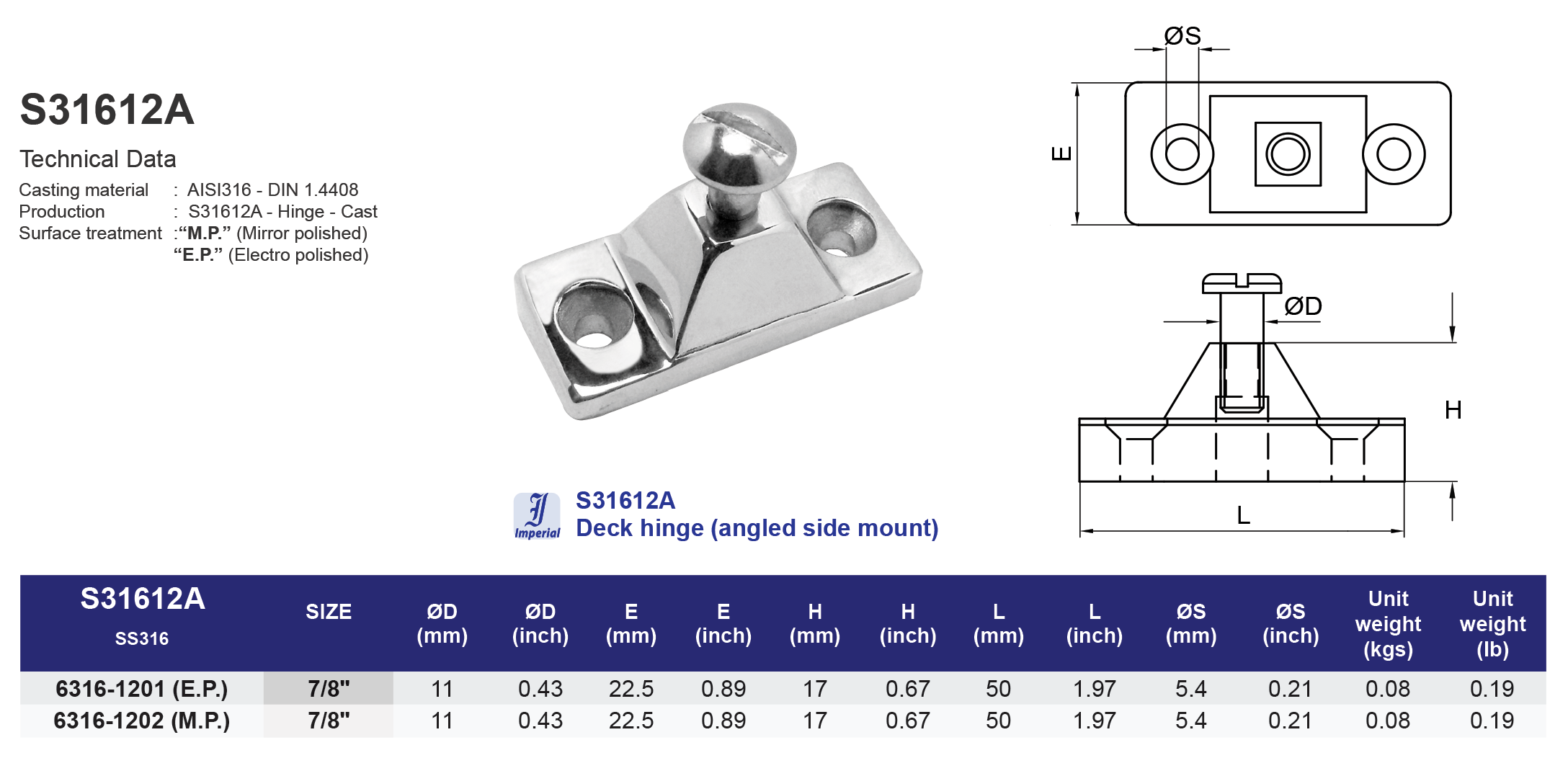

Model
S31612A

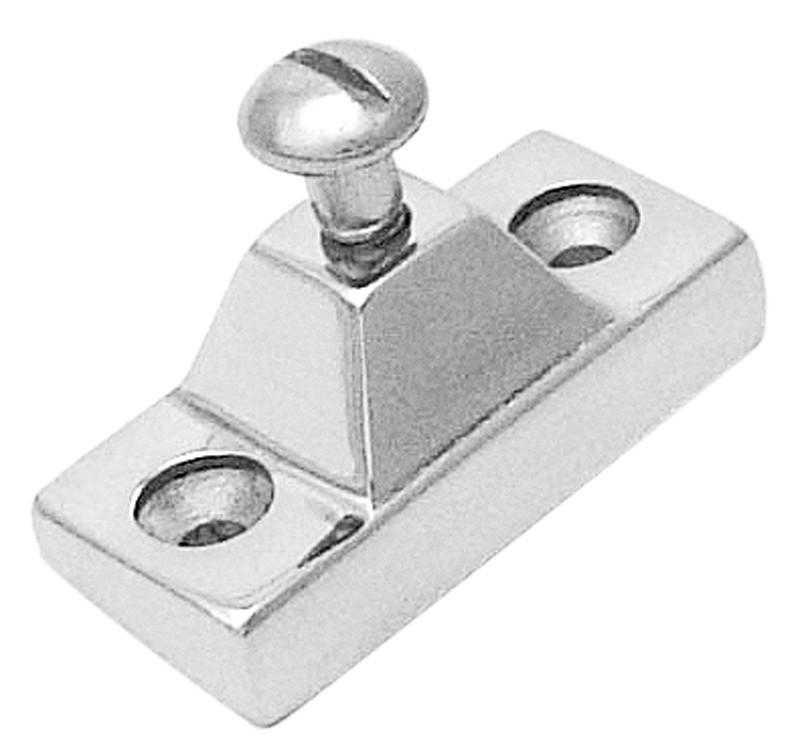

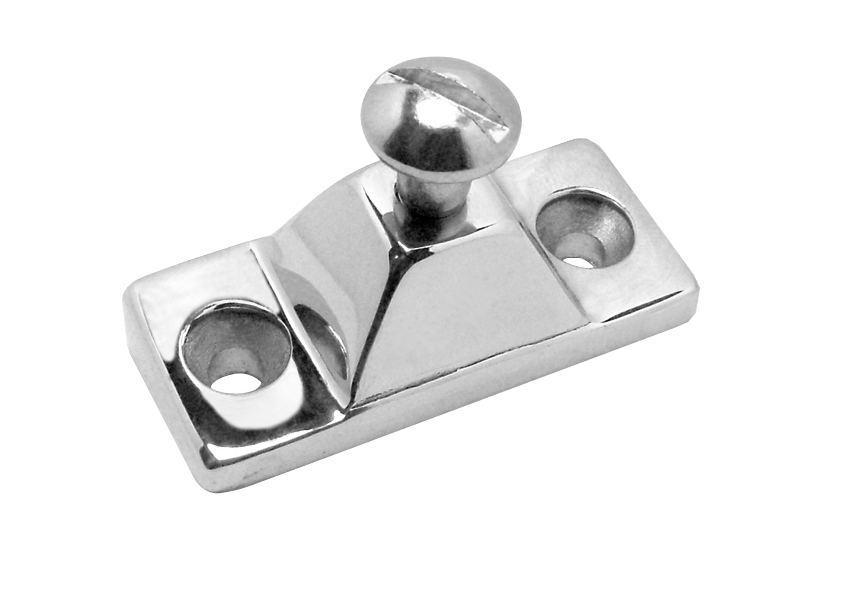

Deck hinge (angled side mount)
316 ss
| SS316 | Size | ØD(mm) | E(mm) | H(mm) | L(mm) | ØS(mm) | Surface | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| 63161201 | 7/8" | 11 | 22.5 | 17 | 50 | 5.4 | Electro polished | 0.08 |
| 63161202 | 7/8" | 11 | 22.5 | 17 | 50 | 5.4 | Mirror polished | 0.08 |
| SS316 | Size | ØD(inch) | E(inch) | Hinch) | L(inch) | ØS(inch) | Surface | Unit weight (Ib) |
|---|---|---|---|---|---|---|---|---|
| 63161201 | 7/8" | 0.43 | 0.89 | 0.67 | 1.97 | 0.21 | Electro polished | 0.19 |
| 63161202 | 7/8" | 0.43 | 0.89 | 0.67 | 1.97 | 0.21 | Mirror polished | 0.19 |
