S31606A Deck hinge (angle side mount with removable pin) - 316

SKU: 63161278

Size - Surface: 7/8" / Electro Polished
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S31606A - Hinge - Cast
Surface Treatment:
“M.P.” (Mirror polished)/
“E.P.” (Electro polished)

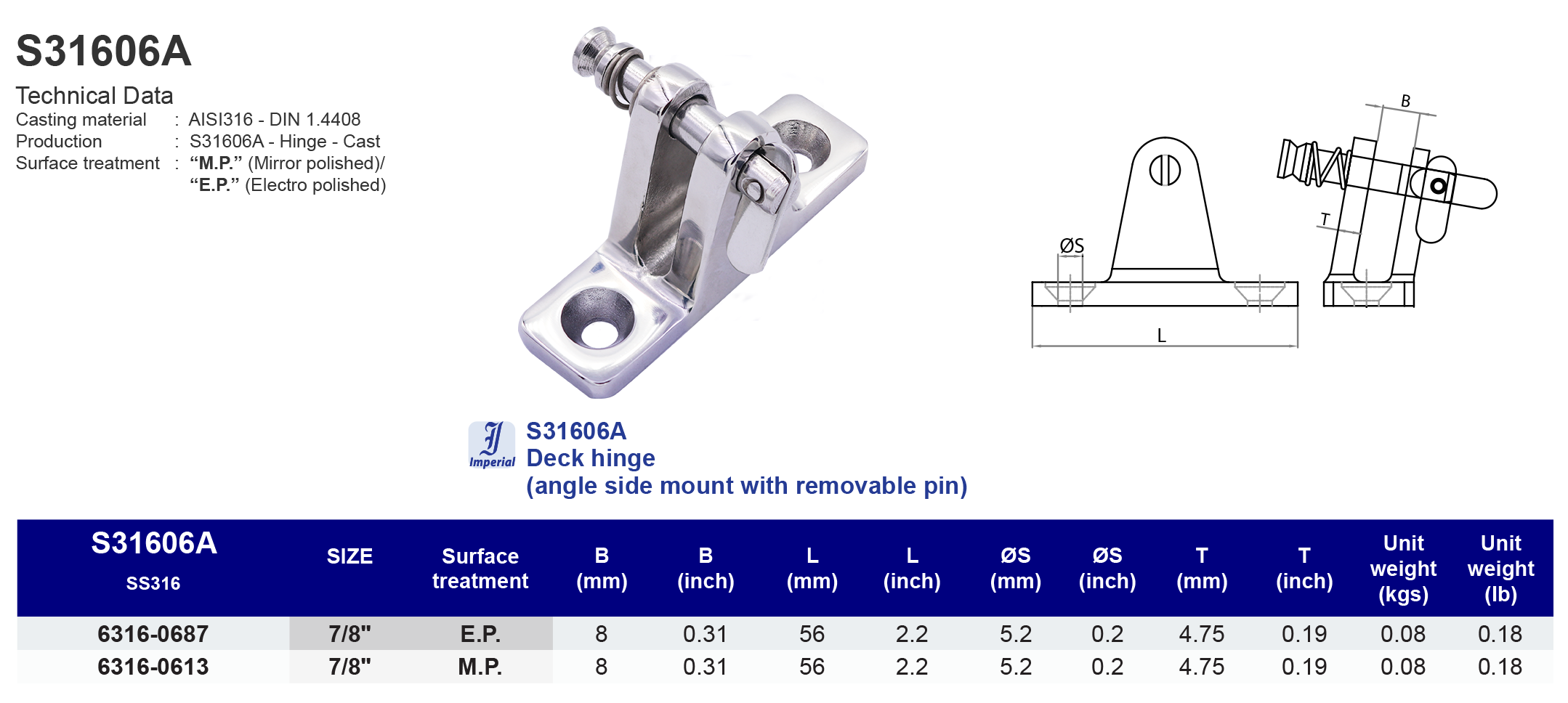

DATA SHEET DOWNLOAD

Model

S31606A

Deck hinge (angle side mount with removable pin)
316 ss

S31606Adrawing

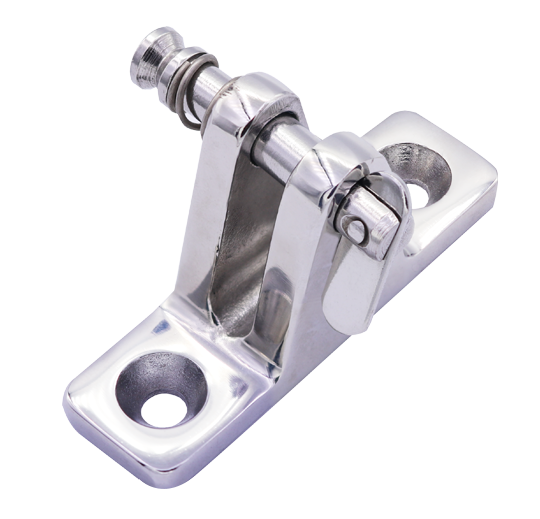

S31606A image
SS316SIZESurface treatmentB (mm)L (mm)ØS (mm)T (mm)Unit weight (kgs)
631606877/8"E.P.8565.24.750.08
631606137/8"M.P.8565.24.750.08
SS316SIZESurface treatmentB (inch)L (inch)ØS (inch)T (inch)Unit weight (lb)
631606877/8"E.P.0.312.20.20.190.18
631606137/8"M.P.0.312.20.20.190.18
