S316061A Deck hinge (rail mount with removable pin) - 316 (CLEARANCE SALE)

SKU: 63160617

Size - Surface: 7/8" / Mirror Polished (Min 200pcs)
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S316061A - Hinge - Cast
Surface Treatment: “M.P.” (Mirror polished)/
“E.P.” (Electro polished)

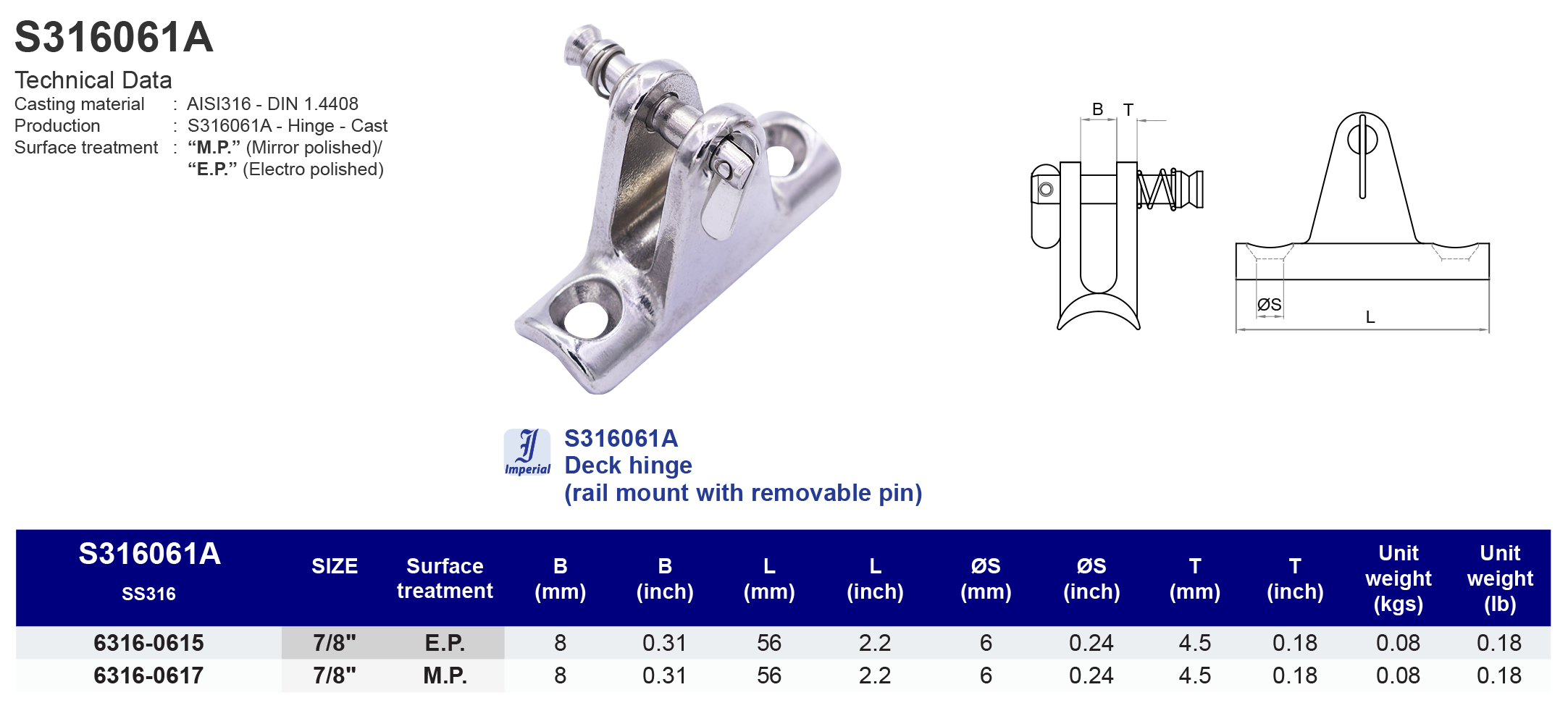

DATA SHEET DOWNLOAD

Model

S316061A

Deck hinge (rail mount with removable pin)
316 ss

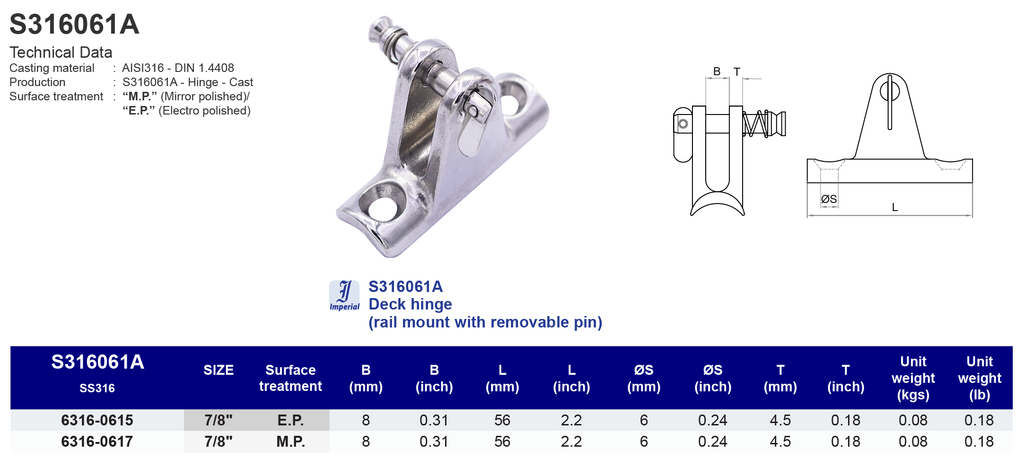

S316061Adrawing

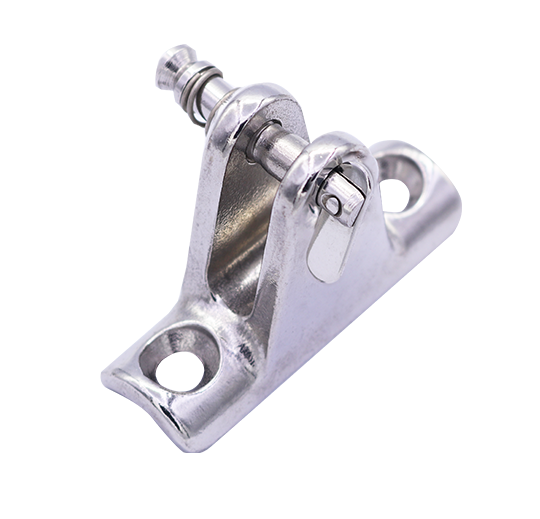

S316061A image
SS316SIZESurface treatmentB (mm)L (mm)ØS (mm)T (mm)Unit weight (kgs)
631606157/8"E.P.85664.50.08
631606177/8"M.P.85664.50.08
SS316SIZESurface treatmentB (inch)L (inch)ØS (inch)T (inch)Unit weight (lb)
631606157/8"E.P.0.312.20.240.180.18
631606177/8"M.P.0.312.20.240.180.18
