Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S316061A - Hinge - Cast
Surface Treatment: “M.P.” (Mirror polished)/
“E.P.” (Electro polished) DATA SHEET DOWNLOAD
Casting Material: AISI316 - DIN 1.4408
Production: S316061A - Hinge - Cast
Surface Treatment: “M.P.” (Mirror polished)/
“E.P.” (Electro polished) DATA SHEET DOWNLOAD

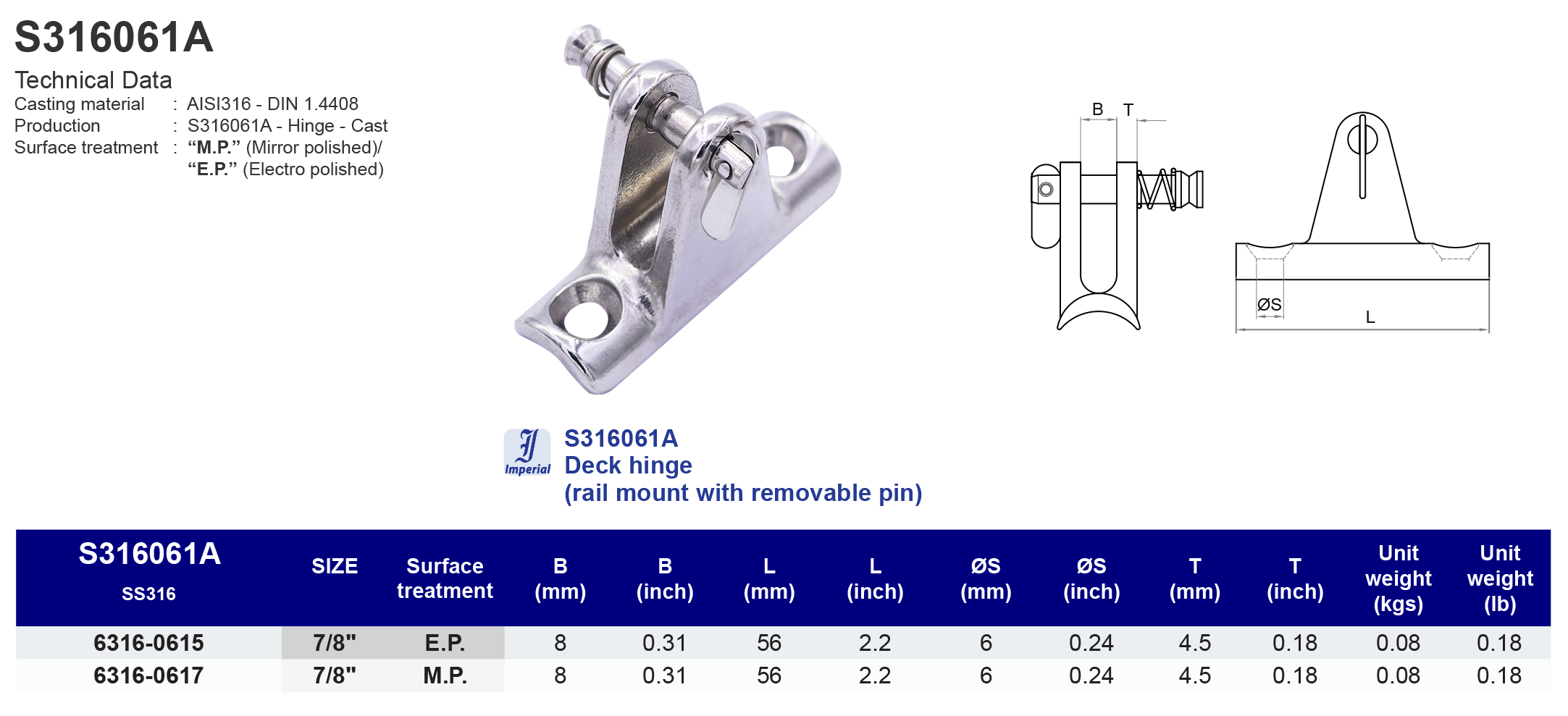

Model
S316061A

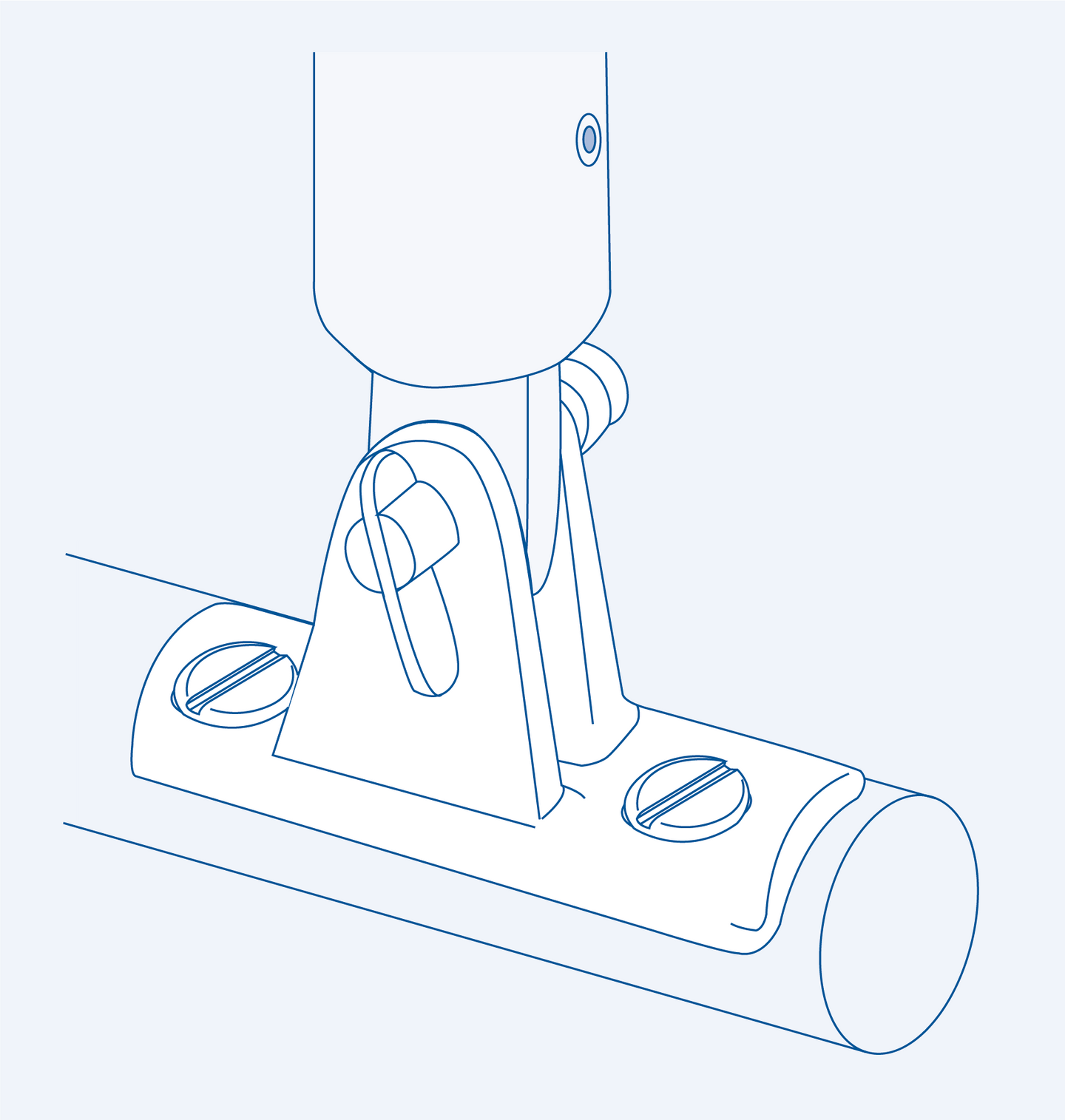

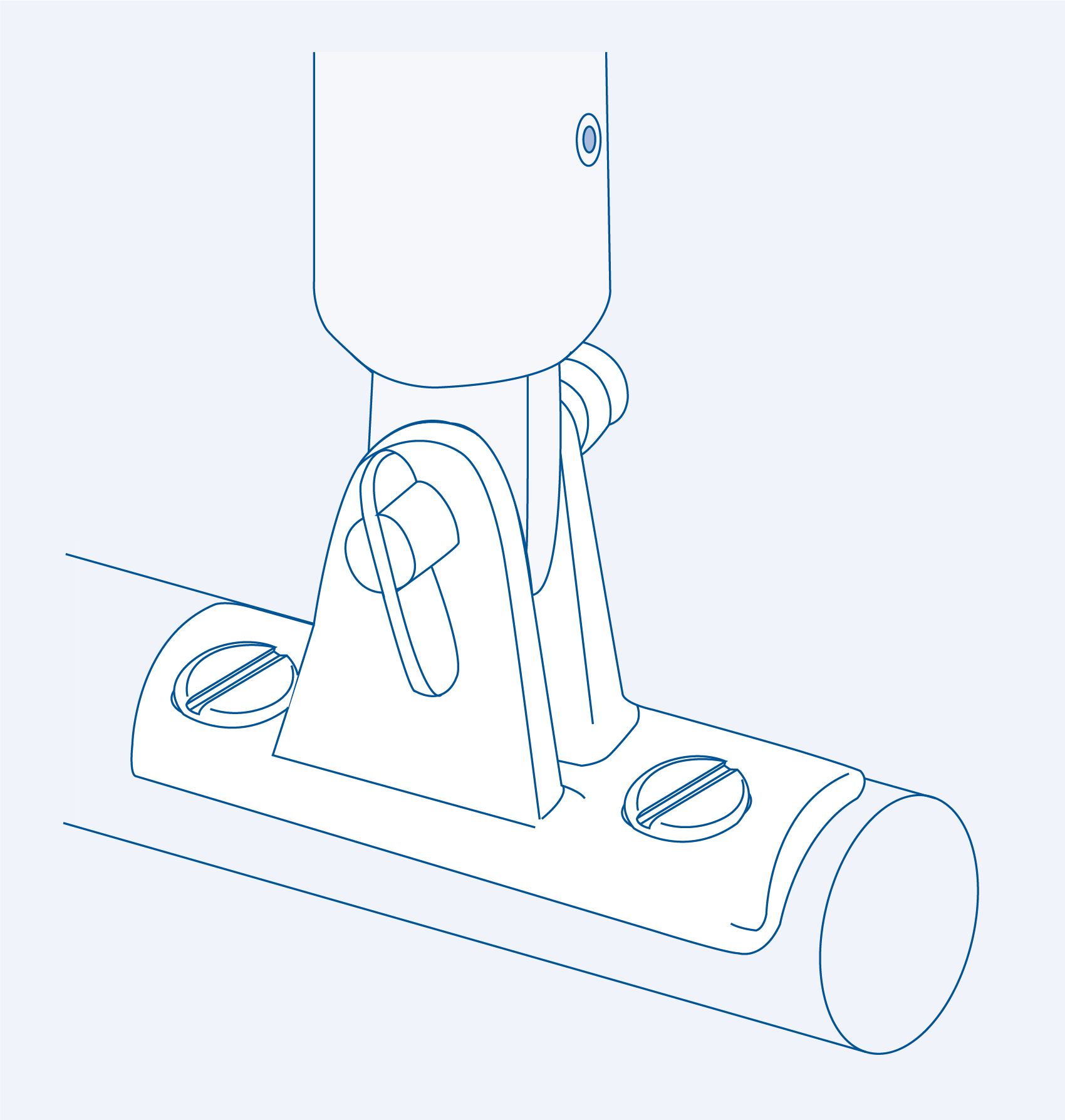

Deck hinge (rail mount with removable pin)
316 ss
| SS316 | SIZE | Surface treatment | B (mm) | L (mm) | ØS (mm) | T (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|
| 63160615 | 7/8" | E.P. | 8 | 56 | 6 | 4.5 | 0.08 |
| 63160617 | 7/8" | M.P. | 8 | 56 | 6 | 4.5 | 0.08 |
| SS316 | SIZE | Surface treatment | B (inch) | L (inch) | ØS (inch) | T (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|---|
| 63160615 | 7/8" | E.P. | 0.31 | 2.2 | 0.24 | 0.18 | 0.18 |
| 63160617 | 7/8" | M.P. | 0.31 | 2.2 | 0.24 | 0.18 | 0.18 |
