S316061 Deck hinge (rail mount) - 316 (CLEARANCE SALE)

SKU: 63160612

Size - Surface: 7/8" / Mirror Polished (Min 100 pcs)
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S316061 - Hinge - Cast
Surface Treatment: “M.P.” (Mirror polished)/

“E.P.” (Electro polished) DATA SHEET DOWNLOAD

Model

S316061

Deck hinge (rail mount)
316 ss

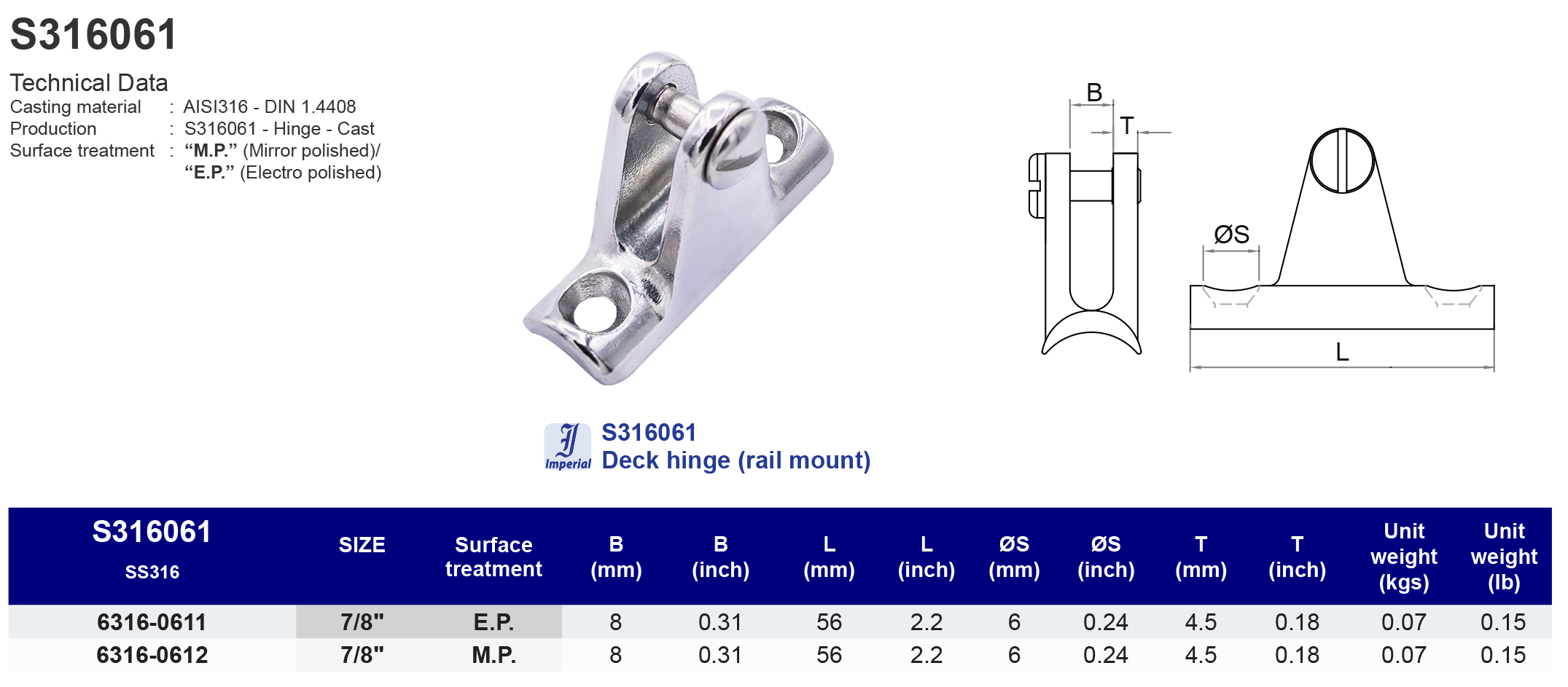

S316061drawing

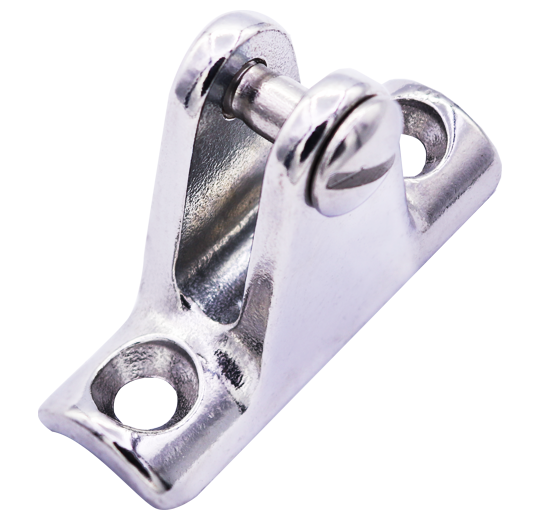

S316061 image
SS316SIZESurface treatmentB (mm)L (mm)ØS (mm)T (mm)Unit weight (kgs)
631606117/8"E.P.85664.50.07
631606127/8"M.P.85664.50.07
SS316SIZESurface treatmentB (inch)L (inch)ØS (inch)T (inch)Unit weight (lb)
631606117/8"E.P.0.312.20.240.180.15
631606127/8"M.P.0.312.20.240.180.15
