Description
Technical Data:
Casting Material:
AISI316 - DIN 1.4408
Production: S31601 - Cap - Cast
Surface Treatment:“M.P.” (Mirror polished)/
“E.P.” (Electro polished) DATA SHEET DOWNLOAD

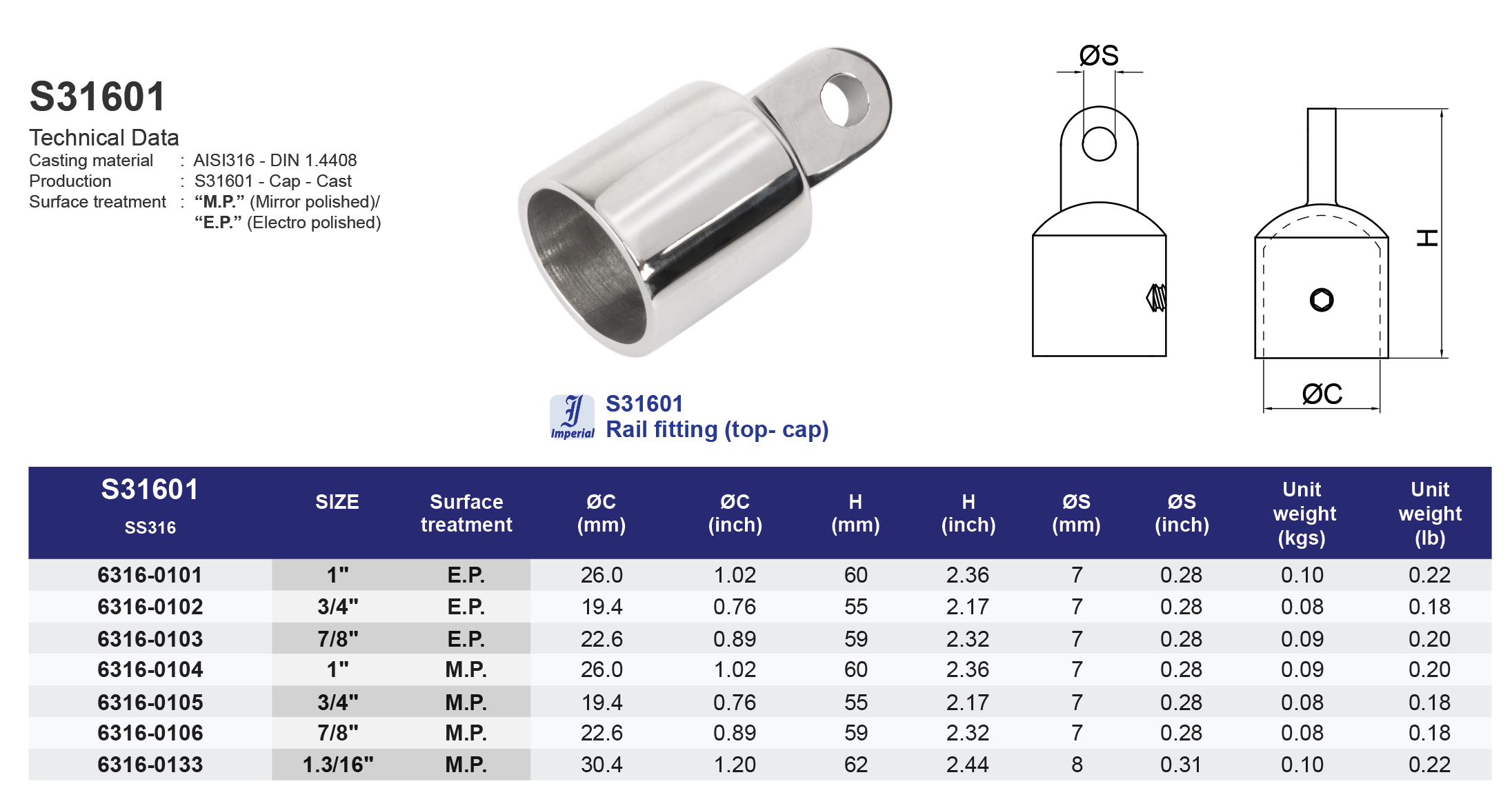

Model
S31601

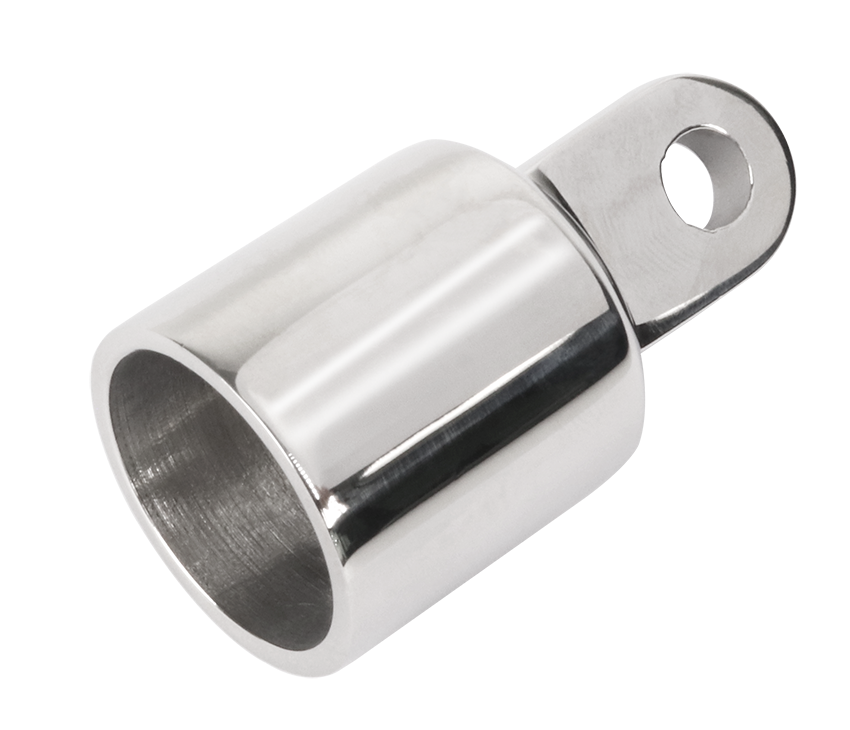

Rail fitting (top cap)
316 ss
| SS316 | SIZE | Surface treatment | ØC (mm) | L (mm) | ØS (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 63160101 | 1" | E.P. | 26.0 | 60 | 7 | 0.10 |
| 63160102 | 3/4" | E.P. | 19.4 | 55 | 7 | 0.08 |
| 63160103 | 7/8" | E.P. | 22.6 | 59 | 7 | 0.09 |
| 63160104 | 1" | M.P. | 26.0 | 60 | 7 | 0.09 |
| 63160105 | 3/4" | M.P. | 19.4 | 55 | 7 | 0.08 |
| 63160106 | 7/8" | M.P. | 22.6 | 59 | 7 | 0.08 |
| 63160133 | 1.3/16" | M.P. | 30.4 | 62 | 8 | 0.10 |
| SS316 | SIZE | Surface treatment | ØC (inch) | L (inch) | ØS (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 63160101 | 1" | E.P. | 1.02 | 2.36 | 0.28 | 0.22 |
| 63160102 | 3/4" | E.P. | 0.76 | 2.17 | 0.28 | 0.18 |
| 63160103 | 7/8" | E.P. | 0.89 | 2.32 | 0.28 | 0.20 |
| 63160104 | 1" | M.P. | 1.02 | 2.36 | 0.28 | 0.20 |
| 63160105 | 3/4" | M.P. | 0.76 | 2.17 | 0.28 | 0.18 |
| 63160106 | 7/8" | M.P. | 0.89 | 2.32 | 0.28 | 0.18 |
| 63160133 | 1.3/16" | M.P. | 1.20 | 2.44 | 0.31 | 0.22 |
