Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308
Stamping Material: AISI304 - DIN 1.4301
Production:
S3151NL - Swivel eye - Cast
Sheave - Nylon
Block (sheet) - Stamped
Surface Treatment: “E.P.” (Electro polished)

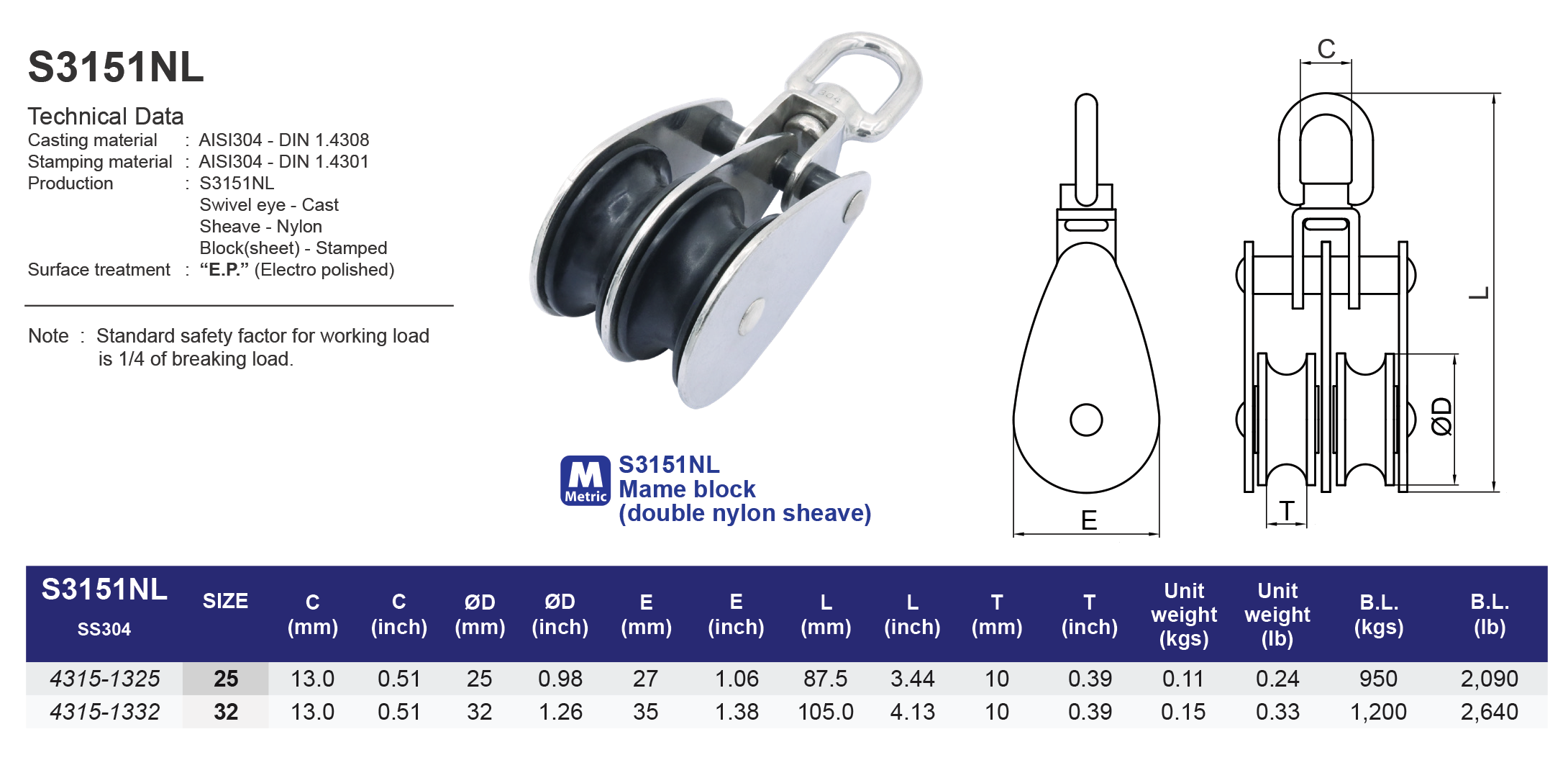

Model
S3151NL
Mame block (double nylon sheave)
304 ss
| SS304 | SIZE | C (mm) | ØD (mm) | E (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 43151325 | 25 | 13 | 25 | 30 | 87.5 | 10 | 0.11 | 950 |
| 43151332 | 32 | 13 | 32 | 36 | 105 | 10 | 0.15 | 1,200 |
| SS304 | SIZE | C (inch) | ØD (inch) | E (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 43151325 | 1" | 0.51 | 0.98 | 1.18 | 3.44 | 0.39 | 0.24 | 2,090 |
| 43151332 | 1"-1/4" | 0.51 | 1.26 | 1.41 | 4.13 | 0.39 | 0.33 | 2,640 |
