Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Stamping Material:
AISI304 - DIN 1.4301
Production:
S3151NL / B - Swivel eye - Cast
Sheave - Cast
Block (sheet) - Stamped
Surface Treatment:
Electro polished / Passivated

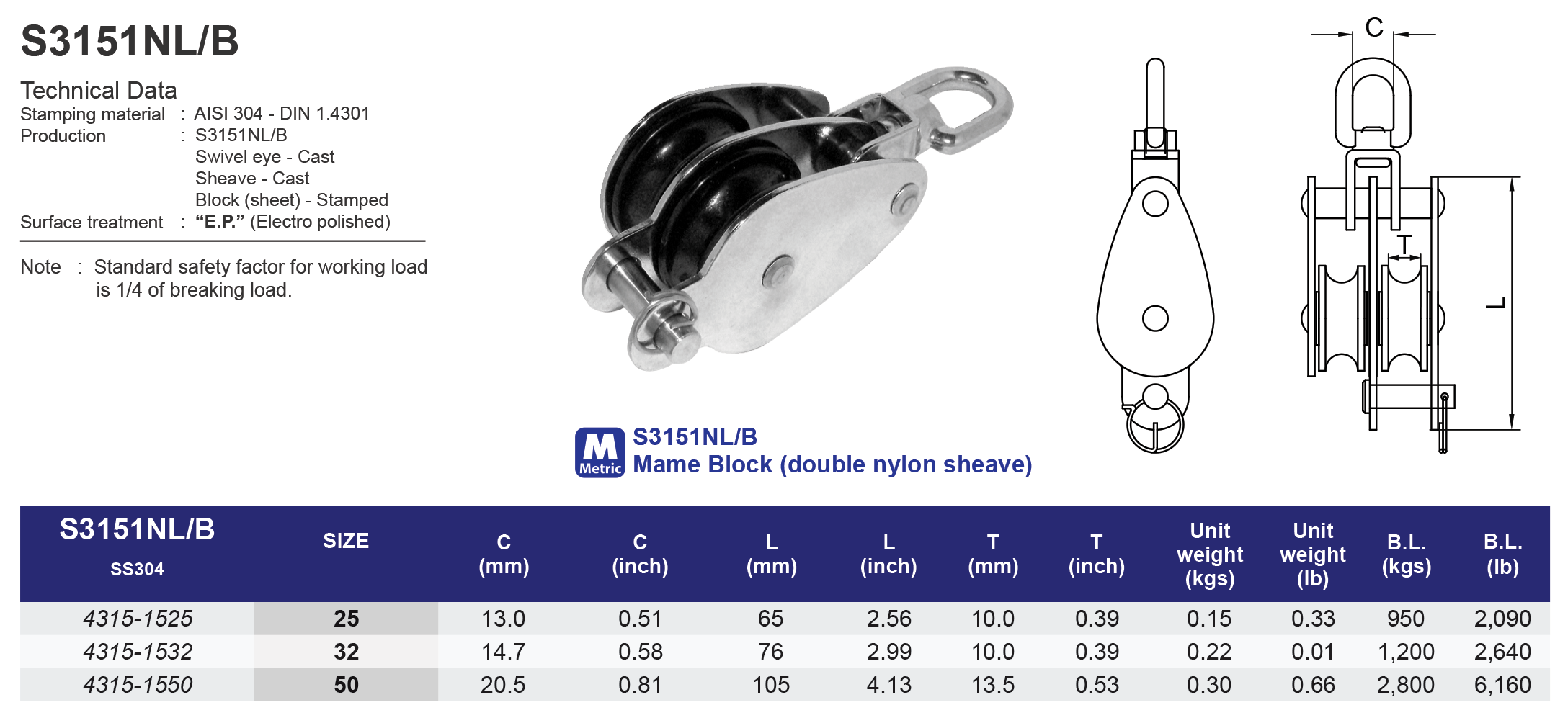

Model
S3151NL_B

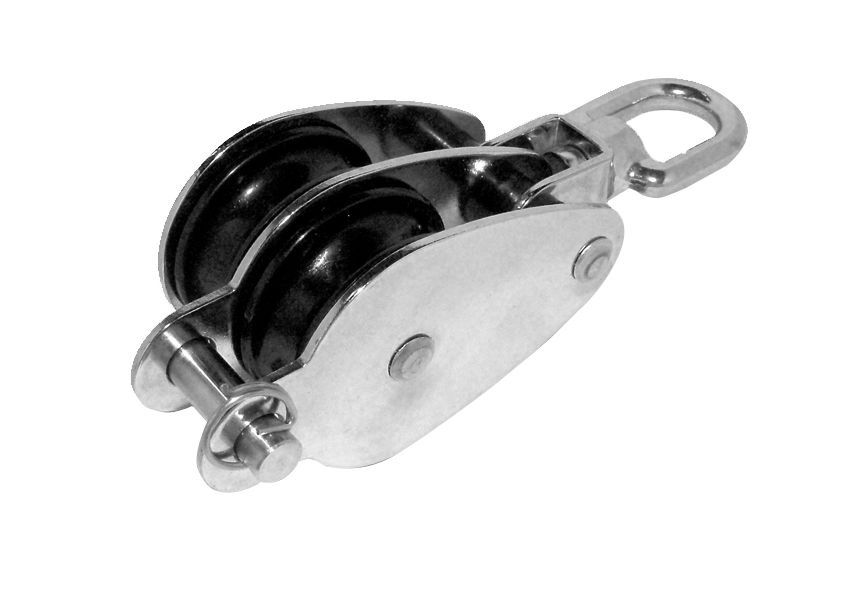

Mame Block (double nylon sheave)
304 ss
| SS304 | Size | C(mm) | L(mm) | T(mm) | Weight(kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|
| 43151525 | 25 | 13.0 | 103.5 | 10.0 | 0.15 | 950 |
| 43151532 | 32 | 14.5 | 118.0 | 10.0 | 0.28 | 1,200 |
| 43151550 | 50 | 20.5 | 162.0 | 13.5 | 0.59 | 2,800 |
| SS304 | Size | C(inch) | L(inch) | T(inch) | Weight(Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|
| 43151525 | 25 | 0.51 | 4.07 | 0.39 | 0.33 | 523 |
| 43151532 | 32 | 0.57 | 4.65 | 0.39 | 0.62 | 300 |
| 43151550 | 50 | 0.81 | 6.38 | 0.53 | 1.30 | 1,540 |
