Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308
Stamping Material: AISI304 - DIN 1.4301
Production: S3151 - Swivel eye - Cast
Sheave - Cast
Block (sheet) - Stamped
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load.

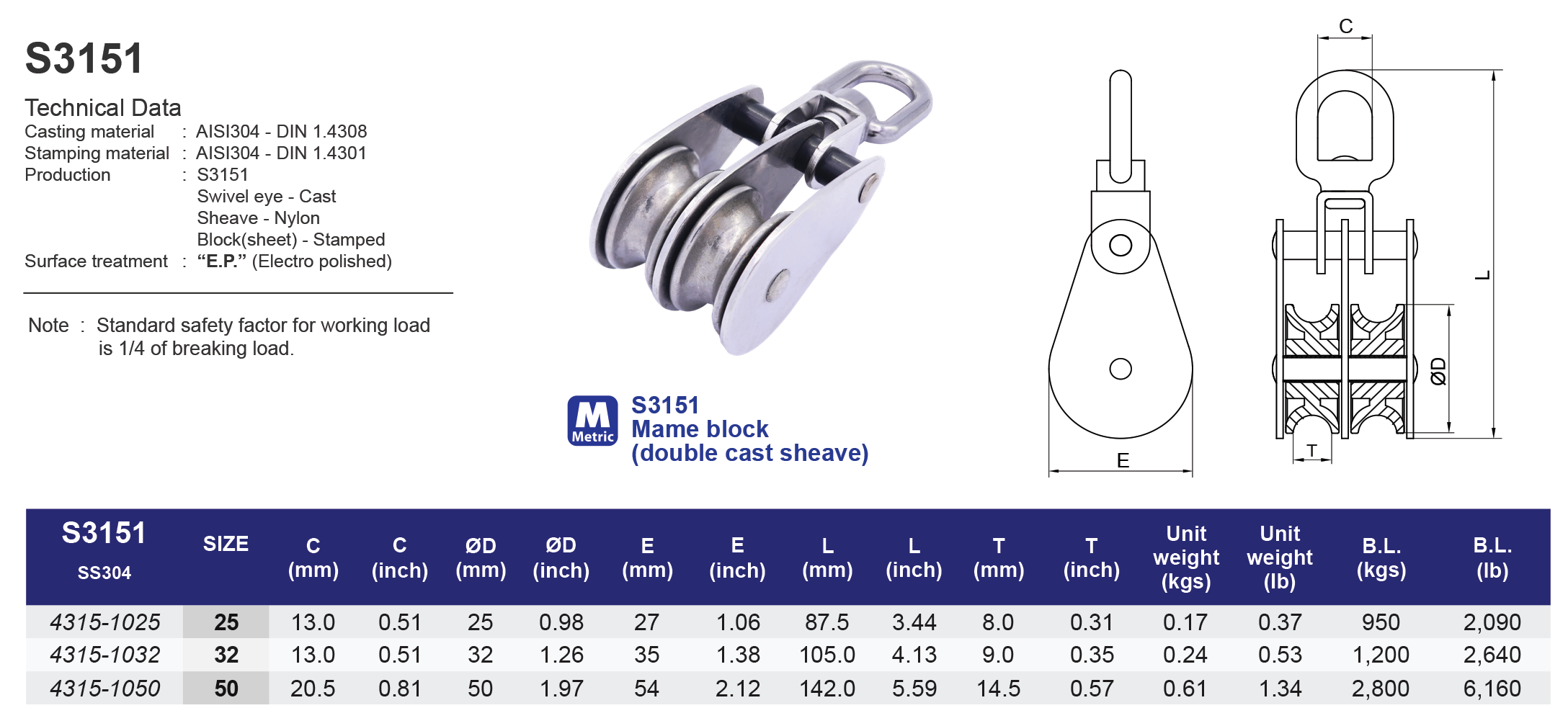

Model
S3151
Mame block (double cast sheave)
304 ss
| SS304 | SIZE | C (mm) | ØD (mm) | E (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 43151025 | 25 | 13 | 25 | 30 | 87.5 | 8 | 0.17 | 950 |
| 43151032 | 32 | 13 | 32 | 36 | 105 | 9 | 0.24 | 1,200 |
| 43151050 | 50 | 20.5 | 50 | 54 | 142 | 14.5 | 0.61 | 2,800 |
| SS304 | SIZE | C (inch) | ØD (inch) | E (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 43151025 | 1" | 0.51 | 0.98 | 1.18 | 3.44 | 0.31 | 0.37 | 2,090 |
| 43151032 | 1"-1/4" | 0.51 | 1.26 | 1.41 | 4.13 | 0.35 | 0.53 | 2,640 |
| 43151050 | 2" | 0.81 | 1.97 | 2.12 | 5.59 | 0.57 | 1.34 | 6,160 |
