Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Stamping Material:
AISI304 - DIN 1.4301
Production:
S3151/B - Swivel eye - Cast
Sheave - Cast
Block (sheet) - Stamped
Surface Treatment:
Electro polished / Passivated

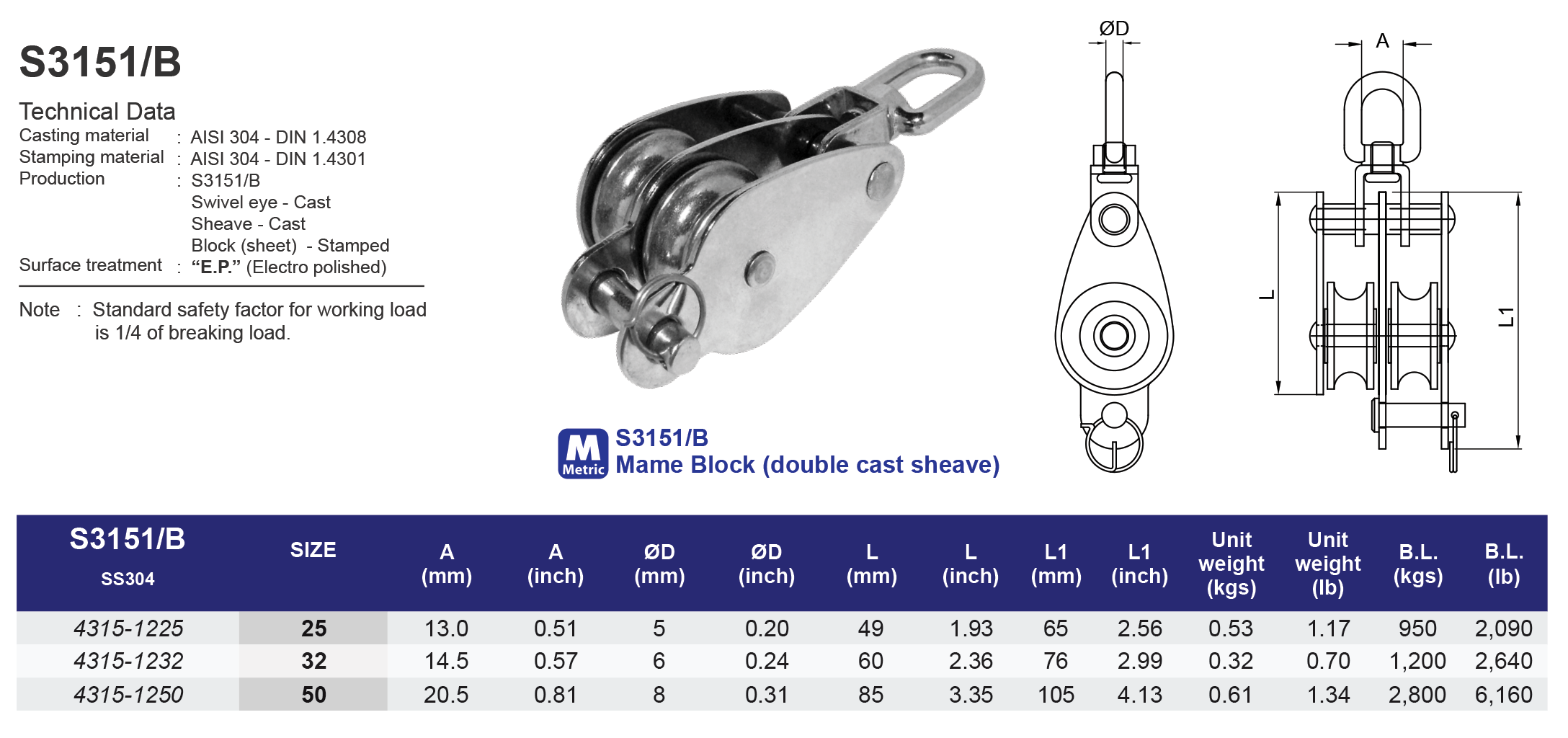

Model
S3151_B

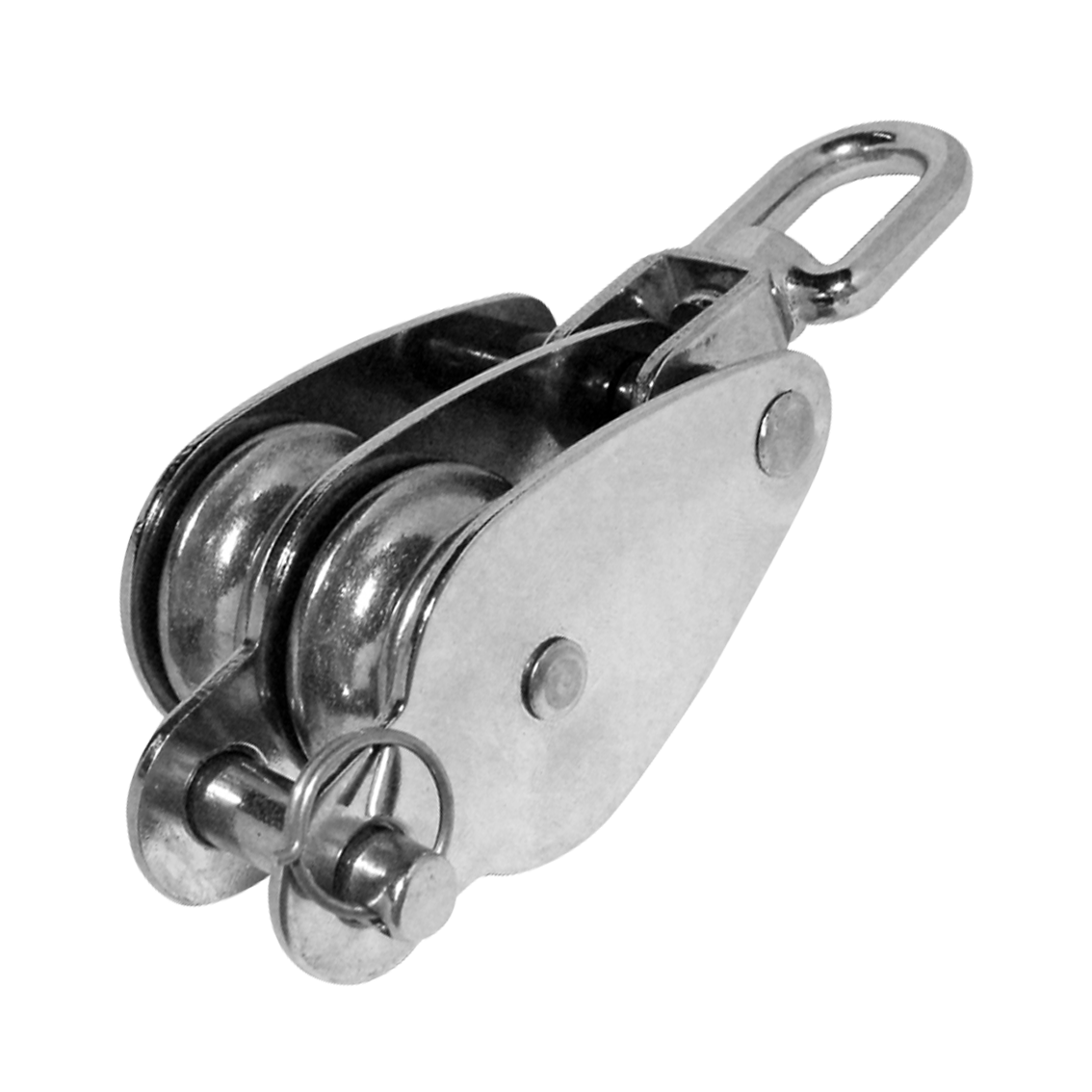

Mame Block (double cast sheave)
304 ss
| SS304 | Size | A(mm) | ØD(mm) | L(mm) | L1(mm) | Unit Weight (kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|---|
| 43151225 | 25 | 13.0 | 5 | 49 | 65 | 0.53 | 950 |
| 43151232 | 32 | 14.5 | 6 | 60 | 76 | 0.32 | 1,200 |
| 43151250 | 50 | 20.5 | 8 | 85 | 105 | 0.61 | 2,800 |
| SS304 | Size | A(inch) | ØD(inch) | L(inch) | L1(inch) | Unit Weight(Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|---|
| 43151225 | 25 | 0.51 | 0.20 | 1.93 | 2.56 | 1.17 | 2,090 |
| 43151232 | 32 | 0.57 | 0.24 | 2.36 | 2.99 | 0.70 | 2,640 |
| 43151250 | 50 | 0.81 | 0.31 | 3.35 | 4.13 | 1.34 | 6,160 |
