Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308
Stamping Material: AISI304 - DIN 1.4301
Welding Material: AISI304 - DIN 1.4301
Production: S315 - Swivel eye - Cast
Sheave - Cast
Block (sheet) - Stamped
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working loadis 1/4 of breaking load DATA SHEET DOWNLOAD

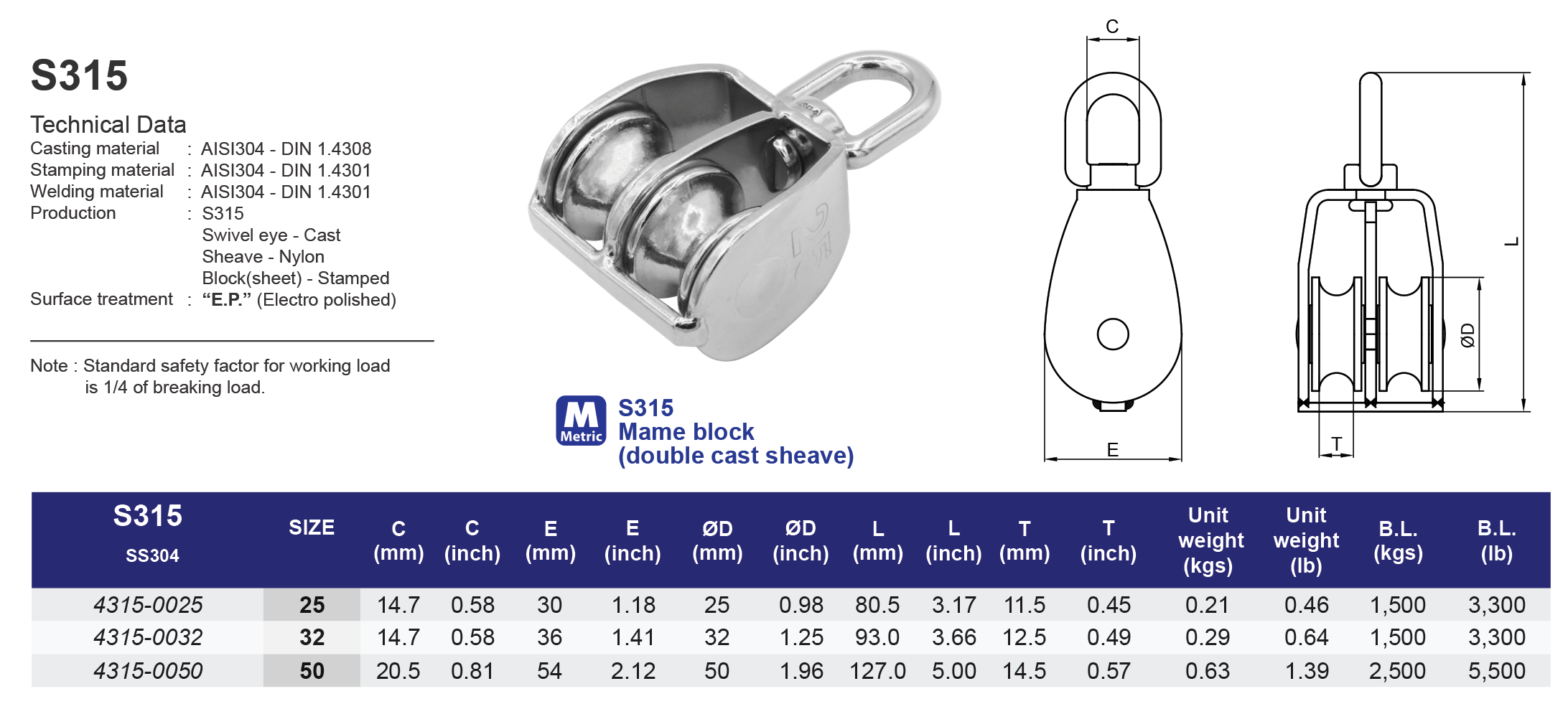

Model
S315

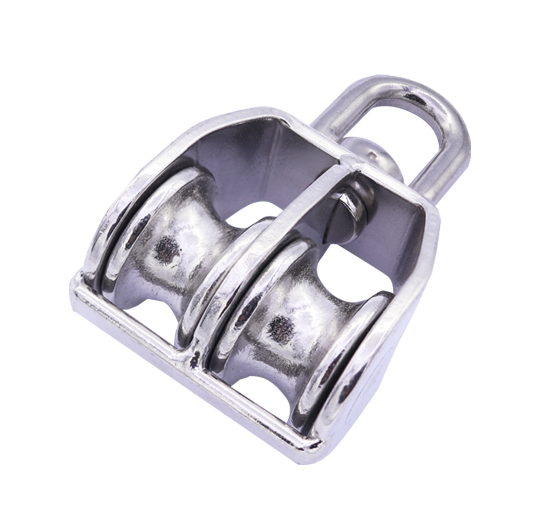

Mame block (double cast sheave)
304 ss
| SS304 | SIZE | C (mm) | E (mm) | ØD (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 43150025 | 25 | 14.5 | 30 | 25 | 80 | 11.5 | 0.21 | 1,500 |
| 43150032 | 32 | 14.5 | 36 | 32 | 92.5 | 12.5 | 0.29 | 1,500 |
| 43150050 | 50 | 20.5 | 54 | 50 | 127 | 14.5 | 0.63 | 2,500 |
| SS304 | SIZE | C (inch) | E (inch) | ØD (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 43150025 | 1" | 0.57 | 1.18 | 0.98 | 3.15 | 0.45 | 0.46 | 3,300 |
| 43150032 | 1"-1/4" | 0.57 | 1.41 | 1.25 | 3.64 | 0.49 | 0.64 | 3,300 |
| 43150050 | 2" | 0.81 | 2.12 | 1.96 | 5.00 | 0.57 | 1.39 | 5,500 |
