Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308
Stamping Material: AISI304 - DIN 1.4301
Welding Material: AISI304 - DIN 1.4301
Production: S314ANL - Swivel eye - Cast
Sheave - Nylon
Block (sheet) - Stamped
Eye end - Bar
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load
is 1/4 of breaking load.

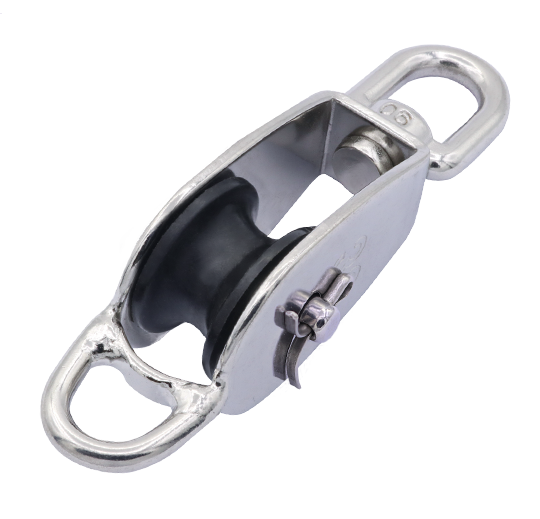

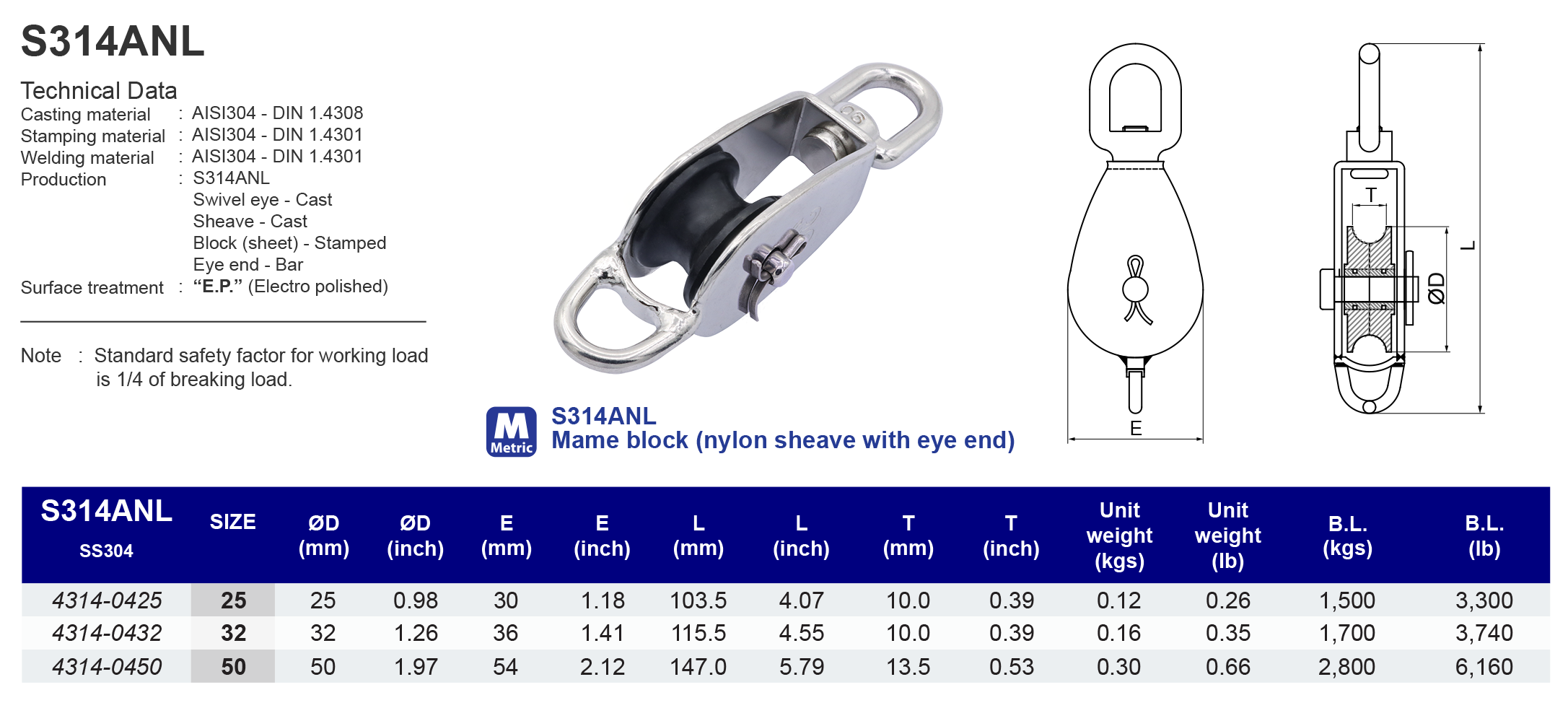

Model
S314ANL
Mame block (nylon sheave with eye end)
304 ss
| SS304 | SIZE | ØD (mm) | E (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 43140425 | 25 | 25 | 30 | 103.5 | 10 | 0.12 | 1,500 |
| 43140432 | 32 | 32 | 36 | 115.5 | 10 | 0.16 | 1,700 |
| 43140450 | 50 | 50 | 54 | 147 | 13.5 | 0.30 | 2,800 |
| SS304 | SIZE | ØD (inch) | E (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 43140425 | 1" | 0.98 | 1.18 | 4.07 | 0.39 | 0.26 | 3,300 |
| 43140432 | 1"-1/4" | 1.26 | 1.41 | 4.55 | 0.39 | 0.35 | 3,740 |
| 43140450 | 2" | 1.97 | 2.12 | 5.79 | 0.53 | 0.66 | 6,160 |
