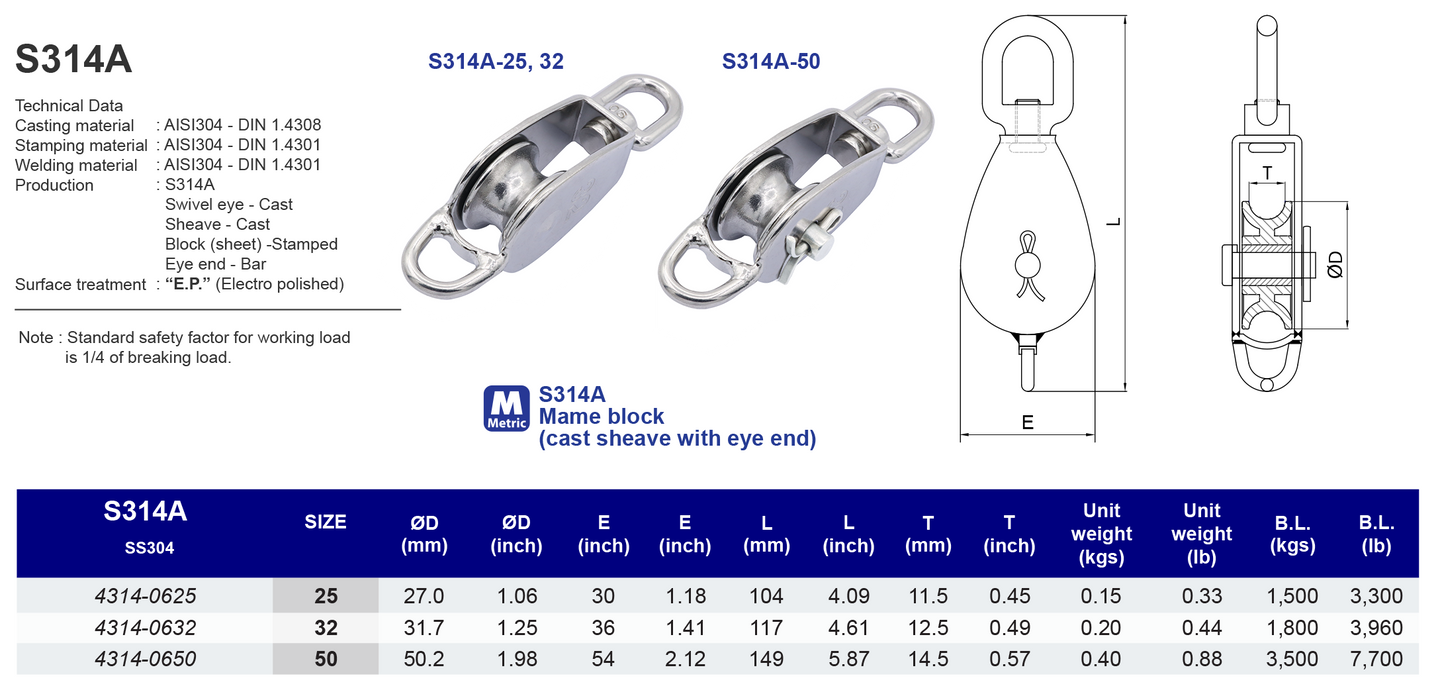

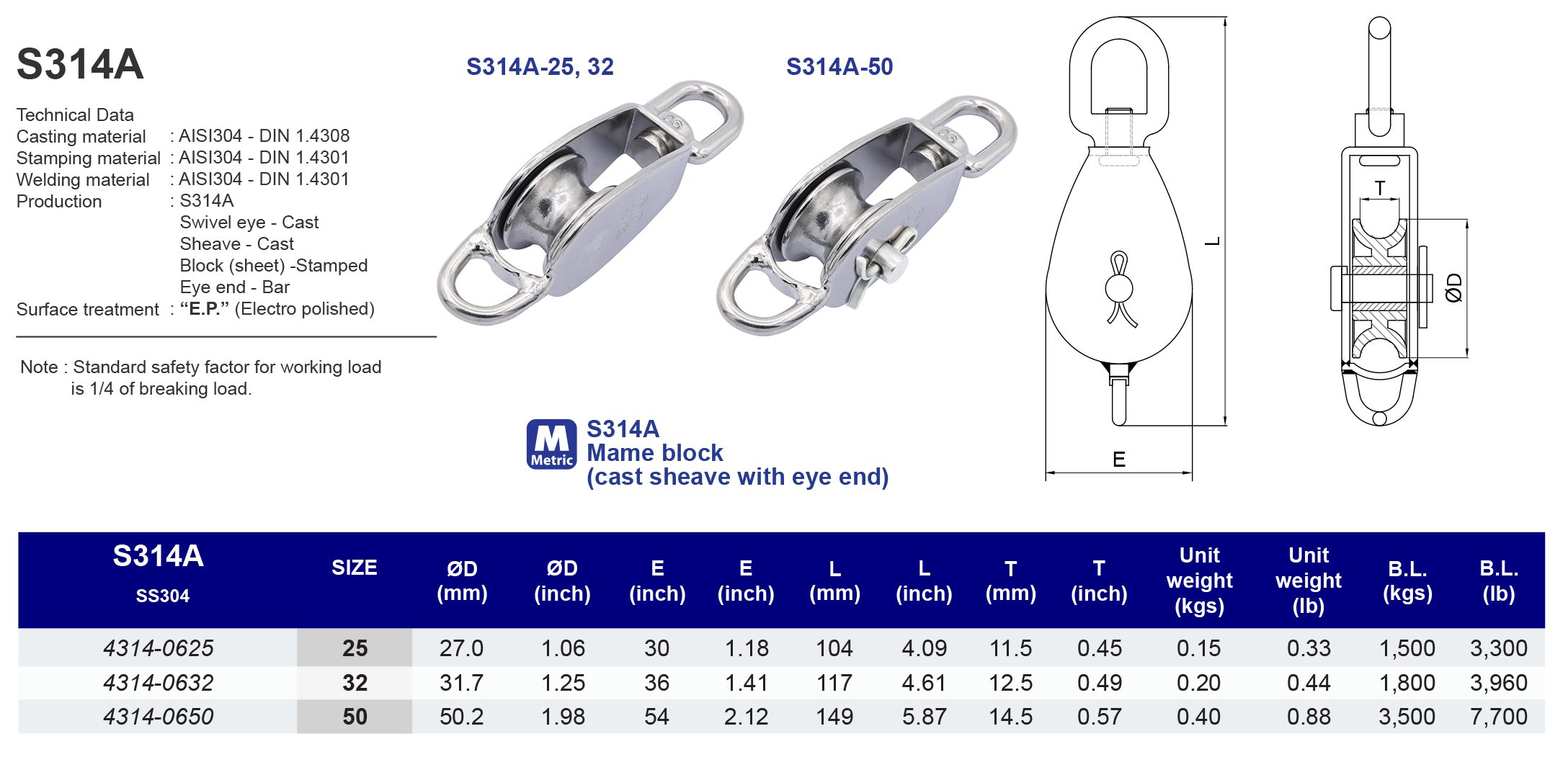

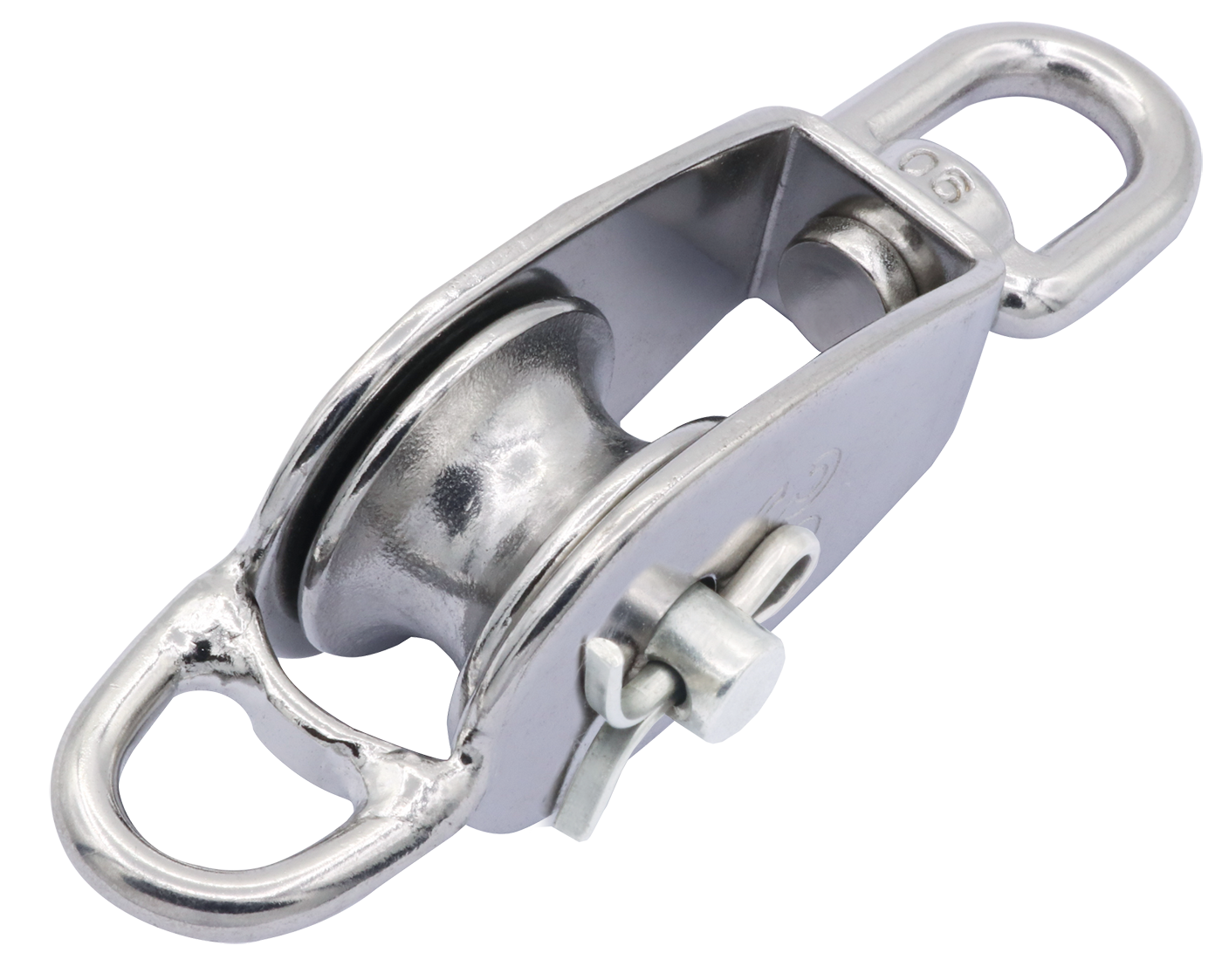

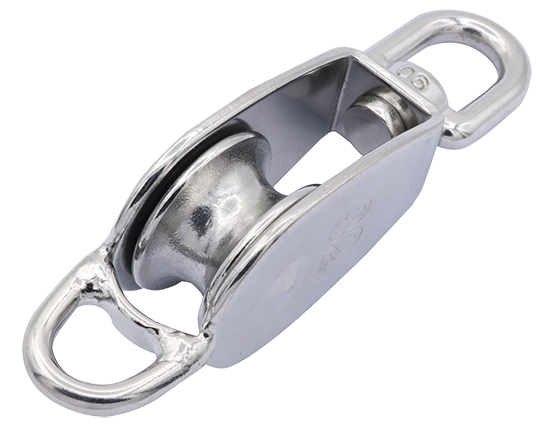

S314A Mame block (cast sheave with eye end)

S314A Mame block (cast sheave with eye end)

Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Stamping Material:
AISI304 - DIN 1.4301
Welding Material: AISI304 - DIN 1.4301
Production: S314A - Swivel eye - Cast
Sheave - Cast
Block (sheet) - Stamped
Eye end - Bar
Surface Treatment: “E.P.” (Electro polished)

Note : Standard safety factor for working load
is 1/4 of breaking load.

DATA SHEET DOWNLOAD
