Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

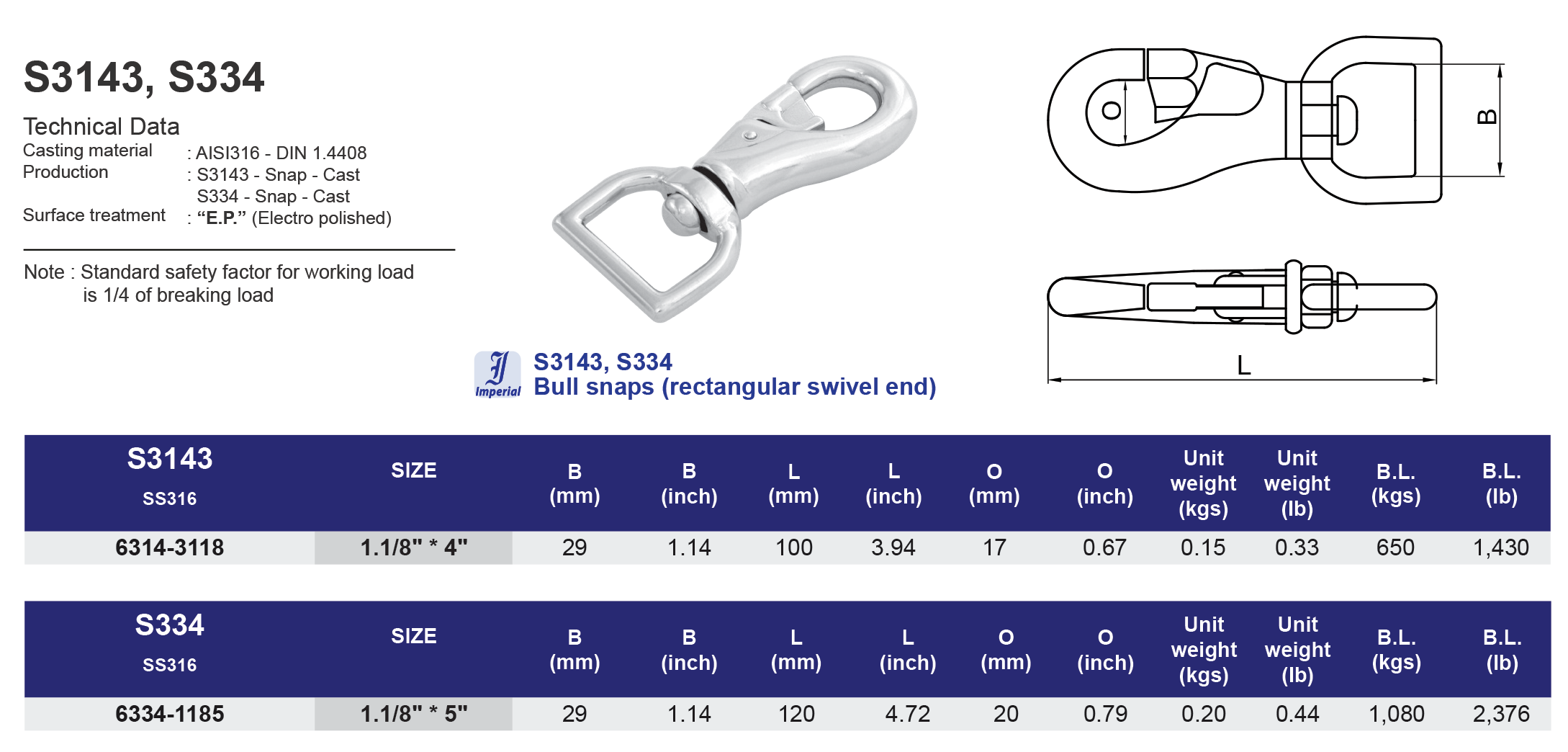

Model
S3143,S334

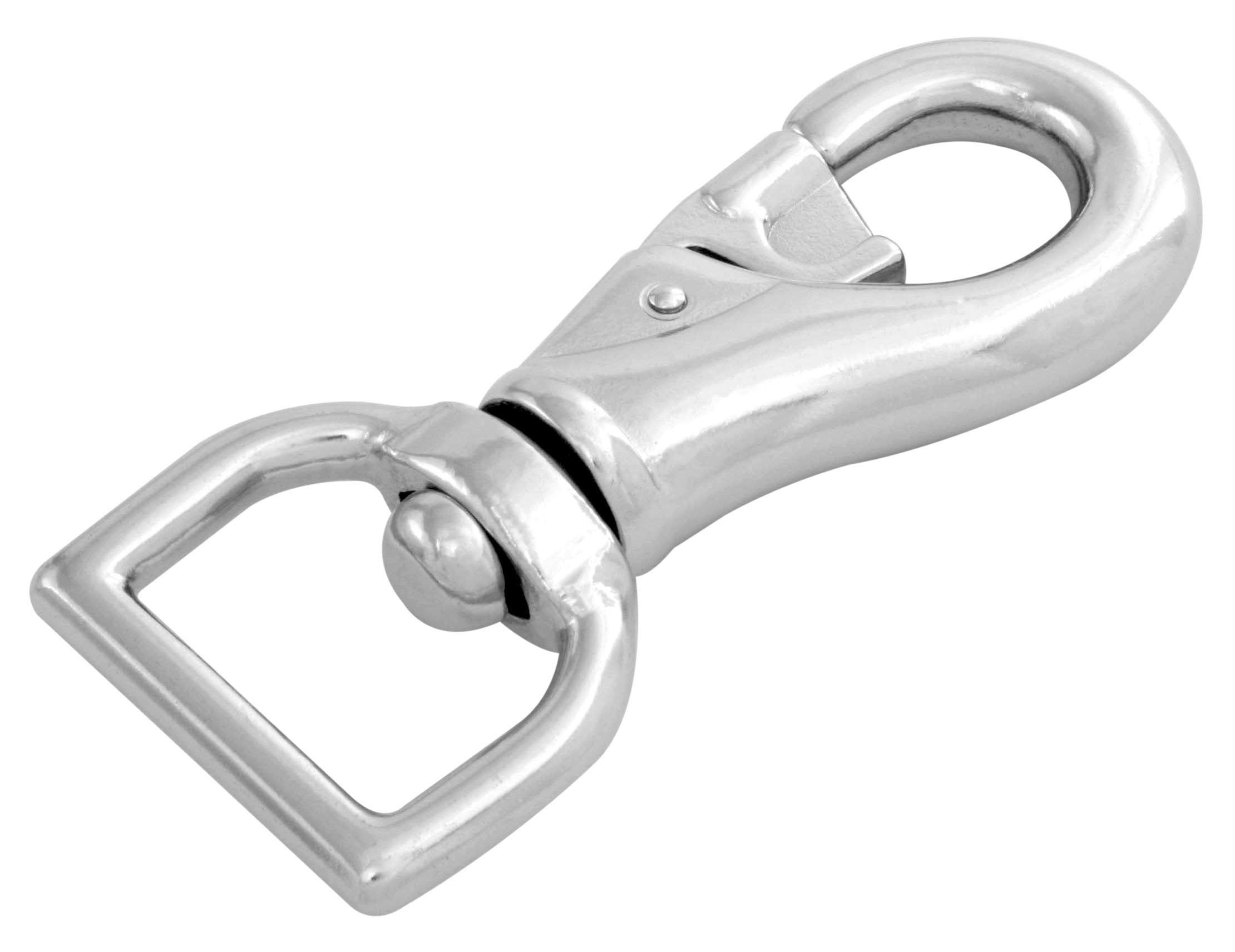

Bull snaps (rectangular swivel end)
316 ss
| SS316 | Size | B (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 6314-3118 | 1.1/8" * 4" | 29 | 100 | 17 | 0.15 | 650 |
| 6334-1185 | 1.1/8" * 5" | 29 | 120 | 20 | 0.20 | 1,080 |
| SS316 | Size | B (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 6314-3118 | 1.1/8" * 4" | 1.14 | 3.94 | 0.67 | 0.33 | 1,430 |
| 6334-1185 | 1.1/8" * 5" | 1.14 | 4.72 | 0.79 | 0.44 | 2,376 |
