Description

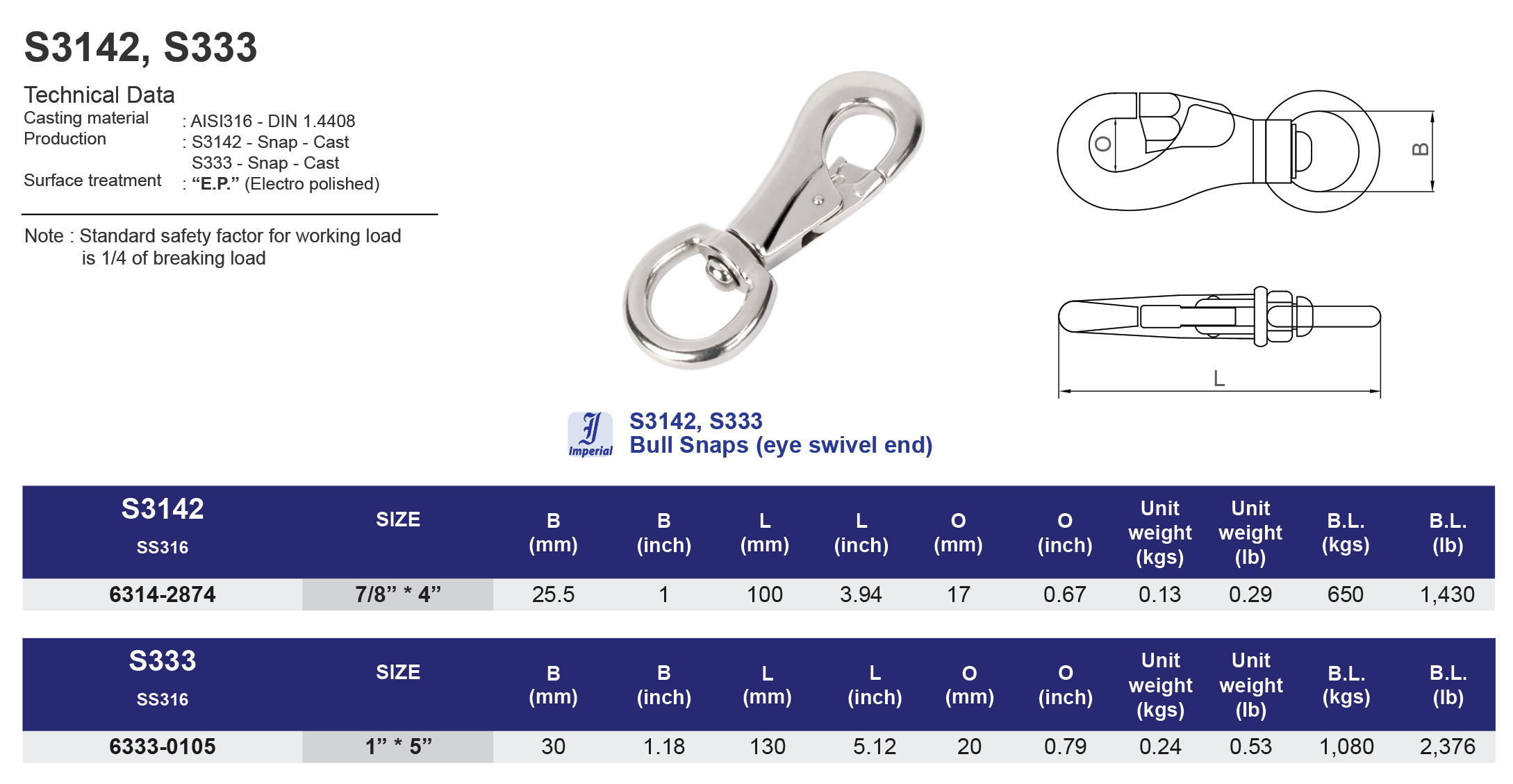

Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD
Model
S3142

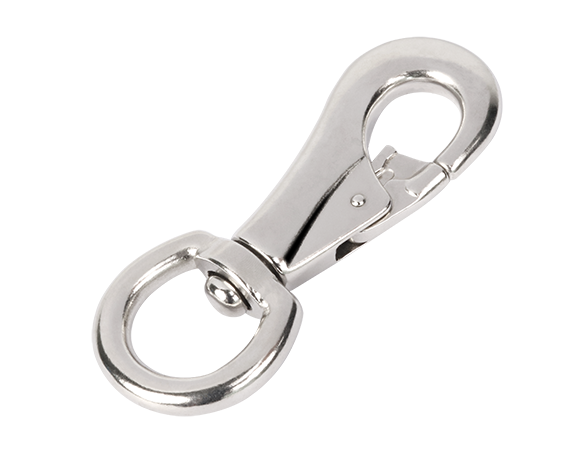

Bull Snaps (eye swivel end)
316 ss
| SS316 | Size | B (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 6314-2874 | 7/8" * 4" | 25.5 | 100 | 17 | 0.13 | 650 |
| 6333-0105 | 1" * 5" | 30 | 130 | 20 | 0.24 | 1,080 |
| SS316 | Size | B (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 6314-2874 | 7/8" * 4" | 1.00 | 3.94 | 0.67 | 0.29 | 1,430 |
| 6333-0105 | 1" * 5" | 1.18 | 5.12 | 0.79 | 0.53 | 2,376 |
