S3141NL/B Mame-block (nylon sheave) - 304 (CLEARANCE SALE)

SKU: 43141550

Size: 50mm (Min 25pcs)
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Casting Material: AISI304 - DIN 1.4308
Stamping Material: AISI304 - DIN 1.4301
Production: S3141NL / B - Swivel eye - Cast
Sheave - Cast
Block (sheet) - Stamped
Surface Treatment: “E.P.” (Electro polished)

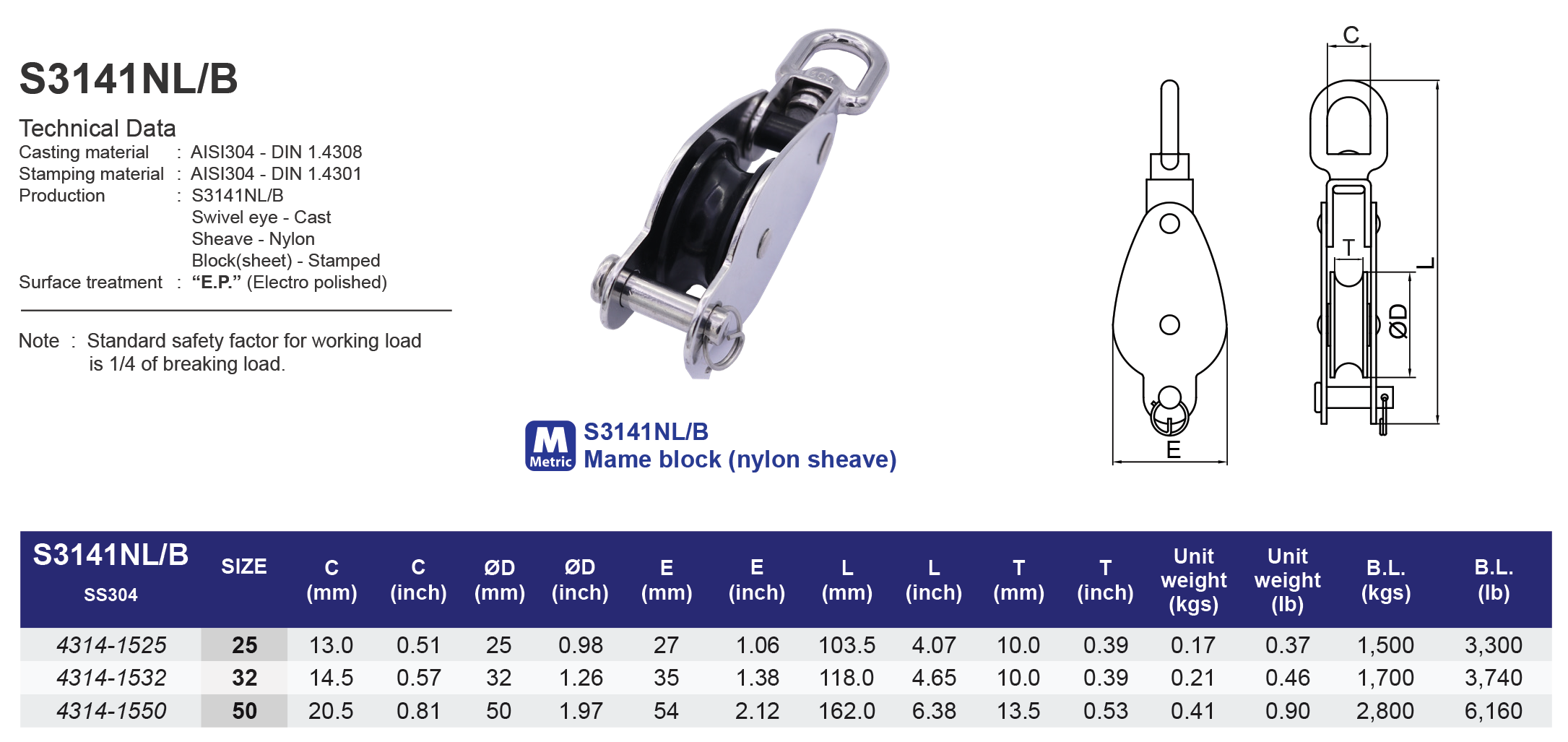

DATA SHEET DOWNLOAD

Model

S3141NL/B

Mame-block (nylon sheave)
304 ss

S3141NL_B drawing
S3141NL_B image
SS304SIZEC (mm)ØD (mm)E (mm)L (mm)T (mm)Unit weight (kgs)B.L. (kgs)
431415252513.02530103.510.00.171,500
431415323214.5323611810.00.211,700
431415505020.5505416213.50.412,800
SS304SIZEC (inch)ØD (inch)E (inch)L (inch)T (inch)Unit weight (lb)B.L. (lb)
431415251"0.510.981.184.070.390.373,300
431415321"-1/4"0.571.261.414.650.390.463,740
431415502"0.811.972.126.380.530.906,160
