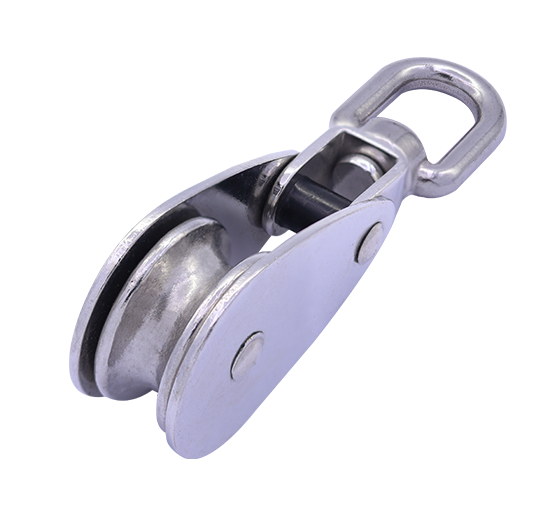

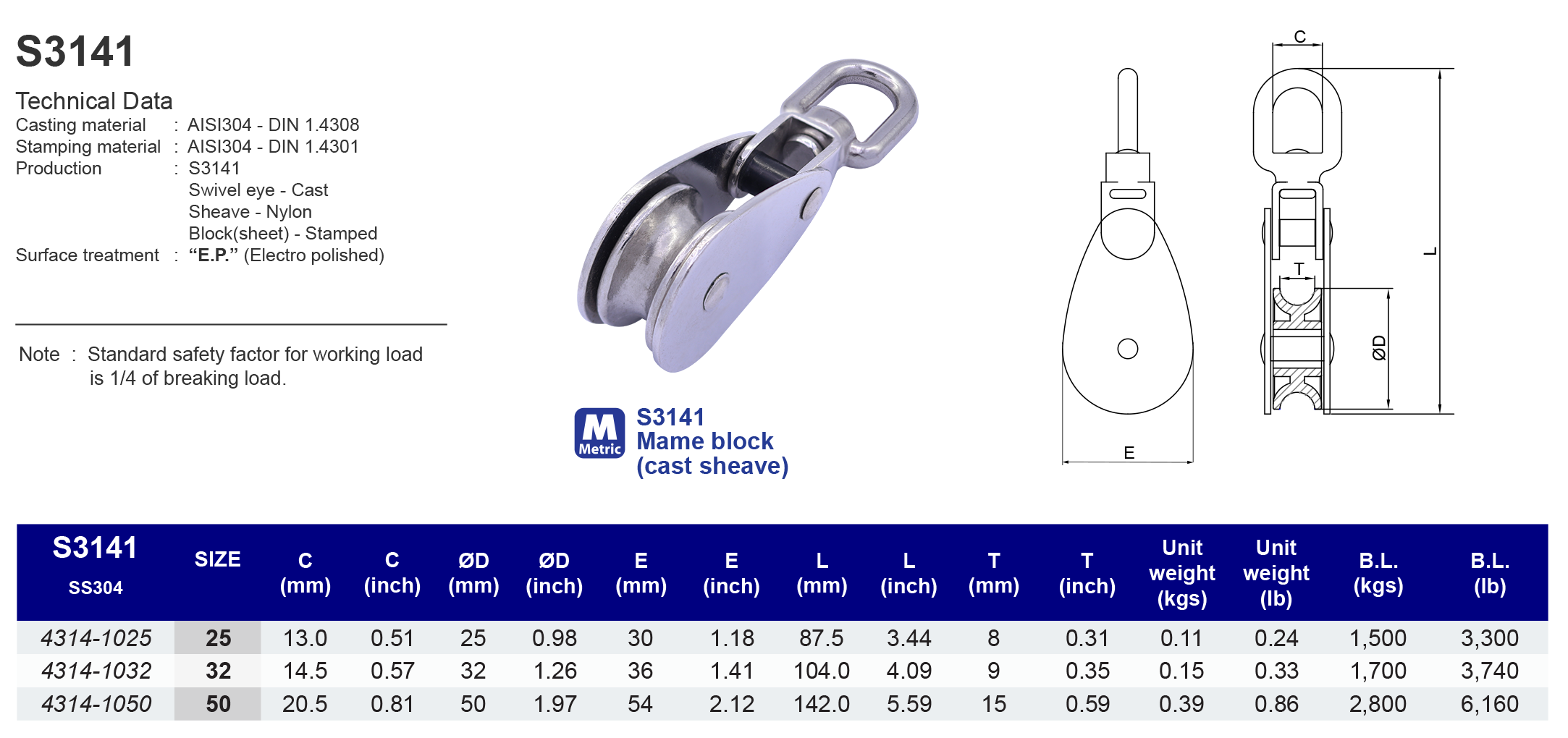

S3141 Mame block (cast sheave)

Technical Data:
Casting Material: AISI304 - DIN 1.4308
Stamping Material: AISI304 - DIN 1.4301
Production: S3141 - Swivel eye - Cast
                                Sheave - Cast
                                Block (sheet) - Stamped
Surface Treatment: “E.P.” (Electro polished)

Note : Standard safety factor for working load
is 1/4 of breaking load.
