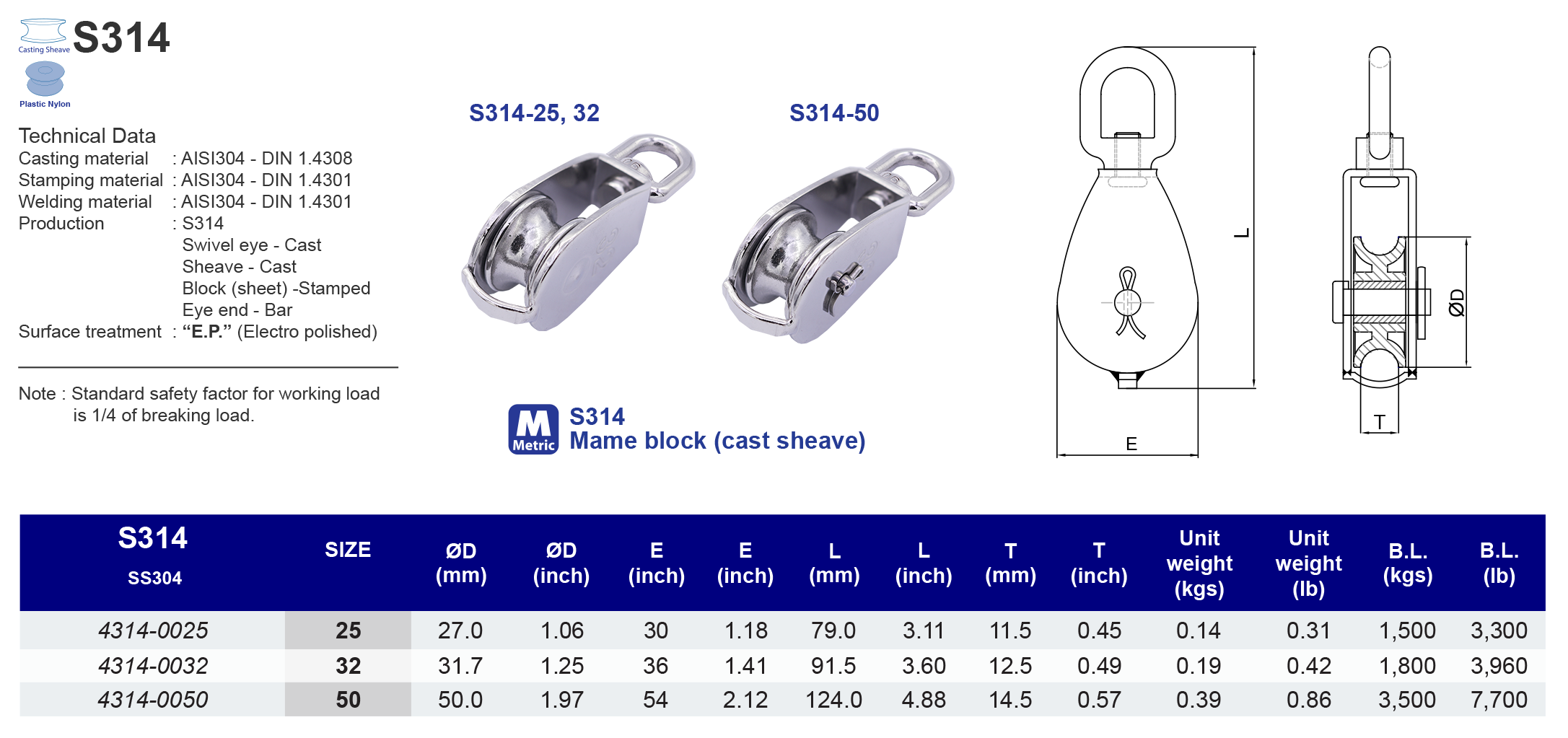

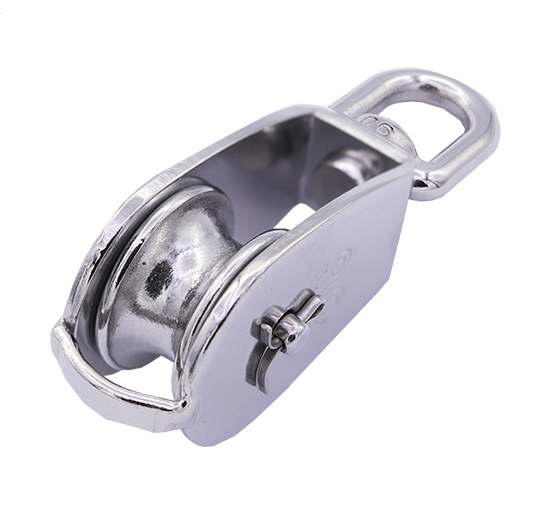

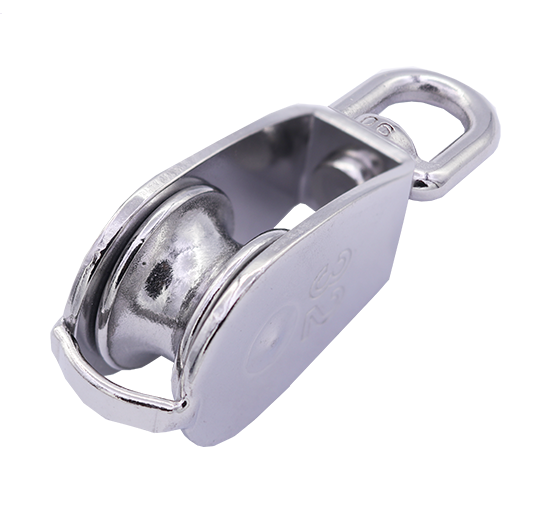

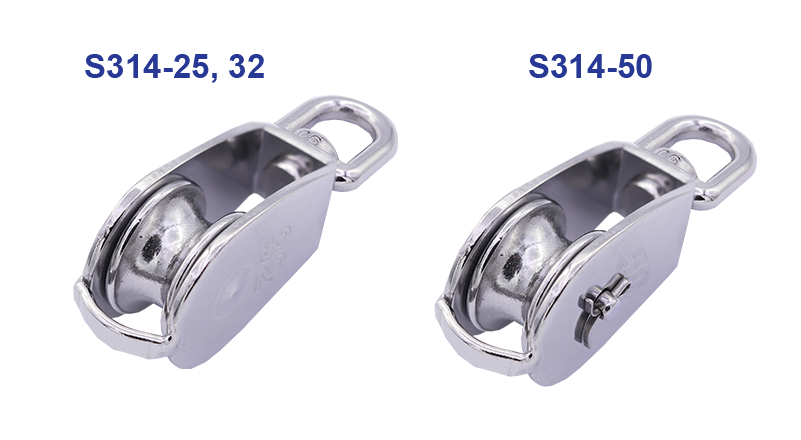

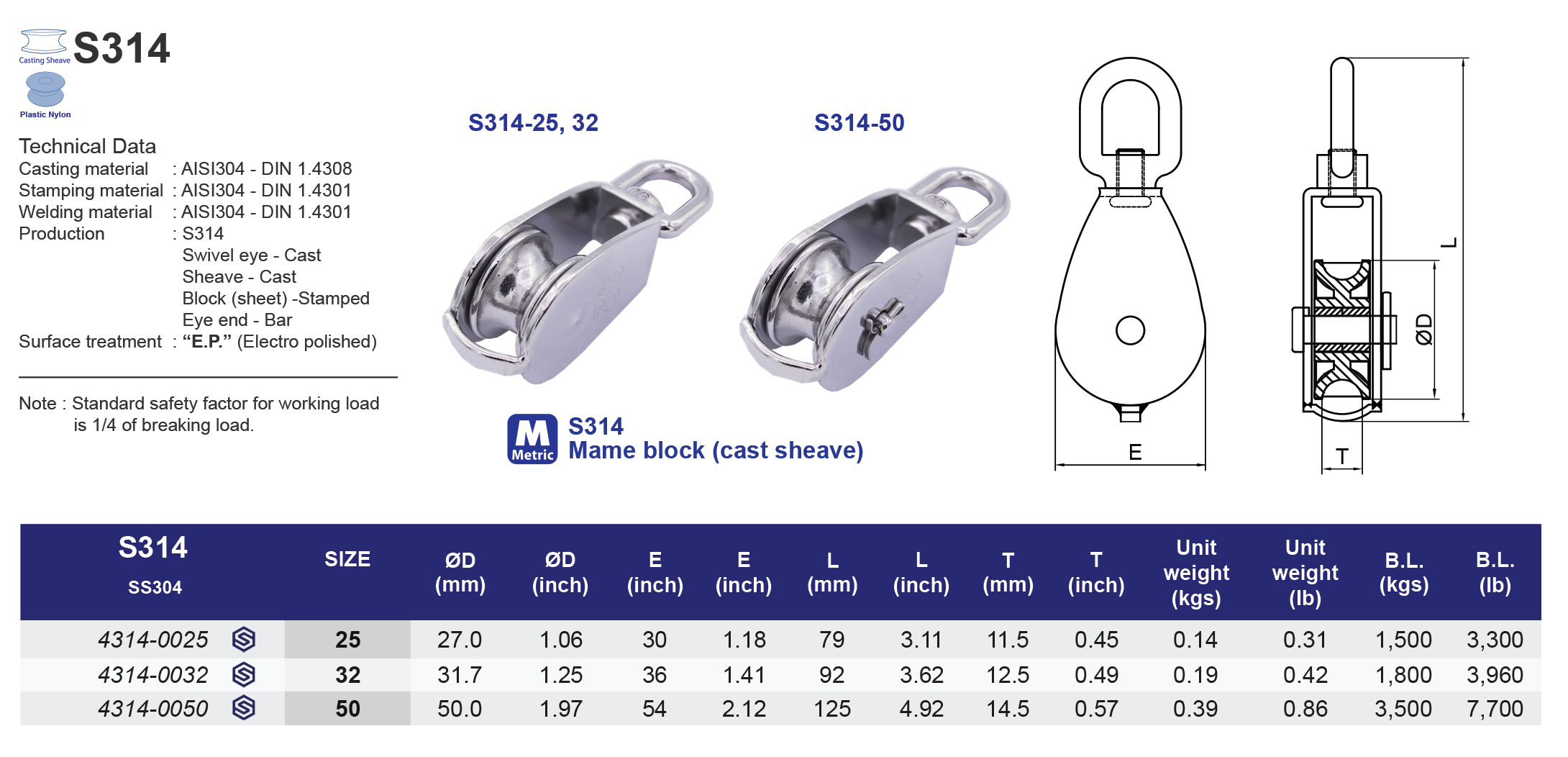

S314 Mame block (cast sheave)

S314 Mame block (cast sheave)

Technical Data:
Casting Material: AISI304 - DIN 1.4308
Stamping Material: AISI304 - DIN 1.4301
Welding Material: AISI304 - DIN 1.4301
Production: S314 - Swivel eye - Cast
Sheave - Cast
Block (sheet) - Stamped
Eye end - Bar
Surface Treatment:“E.P.” (Electro polished)

Note : Standard safety factor for working load
is 1/4 of breaking load.

DATA SHEET DOWNLOAD
