Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Forging Material:
AISI304 - DIN 1.4301
Production:
S313 - E1 - Swivel eye - Cast
Sheave - Cast
Block (sheet) - Stamped
Surface Treatment:
“E.P.” (Electro polished)
Model
S313-E1

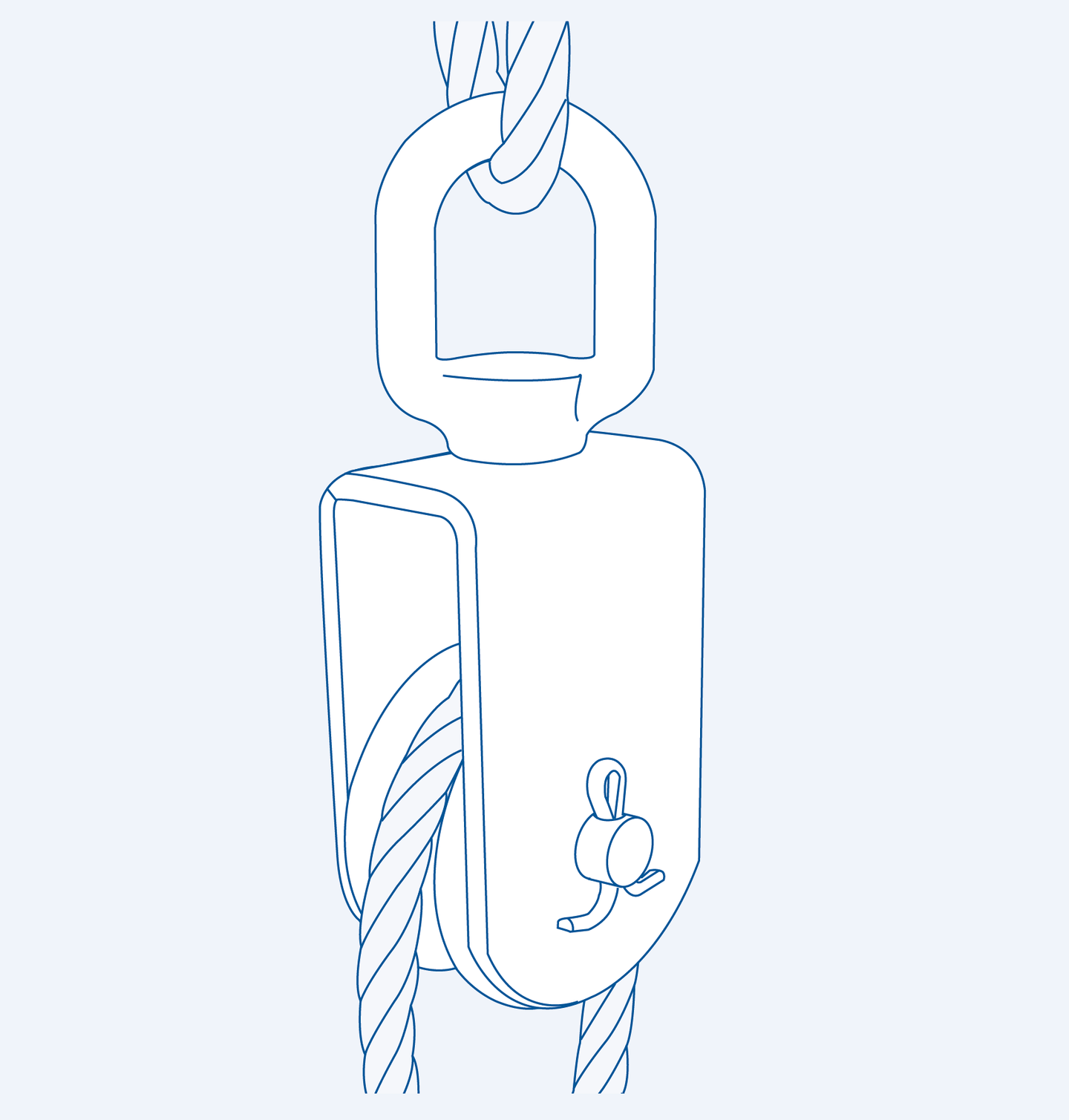

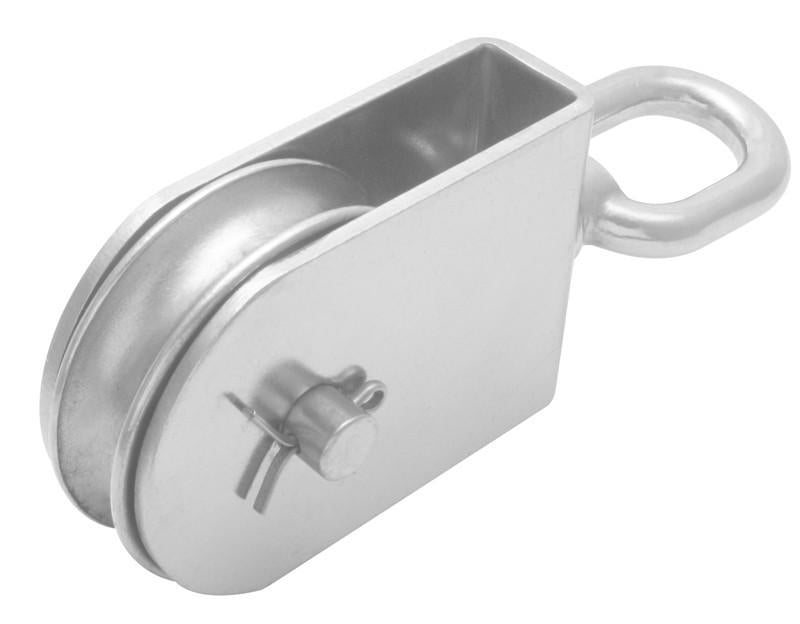

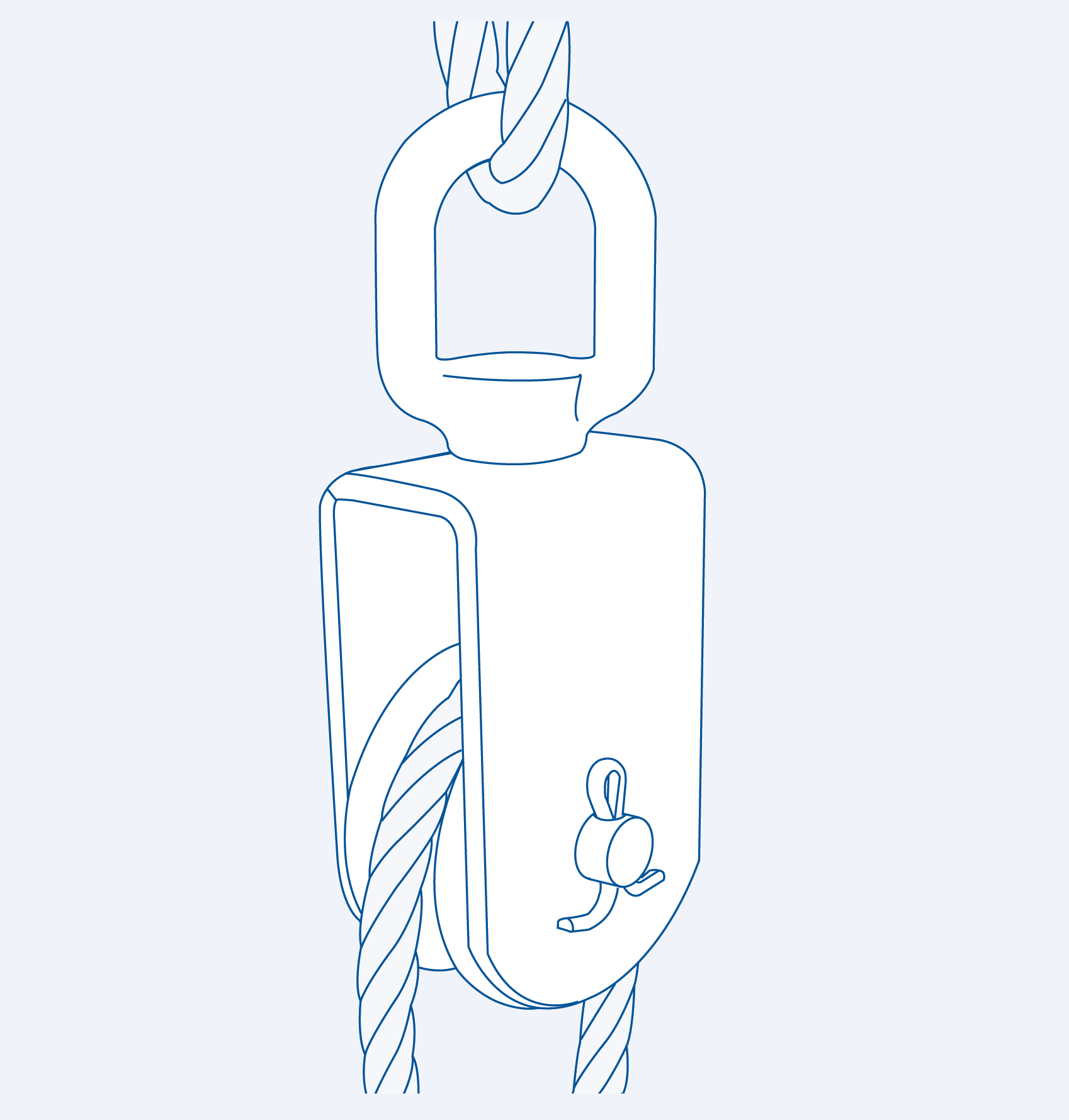

Taruma block (cast sheave with brass bushing)
304 ss
| SS304 | SIZE | C (mm) | ØD (mm) | E (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 43133050 | 50 | 20.5 | 50 | 45 | 124 | 25 | 0.42 | 3,500 |
| 43133075 | 75 | 24 | 75 | 70 | 170 | 22 | 0.91 | 4,000 |
| 43133100 | 100 | 24 | 100 | 90 | 206 | 27 | 1.55 | 5,500 |
| SS304 | SIZE | C (inch) | ØD (inch) | E (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 43133050 | 2" | 0.81 | 1.96 | 1.77 | 4.88 | 0.98 | 0.92 | 7,700 |
| 43133075 | 3" | 0.94 | 2.95 | 2.76 | 6.69 | 0.87 | 2.00 | 8,800 |
| 43133100 | 4" | 0.94 | 3.93 | 3.54 | 8.11 | 1.06 | 3.41 | 12,100 |
