Description

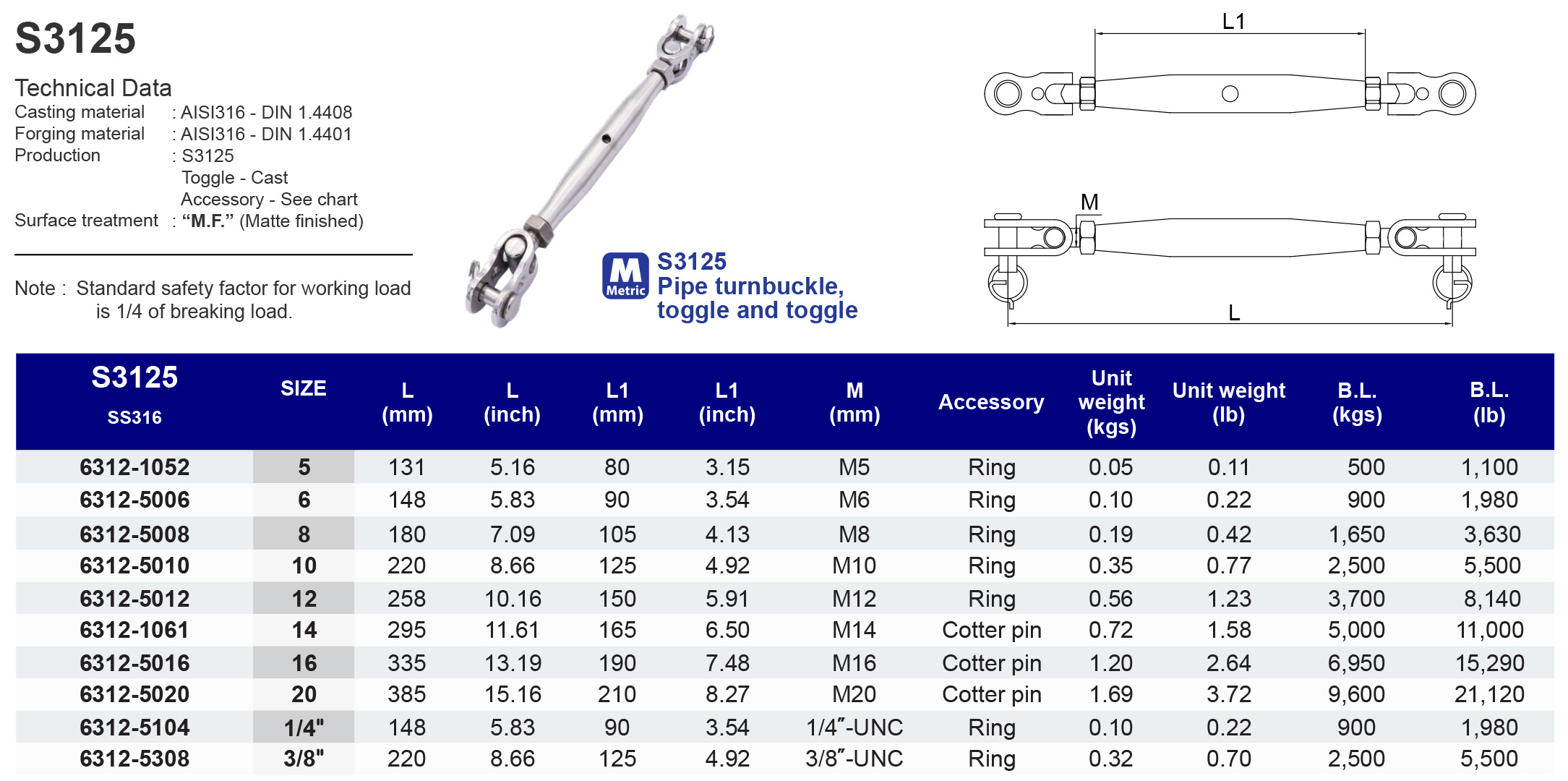

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S3125 - Toggle - Cast
Accessory - See Chart
Surface Treatment: “M.F.” (Matte finished) Note : Standard safety factor for working load
is 1/4 of breaking load.
Model
S3125

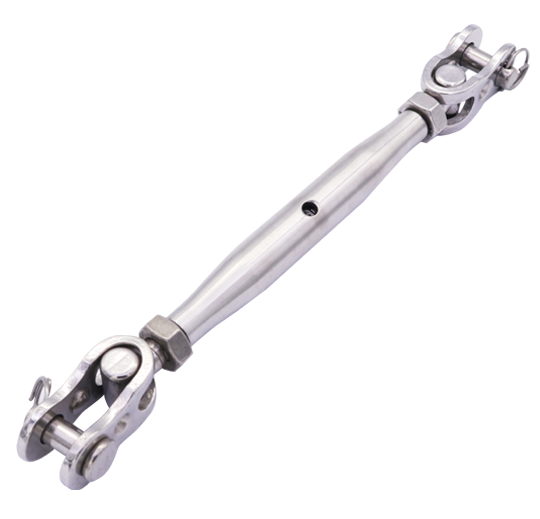

Pipe turnbuckle, toggle and toggle
316 ss
| SS316 | Size | L (mm) | L1 (mm) | M (mm) | Accessory | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63121052 | 5 | 131 | 80 | M5 | Ring | 0.05 | 500 |
| 63125006 | 6 | 148 | 90 | M6 | Ring | 0.10 | 900 |
| 63125008 | 8 | 180 | 105 | M8 | Ring | 0.19 | 1,650 |
| 63125010 | 10 | 220 | 125 | M10 | Ring | 0.35 | 2,500 |
| 63125012 | 12 | 258 | 150 | M12 | Ring | 0.56 | 3,700 |
| 63121061 | 14 | 295 | 165 | M14 | Cotter pin | 0.72 | 5,000 |
| 63125016 | 16 | 335 | 190 | M16 | Cotter pin | 1.20 | 6,950 |
| 63125020 | 20 | 385 | 210 | M20 | Cotter pin | 1.69 | 9,600 |
| SS316 | Size | L (inch) | L1 (inch) | M (inch) | Accessory | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63125104 | 1/4" | 5.83 | 3.54 | 1/4"-20UNC | Cotter pin | 0.22 | 1,980 |
| 63125308 | 3/8" | 8.66 | 4.92 | 3/8"-16UNC | Cotter pin | 0.77 | 5,500 |
