Description
Technical Data:
Casting Material:
AISI316 - DIN 1.4408
Forging Material:
AISI316 - DIN 1.4401
Production:
S3125 / 7 - Eye - Forged
Toggle - Cast
Accessory - See Chart
Surface Treatment:
Matte finished / Passivated
Model
S3125-7

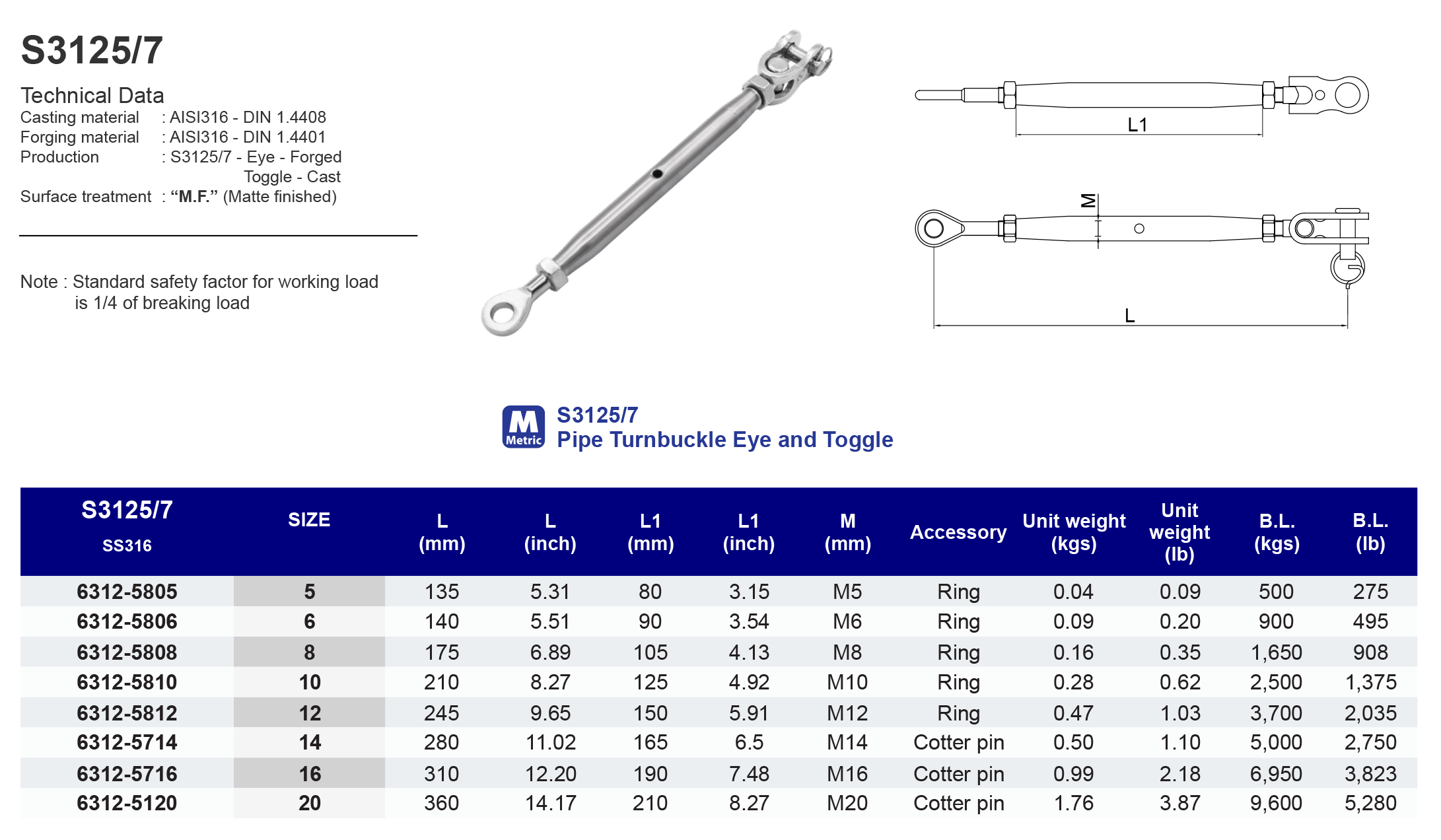

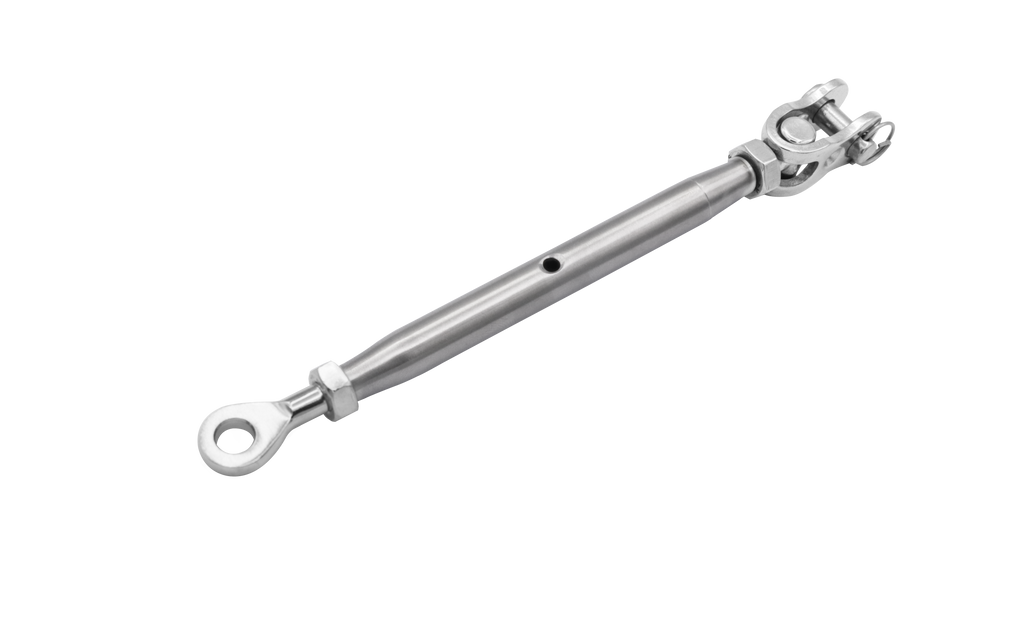

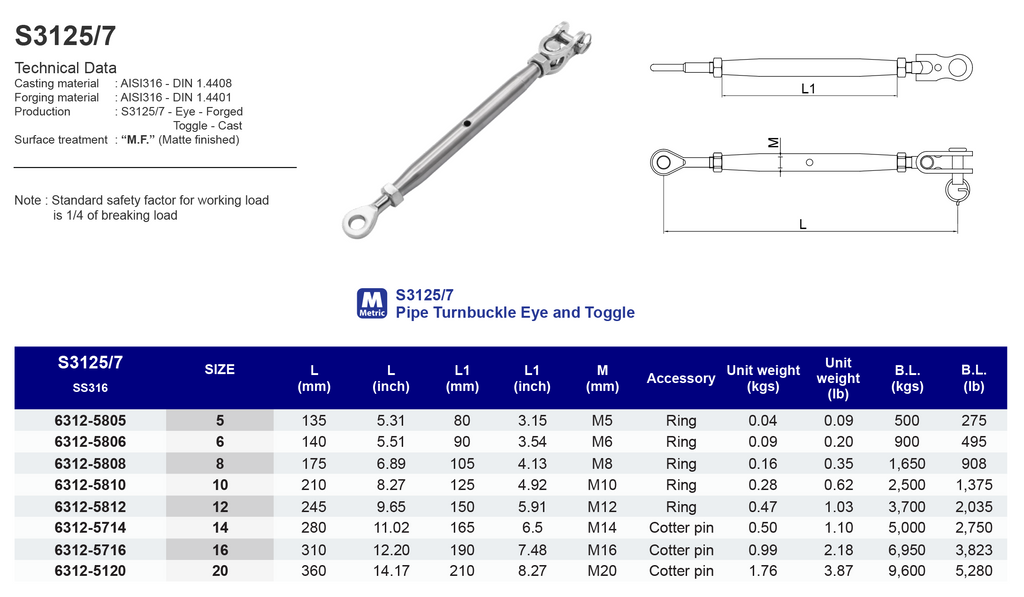

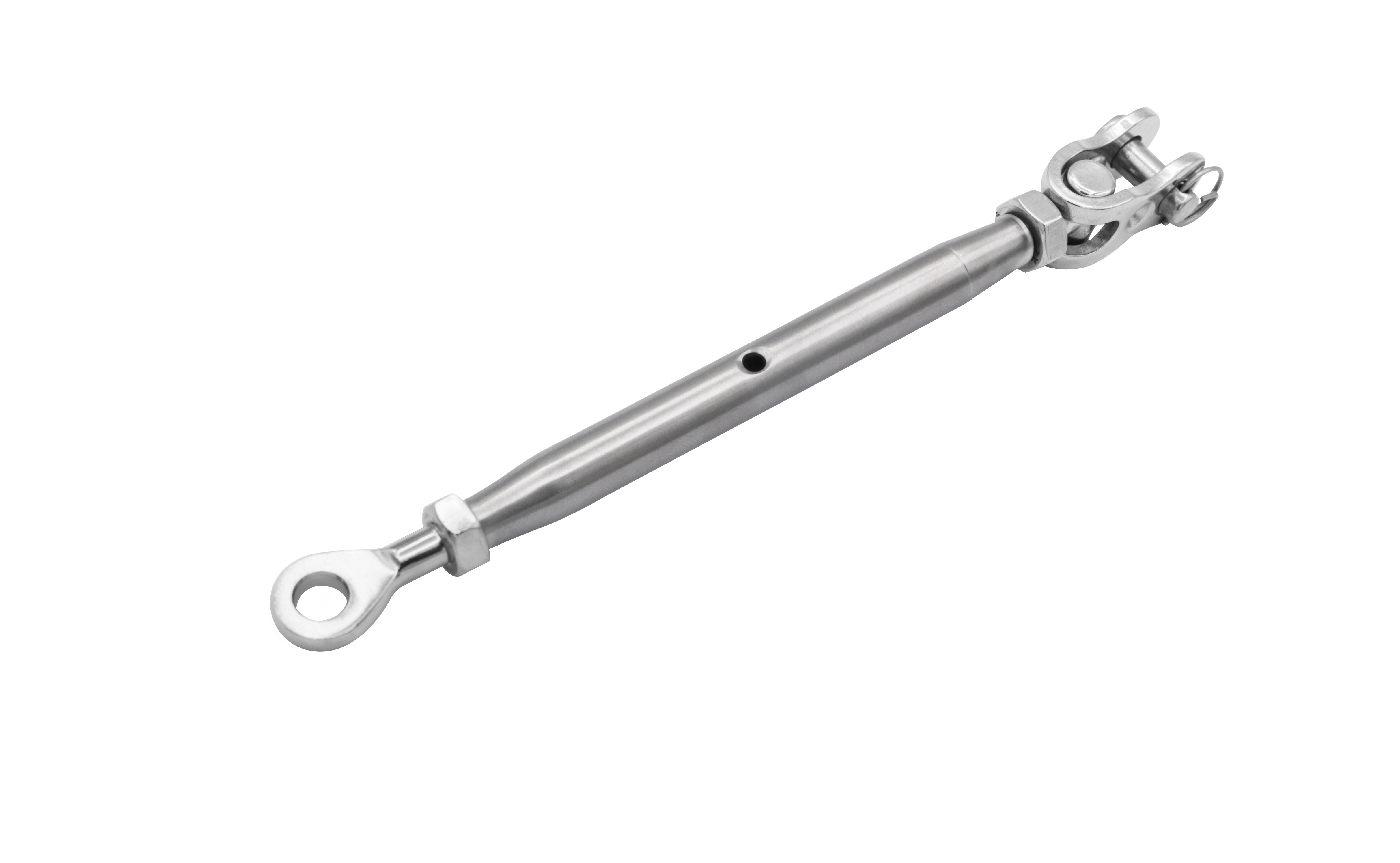

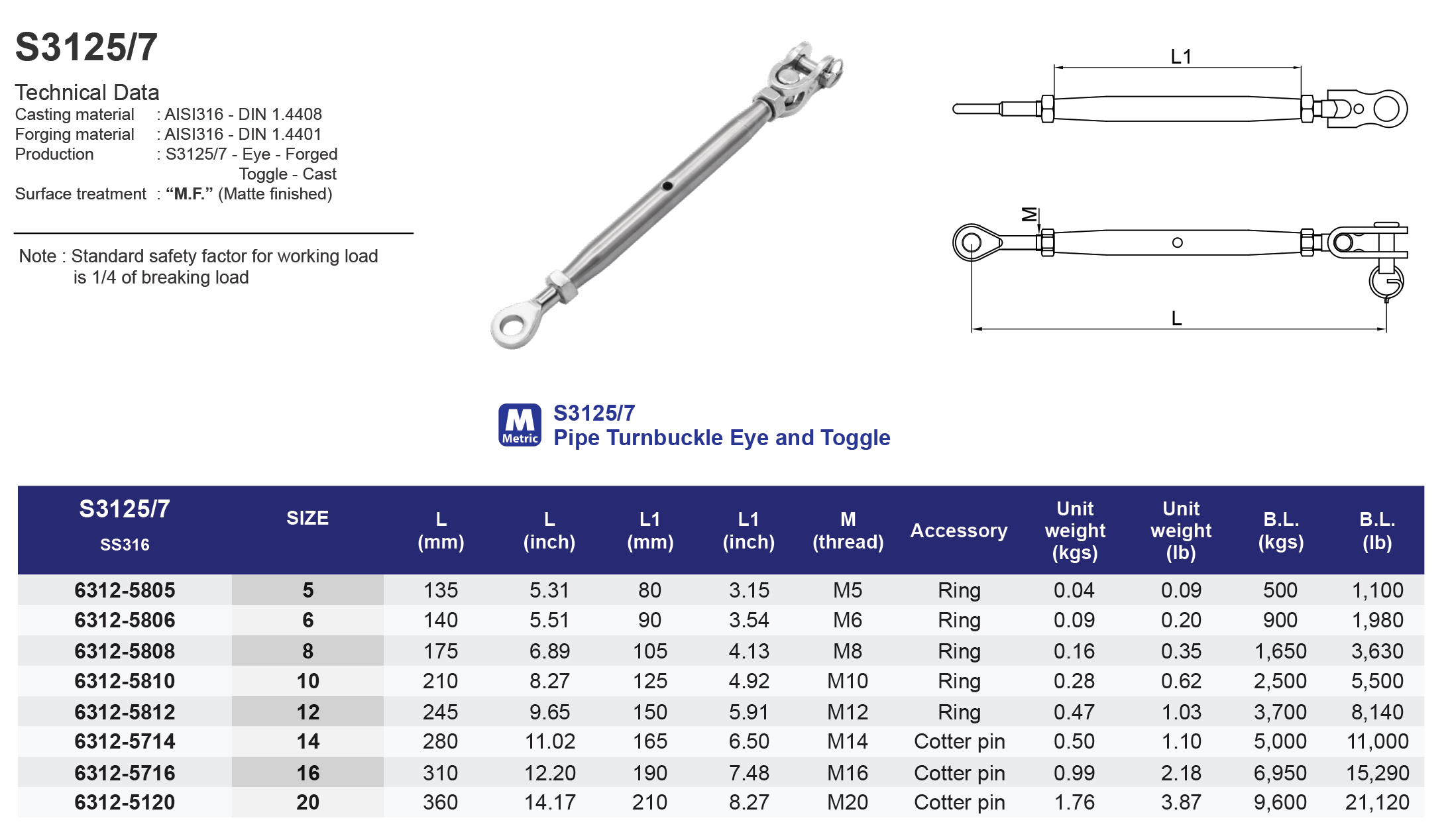

Pipe Turnbuckle Eye and Toggle
316 ss
| SS316 | Size | L(mm) | L1(mm) | M(thread) | Accessory | Unit weight (kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|---|
| 63125805 | 5 | 135 | 80 | M5 | Ring | 0.04 | 500 |
| 63125806 | 6 | 140 | 90 | M6 | Ring | 0.09 | 900 |
| 63125808 | 8 | 175 | 105 | M8 | Ring | 0.16 | 1,650 |
| 63125810 | 10 | 210 | 125 | M10 | Ring | 0.28 | 2,500 |
| 63125812 | 12 | 245 | 150 | M12 | Ring | 0.47 | 3,700 |
| 63125714 | 14 | 280 | 165 | M14 | Cotter pin | 0.50 | 5,000 |
| 63125716 | 16 | 310 | 190 | M16 | Cotter pin | 0.99 | 6,950 |
| 63125120 | 20 | 360 | 210 | M20 | Cotter pin | 1.76 | 9,600 |
| SS316 | Size | L(inch) | L1(inch) | M(thread) | Accessory | Unit weight (Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|---|
| 63125805 | 5 | 5.31 | 3.15 | M5 | Ring | 0.09 | 1,100 |
| 63125806 | 6 | 5.51 | 3.54 | M6 | Ring | 0.20 | 1,980 |
| 63125808 | 8 | 6.89 | 4.13 | M8 | Ring | 0.35 | 3,630 |
| 63125810 | 10 | 8.27 | 4.92 | M10 | Ring | 0.62 | 5,500 |
| 63125812 | 12 | 9.65 | 5.91 | M12 | Ring | 1.03 | 8,140 |
| 63125714 | 14 | 11.02 | 6.50 | M14 | Cotter pin | 1.10 | 11,000 |
| 63125716 | 16 | 12.20 | 7.48 | M16 | Cotter pin | 2.18 | 15,290 |
| 63125120 | 20 | 14.17 | 8.27 | M20 | Cotter pin | 3.87 | 21,120 |
